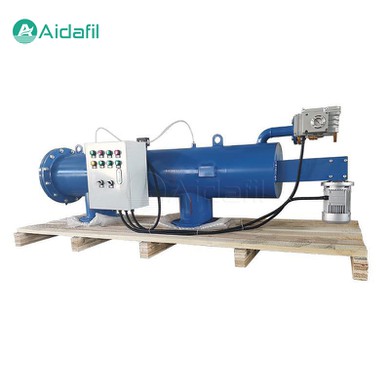

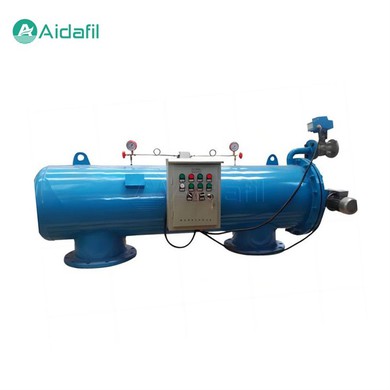

Horizontal Placed Self-Cleaning Filter

The horizontal placed self-cleaning filter is mainly composed of a shell, a filter screen, a drive device, a control system and other parts. The shell adopts a horizontal design with a compact structure and a small footprint. The filter screen is the core component of the filter. It is made of stainless steel or other corrosion-resistant materials and has good filtration performance and corrosion resistance. The drive device is used to drive the rotation and cleaning action of the filter screen, and the control system is responsible for controlling the operation and cleaning cycle of the filter.

The horizontal placed self-cleaning filter boasts an intelligent control system, which can automatically monitor the operation status of the filter. When it detects that the accumulated impurities on the filter screen reach a certain amount, the system will start the automatic cleaning program. During this process, the motor drive device inside the filter will drive the cleaning brush to move, and these cleaning elements will come into contact with the filter screen to remove the impurities attached to the filter screen. At the same time, the valve in the filter will automatically switch, and the dirt will be discharged to the sewage outlet, while the cleaned water will continue to flow to other parts of the system.

Highlights

1. The filter is designed with a right-angle structure, resulting in a large flow rate, making it suitable for traditional process layouts.

2. Electric drive, the system has strong pressure bearing capacity.

3. High-precision pressure difference control design, time control, and manual control cleaning.

4. Special filter unit structure design, sturdy and durable. The filtration precision is optional from 130 to 3500 microns, with a large filtration area and high dirt holding capacity. Users can customize it according to actual conditions.

5. Unique cleaning design achieves low load, low water head and uniform sewage discharge. Brush cleaning is a simple cleaning method, and the cleaning cycle is electronically monitored, which can realize automatic cleaning and sewage discharge.

6. Equipped with motor overload protection, which can effectively protect the motor.

7. Disassembly, installation and maintenance are simple and easy to operate.

8. Uninterrupted water supply during cleaning and sewage discharge. The cleaning time is short and the sewage discharge consumes less water.

9. The direction of the electric control box panel can be adjusted at will to meet user requirements. The control display interface has a user-friendly design and is very easy to operate, requiring no professional guidance.

10. The connection method with user pipelines is flange connection, and the flange adopts national standard flange, which has strong versatility.

Specifications

Features

1. High-efficiency filtration. The use of advanced filter screen design can effectively remove solid impurities from water and ensure the cleanliness of water quality.

2. Self-cleaning function. Automatically removes impurities from the filter screen, reducing manual maintenance workload and improving operating efficiency.

3. Energy saving and environmental protection. Using low-power drive devices and intelligent control systems to reduce energy consumption and operating costs.

4. Stable and reliable. Made of high-quality materials, with compact structure, strong impact resistance and long service life.

5. Easy to install and maintain. Horizontal design, small footprint, easy installation; at the same time, the filter structure is simple and easy to maintain.

Application field

The horizontal placed self-cleaning filter is widely used in various water treatment systems, such as feed water treatment, wastewater treatment, seawater desalination, boiler feed water treatment, cooling water treatment, etc. It can effectively remove suspended solids, colloids, microorganisms and other impurities in water to ensure the cleanliness and stability of water quality. At the same time, it can also be used in water treatment processes in food and beverage, medicine and health, electronic power and other industries.

Use and maintenance

When using a horizontal placed self-cleaning filter for water treatment, the following points should be taken into account:

1. Check the filter before installation to ensure that all components are intact.

2. Choose the appropriate filter material and mesh number according to actual needs.

3. During operation, the operating status and cleaning cycle of the filter should be checked regularly.

4. When cleaning, pay attention to safe operating procedures to avoid harm to personnel and equipment.

5. Regularly maintain the filter to ensure its normal operation and extend its service life.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
