Stable Filtration Quality Vertical Leaf Filter

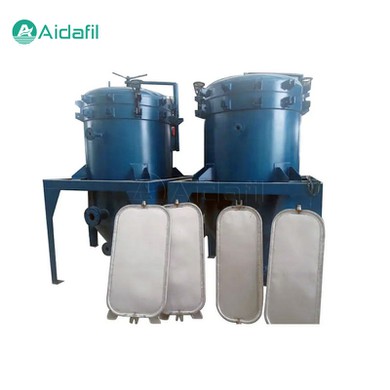

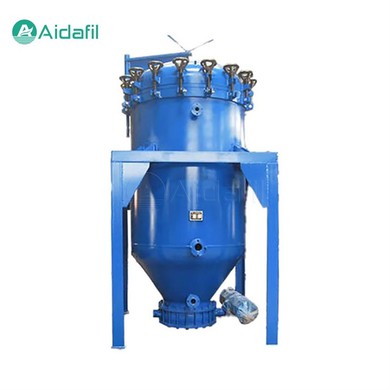

The Stable Filtration Quality Vertical Leaf Filter is composed of a closed cylinder made of stainless steel, which is equipped with a double-sided filter plate. This design not only guarantees the durability of the equipment, but also facilitates cleaning and maintenance. During the filtration process, the fluid material to be processed is introduced into the filter. Solid particles are trapped through tiny holes in the filter plate, while the supernatant is discharged through the filter plate.

Parameters

Working pressure: 0. ~ 0.4 Mpa

Operating temperature: ≤150 °C

Filter area: 4 ~ 80 m²

Main features

The main features of the Stable Filtration Quality Vertical Leaf Filter include:

1. High efficiency and energy-saving characteristics

Thanks to the use of advanced filtration technology, the vertical leaf filter can filter a large amount of materials in a short time, thus improving production efficiency and reducing energy consumption.

2. Fully automatic airtight operation

The leaf filter operates in a fully enclosed state, effectively preventing environmental pollution and material loss, while also ensuring the safety of the operator.

3. Vibration slag removal function

Mechanical vibration is used to achieve automatic slag removal, reducing the labor intensity of workers and making the filtration process more continuous and stable.

4. No filter cloth or filter paper is required

Traditional filter cloth or filter paper is not used during the filtration process, which greatly reduces the filtration cost and avoids cross-contamination problems caused by filter media.

5. Pneumatic valve slag discharge

By controlling the slag discharge process through pneumatic valves, the need for manual intervention is further reduced, and the automation level of operation is improved.

6. Wide range of applications

Vertical leaf filters are suitable for a variety of industries, such as petroleum, coatings, pigments, food, beverages, pharmaceuticals, oils, and chemicals, and can handle various types of fluid materials, including but not limited to decolorization of liquids.

7. Compact structure and small footprint

The vertical design of the leaf filter is compact and takes up little space, making it suitable for industrial environments with limited space.

8. Good filtration effect and low loss

The vertical leaf filter has less loss during the filtration process, and the filtration effect is remarkable, which can effectively remove fine particles and impurities in the liquid.

9. Long service life of the filter plate

The filter plate of the leaf filter is designed rationally and do not require frequent replacement, thus reducing maintenance costs and downtime and improving production efficiency.

10. Multiple parallel use can achieve continuous production

By using two or more vertical leaf filters in parallel, continuous production can be achieved to meet the needs of large-scale industrial production.

Working principle and process

The working principle and process of the Stable Filtration Quality Vertical Leaf Filter are as follows:

1. Feed stage. The material to be filtered enters the filter through the feed port and comes into contact with the filter plate.

2. Filtration stage. Under the action of the filter plate, the solid particles in the material are trapped, while the supernatant flows through the gap between the filter plate to the outlet end.

3. Slag removal stage. When the solid particles on the filter plate accumulate to a certain extent, the filtration opportunity starts the vibration slag removal mechanism, and the accumulated residue is vibrated into the collection device.

4. Cleaning and recovery stage. After filtration is completed, the filter can be automatically cleaned to remove residues from the filter plate and prepare for the next filtration cycle.

Application

The Stable Filtration Quality Vertical Leaf Filter has a very wide range of uses. It can be applied to the oil industry, such as the filtration and decolorization of machine-pressed crude oil such as cottonseed, rapeseed, castor, etc., to solve the problems that are difficult to solve by traditional filtration methods. In addition, in the field of petrochemical industry, the vertical leaf filter can be used for the filtration of diesel oil, lubricating oil, paraffin wax and mineral oil. In the beverage industry, it can be used for the filtration of fruit juices, beer and milk. In organic chemical products, it can handle the filtration of organic acids, alcohols, alters and benzene. The filtration of inorganic chemical products is not a problem, such as the filtration of fluorite and bromine water. The filtration of vinegar, sugar juice, sweet water and starch in the food industry is equally applicable. Even in the pharmaceutical industry, vertical leaf filters can also play their role in the filtration of vitamins, hydrogen peroxide, and formalin.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
