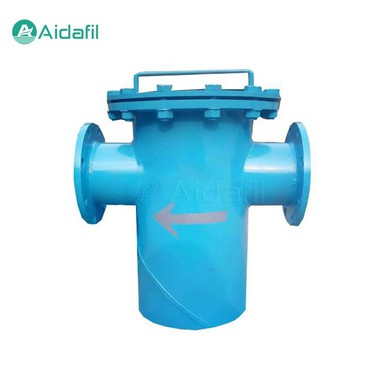

High Pressure Resistance Basket Filter

The high pressure resistance basket filter represents a high-efficiency filter device widely used in industrial applications, especially in oil or other liquid piping systems, to remove impurities and keep fluids clean. This filter is widely recognized for its unique structure and high-efficiency filtration ability.

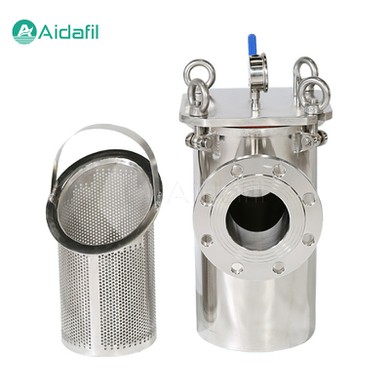

The high pressure resistance basket filter is mainly composed of nozzles, cylinders, filter baskets, flanges, flange covers and fasteners. Its core part is the filter basket, which is a structure similar to a basket, which is equipped with filters of different specifications to capture solid particles in the fluid. The design of the filter basket makes the filtration area greatly increased. Usually, the filter hole area is 2 to 3 times that of the diameter pipe. This design not only improves the filtration efficiency, but also reduces the pressure loss.

The working principle of the high pressure resistance basket filter is based on the settling of solid particles in the fluid and the physical obstacles of the filter medium. When the fluid containing impurities enters the filter, it first flows into the equipment through the inlet, and then the fluid passes through the filter basket. During this process, the larger solid particles are trapped by the filter basket, while the cleaner fluid is discharged from the top outlet of the filter. This design makes full use of the pressure and inertia of the fluid, allowing the basket filter to complete the filtration process without additional energy.

Parameters

Advantages

1. Simple structure

The structure of the basket filter is relatively simple, making it easy to manufacture and install. At the same time, its maintenance and cleaning are also more convenient, which can reduce the cost of use.

2. High filtration accuracy

The filter basket aperture of the basket filter can be selected according to actual needs, so as to achieve different precision filtration. In addition, because the filter basket is made of special materials, it has good corrosion resistance and wear resistance, which can ensure the stability of the filtration effect.

3. Strong adaptability

The basket filter can handle various types of fluids, including liquids, gases, and vapors. At the same time, it can also adapt to different working environments and temperature conditions, with strong versatility and applicability.

4. Energy saving and environmental protection

The basket filter does not generate noise and vibration during operation, meeting environmental protection requirements. In addition, due to its high filtration efficiency, it can reduce fluid waste and pollution, which is conducive to saving energy and resources.

Application field

1. Petrochemical industry

In the petrochemical production process, strict quality control of raw materials, intermediate products and final products is required. Basket filters can be used for the purification of oil, natural gas, lubricating oil and other fluids to ensure product quality and safe production.

2. Pharmaceutical industry

In the pharmaceutical production process, the quality of medicines is directly related to the safety of patients. Basket filters can be used to purify raw materials, solvents and products in the pharmaceutical production process to ensure the purity and effectiveness of medicines.

3. Food and beverage industry

The food and beverage industry has very strict requirements on product hygiene and quality. Basket filters can be used to purify water sources, raw materials and finished products in the food and beverage production process to ensure product hygiene, safety and taste quality.

4. Water treatment industry

The water treatment industry involves drinking water, industrial water and wastewater treatment. Basket filters can be used for raw water purification, wastewater treatment and reuse in the water treatment process to improve the utilization efficiency of water resources and the safety level of water quality.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
