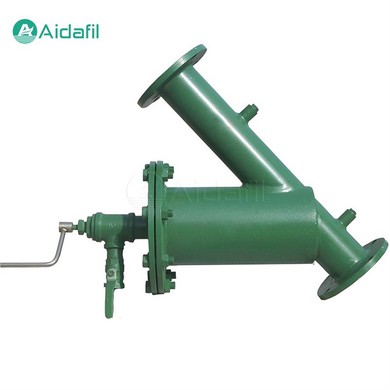

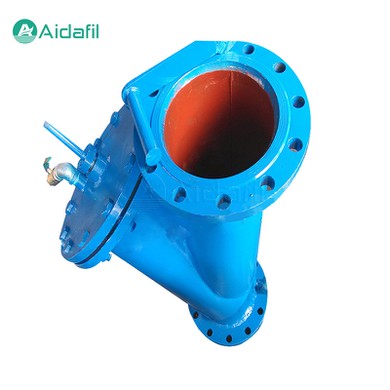

Y-Type Manual Brush Filter

The Y-type manual brush filter, as the name suggests, derives its name from its unique Y-shaped design. This design is not only beautiful and elegant, but also plays a key role in the fluid filtration process. The Y-shaped structure divides the fluid into two branches, and a filter screen is set at the confluence to achieve the interception of impurities through the physical barrier effect.

The filter's design is based on the concept of "simple and efficient", and the built-in brush and brush holder combination can automatically clean the filter without interrupting the operation of the system. This design makes maintenance work easy and fast, which greatly saves maintenance costs and time.

Structure

1. Main structure

The main body of the filter is composed of a cast shell, a shell cover, a cleaning brush holder group with a handle, a sewage valve and a pressure gauge. Among them, the cast shell is made of high-quality carbon steel material to ensure the strength and corrosion resistance of the filter. The shell cover is closely connected with the shell to form a closed filter space.

2. Filter screen

The filter screen is the core component of the filter, which directly determines the quality of the filtering effect. The hand brush type Y-type pipe filter adopts a wedge-shaped screen as the filter screen. This screen is welded by wedge-shaped strips and vertically arranged support rods to form a continuous and uniform strip-shaped gap. The purpose of filtration is achieved by controlling the gap interval. Compared with the conventional filter screen composed of filter cartridge and silk screen, the wedge-shaped screen has the advantages of good blocking prevention effect, easy cleaning, higher strength and longer service life.

3. Cleaning brush holder group

The cleaning brush holder group is a unique feature of the Y-type manual brush filter. It consists of a cleaning brush holder with a rotating shaft, passes through the middle shell cover of the shell, and is installed inside the filter element composed of a filter cartridge and a filter screen. The brush is closely attached to the filter screen. When it is necessary to clean the impurities and sewage on the filter screen, just shake the handle clockwise to drive the rotating shaft and the brush to rotate to brush the impurities on the filter screen.

Technical parameters

Operation and maintenance

The operation of the Y-type manual brush filter is very simple. When the pressure difference between the inlet and outlet reaches 0.04MPa, it is necessary to open the sewage valve and gently turn the handle manually to brush the filter. During the brushing process, the water flow is not interrupted, and there is no need to stop and disassemble the filter to clean the filter. The entire sewage process system can operate normally without downtime. In addition, the cleaning and maintenance of the filter is also very convenient, just clean the filter and clean the brush holder group regularly.

Advantages

The Y-type manual brush filter has the following advantages:

1. Simple structure

The structure of the Y-type manual brush filter is very simple, eliminating the need for complex installation and maintenance processes.

2. Easy to operate

The operation of the Y-type manual brush filter is very convenient, and the filter cylinder can be cleaned by manually shaking the brush.

3. Efficient filtration

The Y-type manual brush filter can effectively remove suspended solids and impurities from water, resulting in clean water quality.

4. Durable

The material selection of the Y-type manual brush filter is very strict, which can resist corrosion and wear and prolong the service life of the equipment.

Application

The Y-type manual brush filter is widely used in various industrial fields, especially in water treatment, chemical, petroleum and other industries. In these industries, impurities and particles in the fluid have a serious impact on the normal operation of equipment and pipelines. By using hand brush Y-type pipe filters, these impurities and particles can be effectively intercepted to ensure the normal operation of equipment and pipelines.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
