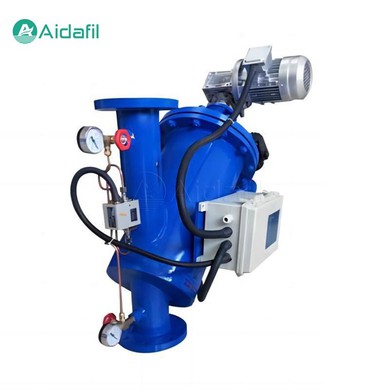

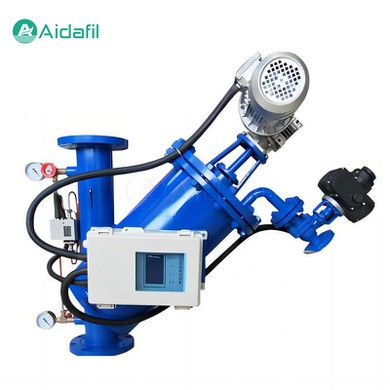

Small-Footprint Y-Shaped Self-Cleaning Filter

The Small-Footprint Y-Shaped Self-Cleaning Filter is a kind of high-efficiency filtration equipment. It is mainly used for filtration and purification work in liquid pipeline. The filter adopts advanced self-cleaning technology, which can realize fully automatic filtration, cleaning, regeneration and recycling processing. It has the characteristics of compact structure, simple operation and convenient maintenance. It has been widely used in chemical, electric power, pharmaceutical, food, textile and other fields.

The working principle of the Y-shaped self-cleaning filter is mainly divided into two stages: filtration and cleaning.

1. Filtration stage

Liquid flows into the filter from the inlet, and when it passes through the filter, solid impurities are intercepted on the inner wall of the filter, while clean water flows out from the outlet. The structure and pore size of the filter determine the filtration accuracy of the filter.

2. Cleaning stage

When the impurities on the inner wall of the filter screen accumulate to a certain extent, causing the pressure difference between the inlet and outlet to reach the preset value or the cleaning time, the filter will automatically enter the cleaning stage. The cleaning process includes opening the sewage valve and starting the motor, driving the cleaning brush to clean the filter screen, and discharging the impurities from the sewage valve.

Structural features

The Small-Footprint Y-Shaped Self-Cleaning Filter is mainly composed of the following parts:

1. Filter cartridge

The filter cartridge is the core part of the filter and is used to intercept solid impurities. The material and pore size of the filter cartridge determine the filtration effect and service life of the filter.

2. Filter screen

The filter screen is the filter element in the filter cartridge, and its material and pore size determine the filtration accuracy of the filter. Commonly used filter materials include stainless steel, nylon, polyester, etc.

3. Cleaning device

The cleaning device includes a motor, a cleaning brush and a transmission mechanism. The motor drives the cleaning brush through the transmission mechanism to clean the filter screen.

4. Drain valve

The drain valve is used to discharge the impurities intercepted by the filter screen from the filter during the cleaning stage.

5. Electrical control part

The electrical control part is used to realize the automatic operation of the filter, including differential pressure controllers, timers, etc.

Technical data

Scope of application

The Small-Footprint Y-Shaped Self-Cleaning Filter is widely used in many fields due to their high efficiency, intelligence, and maintenance-free characteristics.

1. Industrial water treatment. Used in cooling water systems, boiler feed water pretreatment, industrial wastewater treatment, etc.

2. HVAC. Water purification for central air conditioning systems, heating systems, etc.

3. Agricultural irrigation. Water filtration for farmland irrigation, greenhouse sprinkler irrigation, drip irrigation, etc.

4. Food and beverage industry. Water filtration in pure water systems and beverage production lines.

5. Pharmaceutical industry. Preliminary filtration of pharmaceutical water and injection water.

6. Commercial buildings. Water supply systems, fire protection systems, swimming pool water treatment, etc.

Daily maintenance

In order to ensure the normal operation and prolong the service life of the Y-shaped self-cleaning filter, daily maintenance work is essential. Mainly include the following points:

1. Regularly check whether all components of the filter are operating normally, such as motors, cleaning brushes, sewage valves, etc.

2. Regularly clean the filter to keep it clean.

3. Regularly check the electrical control section to ensure that the controller, timer, etc. are working properly.

4. Regularly check the pressure difference between the import and export. If the pressure difference is abnormal, the cause should be promptly investigated.

5. Regularly check the sewage pipe to ensure smooth discharge.

Precautions for selection

When selecting a Y-shaped self-cleaning filter, consider the following factors:

1. Water treatment. Choose the appropriate type of filter according to the actual water treatment.

2. System piping pressure. Select a filter that can withstand system piping pressure.

3. Filtration accuracy. Select the appropriate filter according to the user's required filtration accuracy.

4. Filter the concentration of suspended solids in impurities. When the concentration is high, it is necessary to choose a filter with strong cleaning ability.

5. Physical and chemical properties of the filter media. Choose the appropriate filter material and filter structure according to the characteristics of the medium.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
