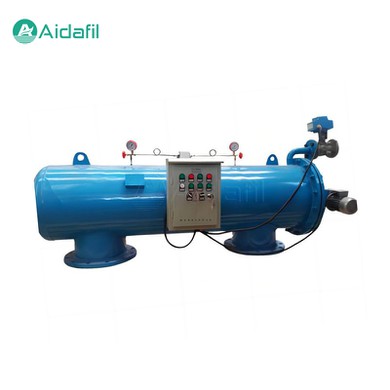

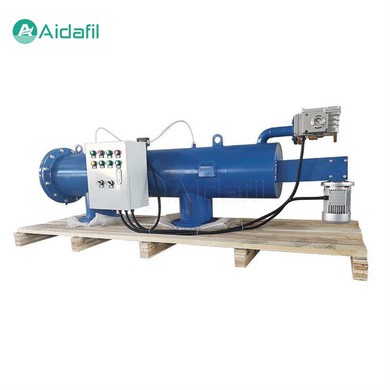

Environmentally Friendly Horizontal Self-Cleaning Filter

The Environmentally Friendly Horizontal Self-Cleaning Filter is common fluid filtering equipment that effectively removes solid particles and suspended matter from the fluid through an automated filtering and cleaning process, thus ensuring the cleanliness and normal operation of the system fluid. Installed horizontally, it occupies side space and is suitable for locations with ample side space.

This type of filter is widely used in industries such as industrial, agricultural, municipal, electronic, pharmaceutical, and food, especially in applications where water quality requirements are high, such as power plants, steel mills, and petrochemical industries. Horizontal self-cleaning filters play a crucial role in these industries.

Technical Parameters

Main Functions

1. Efficient Filtration. Through precision filtration elements, effectively removes suspended solids, particulate matter, colloidal substances, and microorganisms from liquids, ensuring liquid cleanliness.

2. Automatic Cleaning. When the filter cylinder's pressure difference reaches a set value or a pre-set cleaning time is reached, an automatic backwashing process is initiated without human intervention, significantly reducing labor intensity.

3. Continuous Operation. Cleaning processes do not interfere with filtration processes, allowing the equipment to operate continuously, avoiding production interruptions due to cleaning.

4. Remote Monitoring. Equipped with data interfaces, the filter can connect to upper-level computers or central control systems, enabling remote monitoring, fault alarms, parameter adjustments, and other functions.

Working Principle

The working process of an environmentally friendly horizontal self-cleaning filter can be divided into two stages: the filtration stage and the self-cleaning stage.

1. Filter stage

In the filtration stage, untreated water enters from the water inlet of the filter and is evenly distributed to the inside of the filter cartridge through the internal diversion device. Water passes through the filter screen, impurities are intercepted in the filter net, and clean water flows out from the water outlet to complete the filtration process.

2. Self-cleaning stage

As the filtration continues, impurities on the filter screen will gradually accumulate, resulting in an increase in the pressure difference between the filter inlet and outlet. When the pressure difference reaches the preset value or reaches the set cleaning time, the control system will start the cleaning mechanism for self-cleaning.

The cleaning process is usually as follows:

The sewage valve opens, allowing a portion of the water to flow through the filter and drain from the sewage outlet, while removing intercepted impurities.

- The cleaning mechanism such as the backwash nozzle or brush is activated to clean the filter. The cleaning water flow can be filtered clean water or an externally supplied clean water source.

After cleaning, the drain valve is closed and the filter returns to the filtration stage to continue the filtration of water.

Features

1. Efficient self-cleaning. The filter can be automatically cleaned without downtime to maintain filtration efficiency.

2. Energy saving and water saving. There is no need to consume additional energy or water during the cleaning process, and only the filtered backwater can be used to complete the cleaning.

3. Long life. Made of high-quality stainless steel and other materials, it is corrosion-resistant, wear-resistant, and has a long service life.

4. Easy maintenance. Simple structure, easy maintenance, reducing the workload of daily maintenance.

5. Flexible control methods. Differential pressure control, time control, or manual control can be selected according to actual needs.

Application Field

The environmentally friendly horizontal self-cleaning filter is suitable for a variety of water treatment scenarios, including but not limited to:

1. Industrial circulating water filtration: removes particulate matter from circulating water, protecting equipment and pipelines.

2. Cooling water filtration: effectively intercepts impurities in the circulating water of the cooling tower.

3. Municipal wastewater treatment: used for primary filtration or advanced treatment to improve the quality of wastewater.

4. Agricultural irrigation: Filtering farmland irrigation water to reduce soil pollution and clogging of irrigation and drainage facilities.

5. Wastewater reuse: To achieve deep purification of wastewater and meet reuse standards.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
