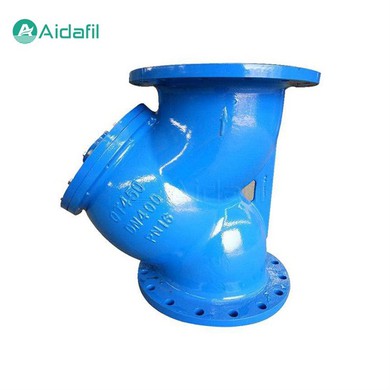

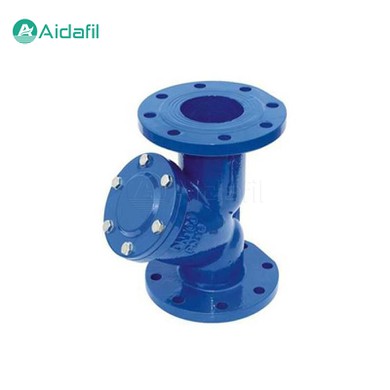

Sturdy Durable Y-Type Pipeline Basket Filter

The sturdy durable Y-type pipeline basket filter, as the name suggests, boasts a Y-shaped structure, usually composed of the main body, filter screen, cover, sewage valve and other parts. The filter screen is the core part of the filter, which determines the accuracy of the filter. Generally speaking, the filter screen will be made of stainless steel material to adapt to different working environments and corrosion resistance needs. In addition, the basket design means that the shape of the filter screen is similar to a basket, which can provide a larger filtration area, thus enhancing the filtration efficiency.

The working principle of the Y-type pipeline basket filter is relatively simple: fluid enters the filter from one end of the pipe, and when it passes through the filter screen in the "basket", solid impurities are trapped, while the clean fluid flows into another pipe through the filter screen and continues to flow downstream. Over time, more and more impurities are trapped, and the filter screen needs to be cleaned or replaced regularly to maintain the efficiency of the filter.

Parameters

Structure

The sturdy durable Y-type pipeline basket filter is composed of the following main components:

- Filter Body. Usually made of cast iron, stainless steel, or other corrosion-resistant materials, it has a Y-shaped design.

- Filter Basket. Installed inside the filter body to collect impurities.

- Drain valve. Located at the bottom of the filter body, it is used to drain collected impurities.

- Cleaning port. For cleaning or replacing filter baskets.

Features

1. Simple structure, easy to install and maintain.

2. Good filtration effect, can effectively remove solid particles;

3. Suitable for piping systems of various media, such as water, oil, gas, etc.

4. Variety of materials, such as carbon steel, stainless steel, etc., to meet the needs of different application scenarios;

5. The filtration area is large, the circulation capacity is strong, and the resistance is small.

6. Suitable for a variety of filtration precision, meeting different industrial requirements.

7. Can be customized according to customer requirements, with strong adaptability.

Application field

The sturdy durable Y-type pipeline basket filter is widely used in many industries due to their high efficiency, durability, and convenient maintenance.

1. Chemical industry. Used for filtration of chemical raw materials, solvents, coatings, etc., to protect reactors, pumps and other equipment.

2. Oil and natural gas. In the process of transporting crude oil, natural gas, and refined oil, impurities such as water and sand are removed.

3. Pharmaceutical industry. Ensure the purity of pharmaceutical water and liquid to meet GMP requirements.

4. Food and beverage. Used for filtration of fruit juices, beer, dairy products, etc., to maintain product quality and safety.

5. Water treatment. Filter suspended solids in industrial water circulation systems and cooling water systems to protect equipment from wear and tear.

Maintenance

1. Regular inspection. Monitor the pressure difference. When the pressure difference exceeds the design value, it indicates that the filter screen is blocked and needs to be cleaned or replaced in time.

2. Clean the filter basket. Close the relevant valve, open the quick-opening lid, remove the filter basket, and use a suitable cleaning agent and method to remove impurities.

3. Check the seal. After each maintenance, check and replace the damaged seal to ensure the sealing performance.

4. Record maintenance. Establish maintenance records to track filter usage and maintenance cycles, which helps in preventive maintenance.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
