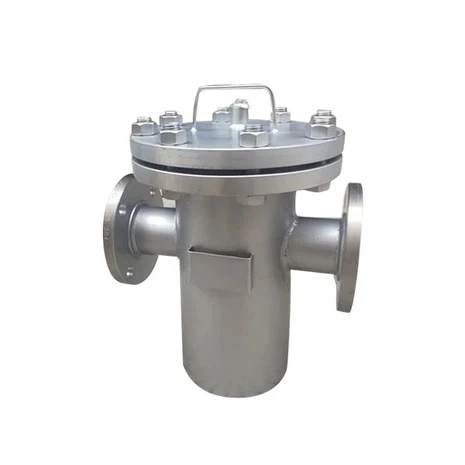

When selecting a basket strainer, there are several key features to consider. These features will help ensure that the basket filter is effective for your specific needs and requirements. Here are a few key features that need to be considered for you to sort out, you can refer to
1. Filtration Efficiency: One of the main uses of basket filters is to remove solid particles from liquids or air streams. The filtration efficiency of a basket filter is determined by its mesh size or perforation size. Mesh sizes range from fine to coarse, the choice depends on the size of the particles you need to remove. Smaller mesh sizes provide finer filtration but may result in higher pressure drop.
2. Materials of Construction: Basket strainers are available in a variety of materials including stainless steel, carbon steel, cast iron, bronze, and PVC. Material selection should consider factors such as compatibility with process fluids, temperature and pressure conditions, and corrosion resistance requirements.
3. Design and configuration: Basket filters are available in different designs and configurations to suit specific applications. The most common types are single cylinder basket strainers, double cylinder basket strainers and Y strainers. Single cartridge filters have one basket chamber, while duplex filters have two chambers, allowing for continuous flow even during maintenance. Y-strainers are compact and are typically used for smaller pipe sizes or lower flow applications.
4. Traffic: Consider your application's traffic or capacity requirements. It is critical to select a basket filter that can handle the expected flow without causing excessive pressure drop or affecting filtration efficiency.
5. Pressure rating: The pressure rating of basket filters indicates the maximum pressure they can withstand. It is important to choose a filter with the right pressure rating for your application to prevent failure or leaks.
6. Installation and maintenance: Evaluate the ease of installation and maintenance of the basket filter. Look for features like removable covers or baskets for easy access, drain or blowdown valves to remove accumulated debris, and vent or vent valves for efficient starting.
7. Sealing mechanism: Consider the sealing mechanism of the basket strainer to ensure safe and leak-free operation. This may include options such as gaskets, o-rings or metal-to-metal seals.
8. End Connections: Basket strainers are available with a variety of end connections to match your piping system. Common types include threaded connections, flanged connections, and butt weld connections. Choose the appropriate end connection to match your existing or planned piping system.
9. Accessories: Some basket strainers offer additional features or accessories to enhance their functionality. These may include pressure gauges to monitor differential pressure, differential pressure indicators or switches for blockage detection, and drain or vent valves for maintenance purposes.
10. Cost and longevity: Consider the initial cost of a basket filter as well as long-term durability and reliability. Less expensive options may save money initially, but they may be prone to corrosion or wear, leading to frequent replacement or maintenance. Choosing a higher quality basket filter that meets your requirements can provide better long-term value.
By carefully considering these key characteristics, you can select the best basket filter for your application, ensuring effective filtration, durability and efficient operation.
