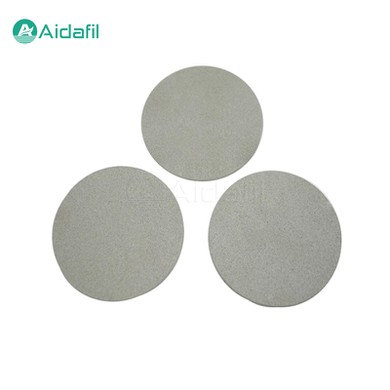

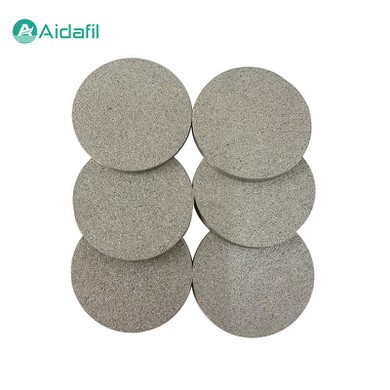

High Quality Porous Sintered Titanium Powder Filter Disc

The high quality porous sintered titanium powder filter disc is a kind of porous titanium filter material made of industrial high-purity titanium powder as raw material, which is formed by sieving and cold isostatic pressing, and then sintered under high temperature and high vacuum conditions. The filter disc plays a key role in many industrial fields, especially in filtration occasions that require high precision, corrosion resistance and high temperature resistance.

Composition and manufacturing process

The high quality porous sintered titanium powder filter disc is made of industrial high-purity titanium powder, which not only has good mechanical properties, but also has excellent corrosion resistance and high temperature resistance. Titanium powder with a purity of usually more than 99.4% ensures that the sintered filter disc can maintain stable performance in various extreme environments.

The manufacturing process involves a number of delicate steps. Firstly, the titanium powder is precisely graded to ensure that the particle size is consistent, which is essential for the final microporous structure. Subsequently, the powder is formed through a cold isostatic pressing process. This step compacts the powder into the desired shape with the help of high pressure, and forms a preliminary microporous structure. Finally, the formed parts are sintered under high temperature and high vacuum conditions. During the sintering process, the titanium particles diffuse and combine with each other to form a solid porous structure. This structure has sufficient mechanical strength while maintaining the necessary porosity and pore size.

Structure and performance characteristics

1. Structural uniformity. It has a uniform structure with narrow pore size distribution, which helps to improve separation efficiency.

2. High temperature resistance. It can be used normally in high temperature environments below 280 degrees, with good thermal stability.

3. Chemical stability. It features acid and alkali corrosion resistance, good oxidation resistance, suitable for filtration of various corrosive media.

4. Mechanical properties. With good mechanical strength, it can be operated by pressing filter or suction filter, and the maintenance is simple and convenient.

Filtration principle and efficiency

The filtration principle is based on a deep filtration mechanism, which uses the internal tortuous channels to effectively intercept particles. This filtration method not only increases the efficiency of capturing small particles, but also reduces the possibility of clogging, thus extending the service life of the filter disc.

Due to its high porosity and optimized pore structure, the porous sintered titanium powder filter disc can maintain high filtration accuracy while maintaining low fluid resistance for efficient penetration. This enables the filter disc to cope with high flow rate fluid processing requirements and improve overall filtration efficiency.

Parameters

Application fields

1. Pharmaceutical industry. It is used for decarbonization filtration and security filtration in the production process of infusion, small injections, eye drops, etc.

2. Water treatment industry. It is used for security filtration of ultrafiltration, RO, EDI systems, filtration after ozone sterilization and ozone aeration.

3. Food industry. It is used for the clarification and filtration of beverages, alcohol, vegetable oils and other products.

4. Chemical industry. It is used for precision filtration of liquid products, APIs and pharmaceutical intermediates, catalyst recovery, etc.

5. Environmental protection field. It is used in gas purification, sewage treatment, etc., such as exhaust gas dust removal, high temperature flue gas filtration, etc.
