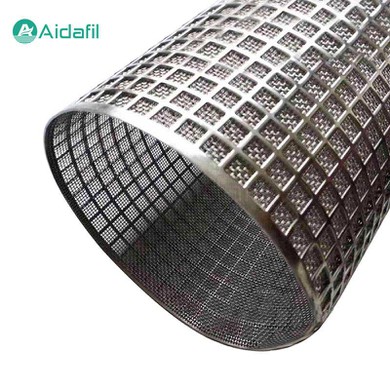

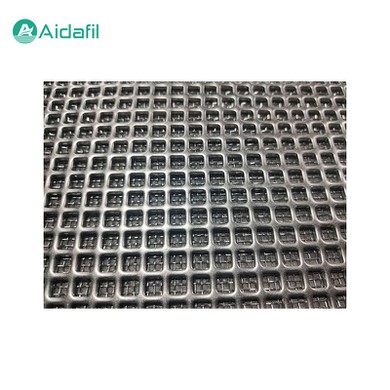

High Strength Square Hole Punching Plate Composite Sintered Mesh
Product Details
The high strength square hole punching plate composite sintered mesh is a high-performance filter material, which is made of multiple layers of stainless steel wire mesh and stainless steel punching plate through a special process. It has excellent corrosion resistance, high temperature resistance, wear resistance and high filtration accuracy, and is widely used in the filtration process of chemical, petroleum, pharmaceutical, food and other industries.
Structure
The high strength square hole punching plate composite sintered mesh is mainly composed of multiple layers of stainless steel wire mesh and stainless steel punching plate. Among them, the stainless steel wire mesh is the main part of the filter material, with good air permeability and filtration performance; the stainless steel punching plate plays a supporting and reinforcing role.
Performance features
1. Corrosion resistance
The square hole punching plate composite sintered mesh is made of stainless steel material, has good corrosion resistance, and can operate stably for a long time in a variety of harsh environments.
2. High temperature resistance
The material has a high melting point and heat resistance, and can maintain good mechanical properties and filtration performance under high temperature environment.
3. Wear resistance
The surface of the square hole punching plate composite sintered mesh is smooth and hard, with good wear resistance, and can resist the impact and wear of solid particles.
4. High filtration accuracy
The pore size distribution of the material is uniform and the pore size is adjustable, which can achieve high-precision filtration effect.
5. Long service life
Due to its excellent corrosion resistance, high temperature resistance and wear resistance, the square hole punching plate composite sintered mesh has a long service life, which can reduce maintenance costs and replacement frequency.
Application areas
1. Chemical industry
It can be used to filter solid particles and suspended matter in chemical raw materials, products and waste liquids to protect equipment from wear and corrosion.
2. Petroleum industry
It can be used for filtration work in water injection, oil production and wastewater treatment in the process of oil field exploitation.
3. Pharmaceutical industry
It can be used for filtration work in raw material screening, product refining and waste liquid treatment in the process of drug production.
4. Food industry
It can be used for solid-liquid separation and purification in the processing of beverages, alcoholic beverages, edible oils and other foods.
5. Other fields
It can also be used for filtration and separation work in environmental protection engineering, energy chemical industry, aerospace and other fields.
Parameters
|
Nominal precision (μm) |
Absolute precision (μm) |
Gases permeability (L/min · dm2 · kPa) |
Bubbling pressure (pa) |
|
1 |
6-7 |
180 |
5300-6000 |
|
2 |
8-9 |
240 |
4300-5000 |
|
5 |
11-13 |
260 |
3000-3700 |
|
10 |
16-18 |
310 |
2700-3300 |
|
15 |
24-26 |
350 |
2000-2600 |
|
20 |
28-32 |
450 |
1800-2300 |
|
25 |
34-36 |
620 |
1400-1900 |
|
30 |
40-45 |
690 |
1200-1700 |
|
40 |
50-55 |
720 |
1000-1500 |
|
50 |
71-80 |
850 |
900-1200 |
|
70 |
89-95 |
900 |
700-1100 |
|
100 |
110-120 |
1080 |
650-1000 |
|
150 |
180-200 |
2600 |
550-800 |
|
200 |
260-280 |
2800 |
450-600 |
Manufacturing process
1. Raw material preparation
Select high-quality stainless steel wire mesh and stainless steel perforated plate as raw materials to ensure the quality and performance of the product.
2. Cleaning and pretreatment
Clean and pretreat the stainless steel wire mesh and stainless steel perforated plate to remove oil, impurities and oxides on the surface, and improve its adhesion and sintering performance.
3. Composite process
The cleaned stainless steel wire mesh is composited with the stainless steel perforated plate, and they are firmly connected together by welding, bonding or pressing.
4. Sintering treatment
Put the composite material into a high-temperature furnace for sintering treatment, so that the metal atoms between the stainless steel wire mesh and the stainless steel perforated plate diffuse and form a strong bond. The control of sintering temperature and time is crucial to the performance of the product.
5. Post-processing
The sintered product needs to undergo post-processing processes such as cooling, cutting, and grinding to obtain a square hole perforated plate composite sintered mesh product that meets the requirements.
