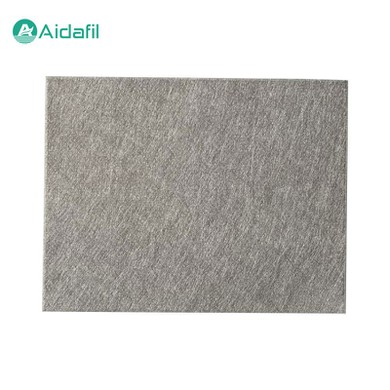

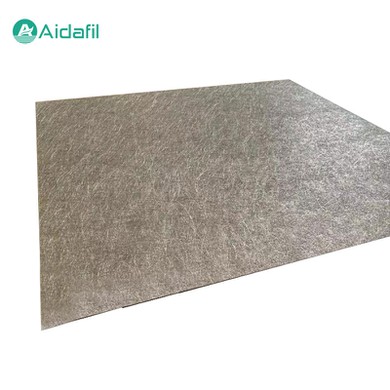

High-Efficiency Porous Titanium Fiber Sintered Felt

The high-efficiency porous titanium fiber sintered felt is a high-performance filter material made from micron-sized titanium fibers through a special production process. This material not only has a unique three-dimensional mesh porous structure, but also has a series of excellent physical and chemical properties, making it an important application in many fields.

Structural features

The microstructure of high-efficiency porous titanium fiber sintered felt shows a three-dimensional network, which makes it have high porosity and large specific surface area. Its pore size distribution is relatively uniform and can be adjusted in a wide range to adapt to different filtration requirements. In addition, due to the high strength and corrosion resistance of titanium fibers, sintered felt also exhibits good mechanical strength and chemical stability.

Preparation process

The preparation process of high-efficiency porous titanium fiber sintered felt involves two main steps: laying and sintering. First, the titanium fiber raw material is laid through a specific equipment to form a fiber layer of a certain thickness. Then, the laid fiber layer is placed in a high-temperature vacuum sintering furnace for sintering. During the sintering process, the fibers will be rearranged and recrystallized, and finally a tightly bonded porous structure will be formed.

Parameters

Performance advantage

- Pressure Resistance. Due to its three-dimensional network structure and high porosity, the high-efficiency porous titanium fiber sintered felt can withstand high pressure and is suitable for filtration applications under high pressure difference.

- Corrosion resistance. Titanium material itself has excellent corrosion resistance, so titanium fiber sintered felt can be used in highly corrosive environments such as strong acids and alkalis.

- Easy to process. This material can be easily processed by cutting, welding, stamping, etc., making it easy to install and use.

- Regenerative. Titanium fiber sintered felt can be cleaned and regenerated by physical or chemical methods, with a long service life.

Application field

1. PEM pure water electrolysis hydrogen production

In the process of electrolysis of water to produce hydrogen, high-quality filter materials are required to ensure the stable operation of the system. Titanium fiber sintered felt is an ideal choice due to its excellent corrosion resistance and high porosity.

2. Civilian field

In daily life, titanium fiber sintered felt can be used for deep filtration of drinking water, air purification, and household soft water treatment.

3. Healthcare

In the medical industry, titanium fiber sintered felt can be used to make medical filters, artificial organs and implanted medical apparatus.

4. Other fields

In addition to the above applications, titanium fiber sintered felt can also play an important role in various fields such as chemical industry, environmental protection, and energy.

Effective cleaning and regeneration

Effective cleaning and regeneration of titanium fiber sintered felt is an important measure to maintain its filtration performance and prolong its service life. Here are some commonly used cleaning and regeneration methods:

--- Physical cleaning

1. Backblowing. Using compressed air or steam from the back of the titanium fiber sintered felt to remove impurities attached to the hole.

2. Backwashing. The clean fluid is introduced from the downstream side of the titanium fiber sintered felt and flows in the opposite direction to flush away the dirt clogged in the hole.

3. Positive washing. A cleaning fluid is introduced from the upstream side of the titanium fiber sintered felt, causing impurities to flow forward with the fluid and be discharged, usually for preliminary cleaning or auxiliary backwashing.

--- Chemical cleaning

1. Pickling. Use an appropriate acidic solution (such as hydrochloric acid, nitric acid, or citric acid) to dissolve metal oxides or other inorganic impurities on the surface of titanium fiber sintered felt.

2. Alkaline washing. Use an alkaline solution (such as sodium hydroxide) to clean the grease, organic pollutants, etc. on the sintered felt.

3. Ultrasonic cleaning. Placing the titanium fiber sintered felt in an ultrasonic cleaning machine uses ultrasonic cavitation to remove tiny dirt particles.
