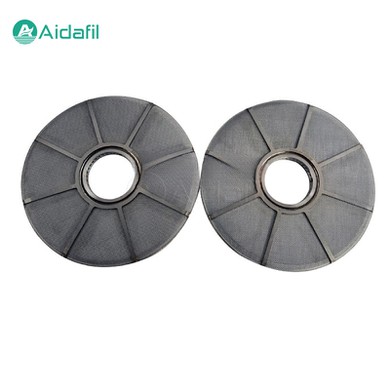

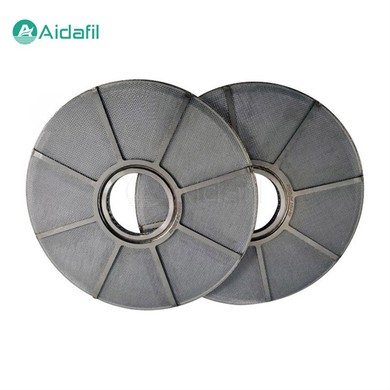

Easy Cleaning Sintered Mesh Filter Disc
Product Details
The easy cleaning sintered mesh filter disc is an ideal filter material for filtration, washing and drying (referred to as three-in-one). It is made of multi-layer stainless steel sintered mesh, which has the characteristics of high efficiency, corrosion resistance and wide application environment. The filtration accuracy is 1-300μm, and the diameter is 100-3000mm. It plays an important role in many industrial fields.
The easy cleaning sintered mesh filter disc is a disc-shaped filter material made of multi-layer metal woven mesh through a special sintering process. It is mainly composed of wire woven mesh, sintered bonding layer and frame and other parts.
Manufacturing process of sintered mesh filter disc
1. Selection of metal wire
High-quality metal wire is the basis for making high-quality sintered mesh filter discs. Usually stainless steel and other corrosion-resistant and high-temperature resistant metal materials are used.
2. Weaving process
Through fine weaving techniques, wires are woven into mesh layers with specific apertures and structures.
3. Sintering process
Sintering is carried out in a high-temperature and high-pressure environment to achieve a firm bond between the mesh layers and form a solid whole.
Characteristics
1. High filtration accuracy
It can effectively trap tiny particles and impurities, achieving a high filtration effect.
2. High strength and durability
With its unique sintering structure, it has excellent mechanical strength, can withstand high pressure and impact, and has a long service life.
3. Good chemical stability
It can adapt to a variety of corrosive media and maintain stable performance in harsh chemical environments.
4. High temperature resistance
It can operate normally under high temperature conditions, meeting the requirements of some high-temperature filtration scenarios.
5. Uniform pore size distribution
Ensure the uniformity and stability of the fluid as it passes through.
Advantages
1. Efficient filtration
It can precisely separate impurities of different particle sizes, providing high-quality filtration results.
2. Wide range of applicability
It can be used for filtration of liquids, gases, and other media, and is used in a wide range of industries.
3. Easy to clean and maintain
It can be cleaned by appropriate methods to restore its filtration performance and reduce the cost of use.
4. Stable performance
During long-term use, it can maintain a relatively stable filtration effect and physical properties.
5. Long service life
Due to its high strength and durability, it has a long service life, reducing the frequency of replacement.
Application fields
1. Petrochemical industry
In the process of petroleum refining and chemical production, it is used to filter various liquids and gases to ensure product quality and process safety.
2. Pharmaceutical industry
To ensure the purity of the liquid medicine, meet strict medical standards, and ensure the quality of the medicine.
3. Food and beverage industry
It is used to filter liquids during food processing to ensure food safety and taste.
4. Environmental protection
It plays an important role in wastewater treatment, waste gas treatment, and other aspects to help reduce environmental pollution.
5. Machinery manufacturing industry
For example, the filtration of oil in the hydraulic system ensures the normal operation of mechanical equipment.
6. Electronics industry
Filter high-purity gases and liquids to meet the high requirements of electronic component production.
Parameters
|
D (mm) |
Filtration area (m2) |
|
|
ML-600-R |
600 |
0.28 |
|
ML-800-R |
800 |
0.5 |
|
ML-1000-R |
1000 |
0.79 |
|
ML-1200-R |
1200 |
1.13 |
|
ML-1600-R |
1600 |
2.01 |
|
ML-1800-R |
1800 |
2.54 |
|
ML-2000-R |
2000 |
3.14 |
|
ML-2300-R |
2300 |
4.15 |
|
ML-2400-R |
2400 |
4.52 |
|
ML-2600-R |
2600 |
6.31 |
|
ML-2750-R |
2750 |
5.94 |
|
ML-2800-R |
2800 |
6.15 |
|
ML-3000-R |
3000 |
7.06 |
|
R (μm) "5, 10, 15, 20, 30, 40, 60" |
Layer thickness (mm) "1.7mm, 2.5mm, 3.5mm" |
Selection of sintered mesh filter disc
1. Filtration accuracy requirements
Select the appropriate accuracy level according to the specific filtration requirements.
2. Working pressure and temperature range
Make sure the filter disc can adapt to the actual working pressure and temperature conditions.
3. Media characteristics
Consider the corrosive, viscous, and other characteristics of the medium, and choose the appropriate material and structure.
4. Traffic requirements
Ensure that the filter disc does not have a significant impact on the fluid flow.
