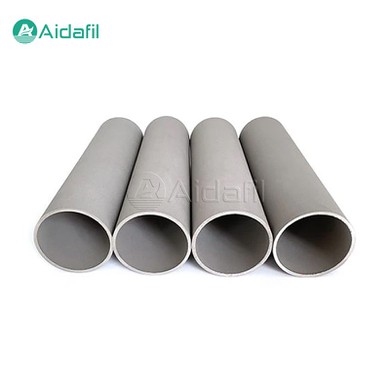

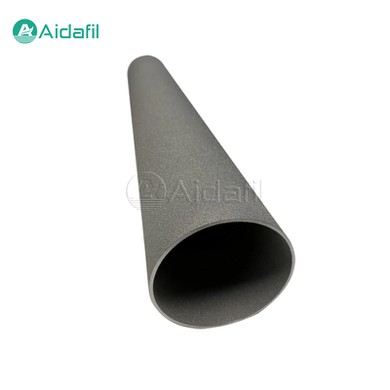

Porous Sintered Titanium Powder Filter Tube

The Porous Sintered Titanium Powder Filter Tube is a filter tube made of high-purity titanium powder through a precise high-temperature sintering process. Titanium is a metal with many advantages, such as corrosion resistance, high temperature resistance, light weight, high strength, etc. Therefore, titanium powder sintered filter tube is widely used in many industrial fields.

Performance characteristics

1. Corrosion resistance. The porous sintered titanium powder filter tube shows excellent corrosion resistance in a variety of corrosive media, such as salt water, acid, alkali, etc.

2. High temperature resistance. Titanium material has a high melting point and good high temperature resistance, which enables sintered filter tubes to be used in high temperature environments.

3. Mechanical strength. Titanium powder filter tubes treated with precision sintering process have high tensile strength and compressive strength, and can withstand high pressure and load.

4. Biocompatibility. Titanium material has good biocompatibility and is suitable for medical devices and other fields, such as artificial joints, fracture internal fixation, etc.

5. Stability. Sintered titanium powder filter tubes show good stability in different environments and applications, and will not undergo significant chemical reactions or morphological changes.

Application fields

The application fields of the porous sintered titanium powder filter tube are very wide, including but not limited to:

1. Chemical industry. Used for fluid filtration, gas purification, catalyst carrier, etc.

2. Environmental protection field. Used for water treatment, air purification, waste gas treatment, etc.

3. Medical devices. Used for artificial joints, pacemakers, fracture internal fixation, etc.

4. Aerospace. Used for filtration and cooling in high temperature environments, etc.

5. Food industry. Used for food filtration, beverage filtration, etc.

Parameters

Advantages

The advantage of the porous sintered titanium powder filter tube lies in its unique material properties and preparation process, which enables it to perform excellent performance in many fields. Its main advantages include:

1. Corrosion resistance and temperature resistance. Ability to maintain stable performance under extreme chemical and temperature conditions.

2. High mechanical strength. Ability to withstand high pressure and load, suitable for applications with high requirements.

3. Biocompatibility. Application in medical devices will not cause human rejection or allergic reactions.

4. Environmentally friendly. Application in the field of environmental protection helps to improve resource recycling and environmental protection.

Preparation process

1. Raw material selection. High-purity titanium metal powder is selected, and the purity is usually required to be above 99.9% to ensure the performance of the final product.

2. Powder preparation. Titanium powder can be prepared by mechanical alloying, liquid metal atomization and other methods. The particle size, shape and distribution of the powder have an important influence on the performance of the final product.

3. Filter tube molding. Titanium powder is made into a blank of the filter tube by compression molding, extrusion molding or screen printing. This step needs to ensure the dimensional accuracy, shape and structural integrity of the filter tube.

4. Sintering. The formed filter tube blank is placed in a high-temperature furnace for sintering. At high temperature, the titanium powder particles diffuse and dissolve each other to form a dense sintered body. Sintering temperature, time and atmosphere (usually high-purity argon or nitrogen is used as a protective atmosphere) have a significant impact on the performance of the filter tube.

5. Post-processing. After sintering, the filter tube needs to be cut, polished, cleaned and other post-processing steps to meet the needs of different application scenarios.
