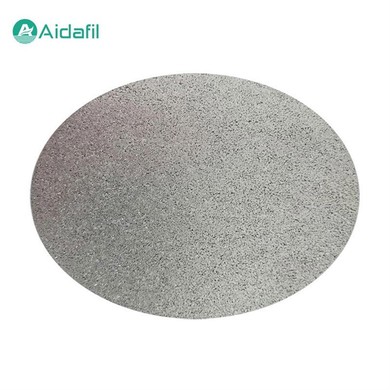

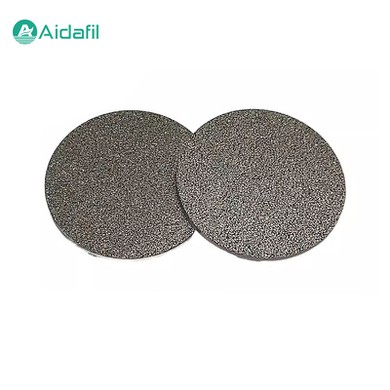

Porous Titanium Powder Sintered Filter Disc
Product Details
The porous titanium powder sintered filter disc is a porous filter material made of titanium powder through sintering process. It is characterized by alkali resistance, waterproof, low temperature resistance, high temperature resistance, anti-static, fire resistance, acid resistance and other properties.
Material properties of porous titanium powder sintered filter disc
1. Excellent corrosion resistance
Titanium itself has excellent resistance to acid, alkali, salt and other corrosive media, which allows titanium powder sintered filters to operate stably in harsh chemical environments, ensuring their long-term reliability under various corrosive conditions.
2. High strength and high toughness
With high strength and toughness, it can withstand high pressure and impact, and is not easily damaged in complex industrial applications, ensuring the continuous progress of the filtration process.
3. Good thermal stability
It can maintain stable performance over a wide temperature range, providing reliable filtration in both low and high temperature environments.
Performance advantages of porous titanium powder sintered filter disc
1. High filtration accuracy
It can achieve very high filtration accuracy, effectively removing tiny particles and impurities, ensuring the purity of the fluid.
2. Good breathability
While ensuring the filtration effect, it has good air permeability, allowing fluids to pass through smoothly and reducing resistance.
3. Long service life
Due to its excellent material properties and manufacturing process, it has a long service life and can continue to operate stably under normal use and maintenance.
4. Reusability
After proper cleaning and treatment, it can be reused multiple times, reducing the cost of use.
Parameters
|
|
Value of particles blocked in liquid |
Permeability (no less than) |
|||
|
Model |
Filtration efficiency (98%) |
Filtration efficiency (99.9%) |
Permeability (10-12m2) |
Relative permeability |
MPa |
|
ADTG-1 |
1 |
3 |
0.05 |
5 |
3 |
|
ADTG-3 |
3 |
5 |
0.08 |
8 |
3 |
|
ADTG-5 |
5 |
10 |
0.3 |
30 |
3 |
|
ADTG-10 |
10 |
14 |
0.8 |
80 |
3 |
|
ADTG-15 |
15 |
20 |
1.5 |
150 |
3 |
|
ADTG-20 |
20 |
32 |
2 |
200 |
3 |
|
ADTG-35 |
35 |
52 |
4 |
400 |
2.5 |
|
ADTG-60 |
60 |
85 |
6 |
600 |
2.5 |
|
ADTG-80 |
80 |
124 |
10 |
1000 |
2.5 |
Manufacturing process of porous titanium powder sintered filter disc
1. Powder selection
Carefully selecting high-quality titanium powder to ensure that the purity and particle size distribution of the powder meet the requirements is the foundation for manufacturing high-quality filters.
2. Precise sintering
By precisely controlling the parameters such as sintering temperature, time, and pressure, the titanium powder particles are tightly bonded to form a filter with a specific microporous structure.
3. Post-treatment process
It includes surface treatment and cleaning of the filter to further improve the performance and quality of the filter.
Filtration principle and mechanism of porous titanium powder sintered filter disc
1. Microporous interception
Using its microporous structure, particles of different particle sizes are intercepted and separated to achieve effective removal of impurities in the fluid.
2. Surface adsorption
It can adsorb some minor pollutants, enhance the filtration effect, and also have a certain fixed effect on some harmful substances.
3. Deep filtration
Through the tortuous channels of micropores, the particles are deeply filtered in the filter to improve the thoroughness of filtration.
Application field of porous titanium powder sintered filter disc
1. Chemical industry
It is used for filtration of various chemical liquids and gases to ensure the safety and product quality of the chemical production process.
2. Pharmaceutical industry
It plays an important role in the preparation and purification of pharmaceutical solutions to ensure the safety and effectiveness of drugs.
3. Electronics industry
It can filter and purify the air to prevent damage to electronic components such as dust, and improve the reliability of electronic products.
4. Food and beverage industry
To ensure the hygiene and safety of food and beverages, and to remove possible impurities and contaminants.
5. Environmental protection
Participate in environmental protection projects such as wastewater treatment and waste gas purification, and contribute to environmental protection.
6. Aerospace sector
Due to its lightweight, high strength and excellent performance, it is widely used in filtration systems of aerospace equipment.
