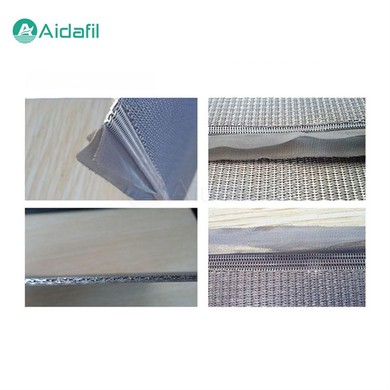

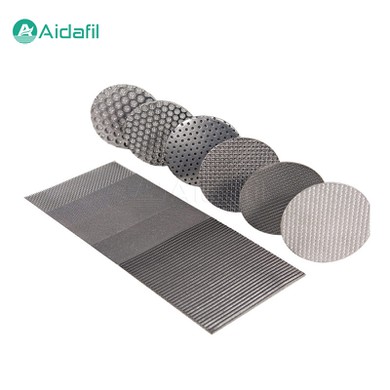

Multi-Layer Metal Fiber Sintered Mesh

The multi-layer metal fiber sintered mesh is a filter material made of multiple layers of metal woven wire mesh superimposed and made through special pressing and vacuum sintering process. This structure makes the sintered mesh not only have high strength and overall rigidity, but also provide excellent filtering performance. The multi-layer metal fiber sintered mesh can be used for filtering various liquids and gases, and is suitable for different industrial fields, including chemical, petroleum, pharmaceutical, food processing, etc.

Performance in high temperature environments

The multi-layer metal fiber sintered mesh exhibits good performance in high temperature environments.

1. High temperature resistance

Due to the special sintering process, the multi-layer metal fiber sintered mesh can withstand high temperatures, even up to 350°C, so it can be used as a cooling material in high-temperature environments.

2. Stability

Under high temperature conditions, the structure of the sintered mesh is stable and not prone to deformation or damage, ensuring its filtration effect and mechanical strength in high temperature environments.

3. Antioxidant

The multi-layer metal fiber sintered mesh is usually made of corrosion-resistant materials such as stainless steel, which has good oxidation resistance and will not easily oxidize even when exposed to air for a long time at high temperatures.

4. Corrosion resistance

In addition to high temperature resistance, the multi-layer metal fiber sintered mesh also has strong acid and alkali corrosion resistance, which can maintain stability in a variety of chemical media.

5. Air permeability

The sintered mesh has good air permeability and can still effectively perform gas-liquid separation or gas-solid separation at high temperatures.

Different materials

The multi-layer metal fiber sintered mesh of different materials mainly varies in corrosion resistance, tensile strength, temperature adaptability and filtration accuracy. The following is a comparison of the characteristics of some common materials:

1. 304 stainless steel

- Corrosion resistance --- Good corrosion resistance and can resist the corrosion of most acids, alkalis, and salts.

- Temperature adaptability --- Can withstand higher temperatures, but slightly lower than 316 stainless steel.

- Tensile strength --- High tensile strength.

2. 316 stainless steel

- Corrosion resistance --- Better corrosion resistance than 304 stainless steel, especially against seawater, chlorides, and other oxidants.

- Temperature adaptability --- Can operate at higher temperatures.

- Tensile strength --- Equivalent to or slightly higher than 304 stainless steel.

3. Duplex stainless steel

- Corrosion resistance --- Very high corrosion resistance, especially suitable for chloride-containing environments.

- Temperature adaptability --- Good temperature adaptability.

- Tensile strength --- High strength.

4. Hastelloy

- Corrosion resistance --- Excellent corrosion resistance, especially for strong acids, alkalis, and high temperature and high pressure environments.

- Temperature adaptability --- Excellent high temperature performance.

- Tensile strength --- Medium to high tensile strength.

Model parameters

Application

The multi-layer metal fiber sintered mesh is widely used in many industrial fields due to its unique properties, including:

1. Chemical industry

It is used for filtration of chemical products, recycling of catalysts, refining of chemical solutions, etc.

2. Oil and gas industry

In the process of petroleum processing, it is used to remove impurities and solid particles, and to purify natural gas.

3. Automobile manufacturing

In automobile manufacturing, it is used for filtration of emission control systems, such as catalyst carriers, crankcase ventilation filtration, etc.

4. Pharmaceutical industry

In the process of drug production, it is used for the filtration of raw materials, the filtration of liquid medicines, etc.

5. Food and beverage industry

In food and beverage processing, it is used for pure water filtration, juice filtration, alcohol filtration, etc.

6. Environmental protection field

It is used for dust filtration and recycling in wastewater treatment and waste gas treatment.

7. Aerospace

In the aerospace field, it is used for filtration of aircraft hydraulic systems, cleaning of fuel systems, etc.

8. Energy industry

In power production, it is used for feed water filtration of steam boilers, filtration of cooling water systems, etc.

9. Electronics industry

In the semiconductor manufacturing process, it is used for the filtration of ultrapure liquids and gases.
