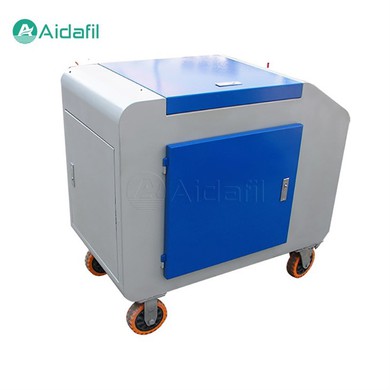

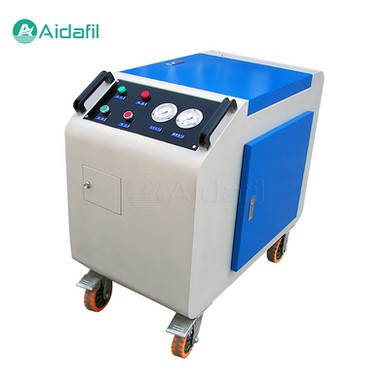

Automatic Control High Precision Mobile Box Type Oil Purifier Equipment

The automatic control high precision mobile box type oil purifier equipment represents a sophisticated system designed to remove impurities, contaminants, and moisture from various types of oils, including hydraulic oil, lubricating oil, transformer oil, and more. The equipment is compact and mobile, designed with castors to make it easy to move from one location to another.

The automatic control high precision mobile box type oil purifier equipment is widely used in a variety of industrial sectors, including:

- Power Generation

- Petrochemical

- Manufacturing

- Marine

- Transportation

- Aerospace

Technical parameters

Rated flow : 25-150 L/min

Rated pressure : 0.6 Mpa

Coarse filter precision : 100 μm

Grade 1 filter rating : 10, 20, 40 μm

Grade 2 filter rating : 3, 5, 10 μm

Differential pressure : 0.2 Mpa

Working temperature : 5-80 °C

Key Components and Features

1. Automatic Control System

At the heart of the equipment lies an advanced automatic control system that regulates the purification process with precision and efficiency. This system utilizes sensors, actuators, and programmable logic controllers (PLCs) to monitor oil quality parameters such as temperature, pressure, flow rate, and moisture content in real-time. By continuously adjusting purification parameters based on these inputs, the system ensures optimal purification performance while minimizing energy consumption and waste.

2. High Precision Filtration Technology

The equipment incorporates state-of-the-art filtration technology to effectively remove contaminants and impurities from oil. Multiple filtration stages, including coarse filtration, fine filtration, and precision filtration, ensure thorough purification and particle removal down to the sub-micron level. Specialized filter media and membranes with high dirt-holding capacity and efficiency enhance the overall performance and longevity of the equipment.

3. Mobile Box Type Design

Unlike conventional stationary purification systems, this equipment features a compact and mobile box type design that enables easy transportation and deployment in various locations. Equipped with sturdy wheels, handles, and lifting points, the equipment can be effortlessly moved between different sites, allowing for on-site oil purification without the need for costly transportation or installation procedures.

4. Integrated Monitoring and Control Interface

A user-friendly interface provides operators with comprehensive monitoring and control capabilities, allowing them to monitor purification process parameters, view real-time data, and adjust system settings as needed. Advanced diagnostic features and remote access functionality further enhance operational efficiency and troubleshooting capabilities, enabling proactive maintenance and minimizing downtime.

Applications and Benefits

1. Industrial Machinery and Equipment

The automatic control high precision mobile box type oil purifier equipment finds widespread applications in various industrial sectors, including manufacturing, power generation, transportation, and more. By maintaining the purity and quality of oils used in hydraulic systems, compressors, turbines, and other critical machinery, the equipment enhances equipment reliability, performance, and lifespan.

2. Transformer Maintenance and Insulation

Transformer oils play a crucial role in insulating and cooling electrical transformers, but they can degrade over time due to contamination and moisture ingress. The oil purification equipment helps extend the lifespan of transformers by removing harmful contaminants and moisture, thereby improving insulation performance and reducing the risk of equipment failure and downtime.

3. Oil Recycling and Environmental Sustainability

In addition to improving operational efficiency and equipment reliability, the automatic control high precision mobile box type oil purifier equipment contributes to environmental sustainability by facilitating oil recycling and reuse. By purifying used and contaminated oils, the equipment reduces the need for new oil production and minimizes waste generation, resulting in cost savings and environmental benefits.

4. Emergency Response and Maintenance

The mobility and versatility of the equipment make it ideal for emergency response situations and on-site maintenance operations. In the event of oil contamination or equipment malfunction, rapid deployment of the oil purification equipment can help mitigate risks, restore oil quality, and prevent costly downtime and repairs.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
