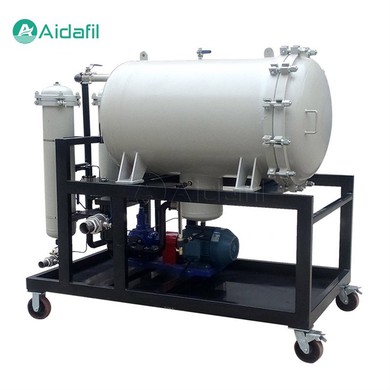

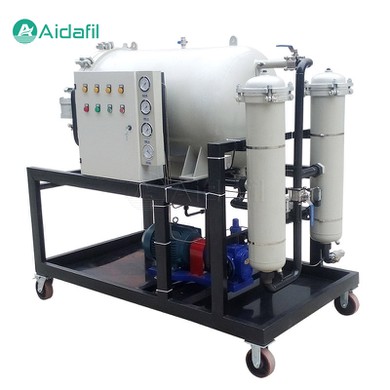

Insulating Oil Filtration Coalescence Dehydration Oil Purification Machine

The insulating oil filtration coalescence dehydration oil purification machine strives to remove contaminants, including free water and emulsified water, from insulating oil. This machine employs a sophisticated dual-filter system consisting of coalescence filter elements made from special hydrophilic materials and dehydrating filter elements constructed from hydrophobic materials. By integrating these advanced filters, the machine effectively separates water from oil, resulting in a cleaner and more reliable insulating oil for critical applications.

Component Overview

The heart of the insulating oil filtration coalescence dehydration oil purification machine lies in its specialized filter components. These are:

1. Coalescence Filter Elements

2. Dehydration Filter Elements

- Coalescence Filter Elements

The first stage of the purification process involves the use of coalescence filter elements. These elements are crafted from unique hydrophilic materials that attract and bind with water molecules. As the oil passes through the coalescence filter, the free water and emulsified water are drawn together, coalescing into larger diameter water droplets. The enlarged droplets are then much easier to separate from the oil due to their increased size and density.

- Dehydration Filter Elements

Following the coalescence stage, the oil moves on to the dehydration filter elements. Here, the role is played by hydrophobic materials, which naturally repel water but allow oil to pass through. The dehydration filter is designed to capture and remove the now larger water droplets that were formed in the previous stage. As the water droplets are separated, they are directed towards a collection point where they can be easily disposed of or recycled.

Operational Mechanism

The operational mechanism of the insulating oil filtration coalescence dehydration oil purification machine is straightforward yet highly effective. It begins with the introduction of the oil to be purified into the machine. As the oil flows through the system, it first encounters the coalescence filter elements. Here, the hydrophilic material attracts and combines the minute water particles, transforming them into larger droplets. This process not only prepares the water for separation but also helps to prevent damage to the subsequent filters by reducing the amount of particulate matter.

After passing through the coalescence stage, the oil-water mixture continues its journey through the dehydration filter elements. The hydrophobic nature of these filters repels water while allowing the oil to flow through. As the water droplets are larger and heavier than the oil, they are easily separated under the influence of gravity. They settle at the bottom of the machine, where they collect in a dedicated water storage tank.

Finally, the now cleansed and water-free oil is collected and redirected out of the machine, ready for reuse in its intended application. The entire process is highly efficient, ensuring that the oil is thoroughly purified and that any water contamination is effectively removed.

Benefits of the Machine

The insulating oil filtration coalescence dehydration oil purification machine offers a range of benefits for industries requiring clean and high-quality insulating oil. Some of the key benefits of this machine include:

1. Improved Insulating Oil Quality. By effectively removing water and impurities from insulating oil, the machine ensures that the oil meets industry standards for purity and performance.

2. Extended Equipment Lifespan. Clean and purified insulating oil helps to protect industrial machinery and equipment from wear and damage, ultimately extending their operational lifespan.

3. Enhanced Efficiency. Purified oil ensures smooth and efficient operation of machinery, reducing the risk of downtime and maintenance costs associated with oil contaminants.

4. Environmental Sustainability. By efficiently purifying insulating oil, the machine helps reduce the environmental impact of oil contamination and disposal, promoting sustainability practices.

Applications of the Machine

The insulating oil filtration coalescence dehydration oil purification machine is widely used in various industries that rely on insulating oil for their equipment and machinery. Some common applications of this machine include:

1. Power Generation Plants. The machine is used to purify insulating oil used in transformers, circuit breakers, and other electrical equipment to maintain optimal performance and safety.

2. Manufacturing Industry. Industries such as automotive, aerospace, and electronics use the machine to ensure the cleanliness of insulating oil in their machinery, improving production quality and efficiency.

3. Oil and Gas Industry. The machine plays a crucial role in purifying insulating oil used in drilling equipment, pumps, and compressors, ensuring reliable operation in demanding environments.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
