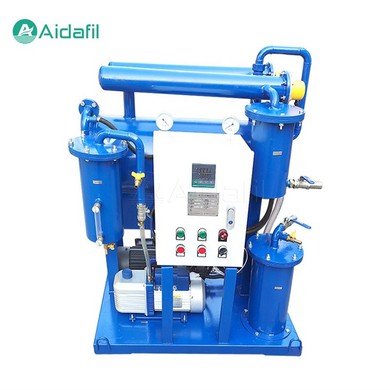

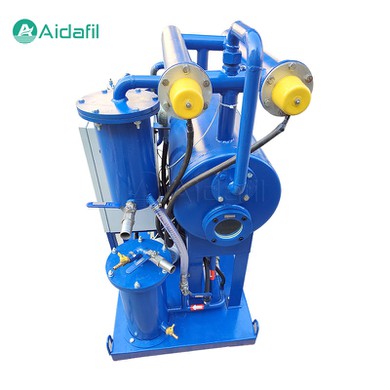

Carefully-Designed Insulating Oil Vacuum Oil Filter Machine

Insulating oils are critical components in transformers, circuit breakers, and other high-voltage equipment. They serve not only as insulators but also as coolants, helping to dissipate heat generated during operation. When oil becomes contaminated, its dielectric strength is reduced, increasing the likelihood of flashovers and short circuits. Additionally, contaminants can accelerate the aging of oil and equipment, leading to costly repairs and premature replacement.

The carefully-designed insulating oil vacuum oil filter machine is designed to remove moisture, impurities, and dissolved gases from insulating oils, restoring their original dielectric strength and extending their service life. By employing a combination of vacuum filtration and dehydration techniques, this machine ensures that oil meets or exceeds the required specifications for safe and efficient operation.

Functionality

The insulating oil vacuum oil filter machine operates by drawing the contaminated insulating oil into the machine under vacuum conditions. As the oil passes through the filtration system, impurities are captured and removed, leaving behind clean, pure oil. The filtered oil is then collected in a separate container for reuse or disposal.

One of the key advantages of the insulating oil vacuum oil filter machine is its ability to remove both solid and liquid contaminants from the insulating oil. This comprehensive filtration ensures that the oil remains free of harmful particles and moisture, which can degrade its insulating properties over time.

Parameters

Rated flow : 25 - 200 L/min

Working pressure : 0.6 Mpa

Rated vacuum : ≤ - 0.095 Mpa

Water content : 5 - 30 ppm

Air content : ≤ 0.2%

Coarse filter rating : 100 μm

Grade 1 filter rating : 10, 20 μm

Grade 2 filter rating : 3, 5 μm

Pressure differentials : 0.2Mpa

Voltage : AC 380V (Three-phase), 50Hz

Engineering Precision at Its Finest

The insulating oil vacuum oil filter machine is a meticulously crafted device, built with the utmost attention to detail. Its design incorporates advanced materials and components that are specifically chosen for their durability, efficiency, and compatibility with the filtering process. The machine's internal structure is optimized to maximize the surface area for oil-to-filter contact, ensuring that impurities are efficiently removed.

Technological Innovation at Work

At the heart of this machine lies its vacuum filtration system. This innovative technology uses a controlled vacuum environment to draw the insulating oil through a series of filters. The vacuum not only aids in the removal of particulate matter but also helps to degasify the oil, removing dissolved gases that can affect its insulating properties.

The filters themselves are designed to trap a wide range of contaminants, including water, dirt, and metallic particles. Their unique construction allows for easy replacement, ensuring that the machine can maintain its filtering efficiency over time.

Applications and Industries Served

The insulating oil vacuum oil filter machine finds widespread application in various industries where insulating oils are critical to the operation of electrical equipment. This includes power generation, transmission and distribution, substations, and renewable energy sectors. Whether it's routine maintenance or emergency restoration, this machine provides a versatile and effective solution for preserving the quality of insulating oils.

Ease of Operation and Maintenance

In addition to its filtering capabilities, the insulating oil vacuum oil filter machine is also designed for ease of operation and maintenance. Its user-friendly interface allows operators to quickly and accurately monitor the filtering process. The machine also incorporates safety features such as automatic shut-off in case of any malfunction, ensuring the safety of personnel and equipment.

Maintenance of the machine is also straightforward. Regular cleaning and filter replacements can be performed without the need for specialized tools or extensive training. This reduces downtime and ensures that the machine is always ready for use.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
