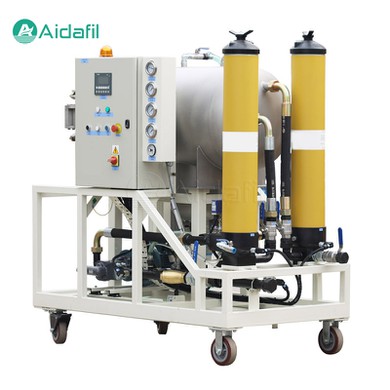

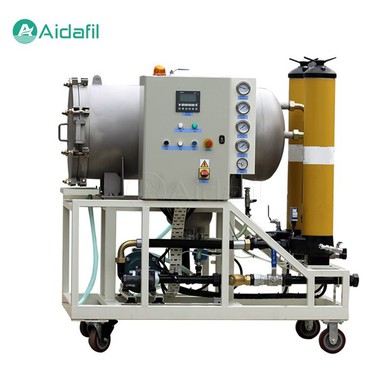

High Configuration Coalescence Separation Oil Purifier Machine

The High Configuration Coalescence Separation Oil Purifier Machine, commonly known as the Oil-Water Separation Filter Machine, is a sophisticated device designed to efficiently separate water from oil. This machine plays a crucial role in maintaining the quality of oil by removing unwanted water content, which can lead to corrosion, bacterial growth, and other detrimental effects on machinery and equipment.

The high configuration coalescence separation oil purifier machine is a precision-engineered system aims to tackle the challenging task of separating microscopic water droplets from oil. These droplets, often too small to be removed by conventional filtration, pose significant problems in hydraulic and lubrication systems. The process involves a series of steps where both physical filtration and surface chemistry come into play.

The Science Behind Coalescing Filtration

The process begins as oil enters the coalescence separation oil purifier machine and is directed through the coalescing cartridge. This cartridge acts as a filter, removing solid contaminants from the oil. More importantly, it has a unique capability - it encourages tiny water droplets to merge or "coalesce" into larger droplets. The science behind this is rooted in the surface energy of the filter material, which attracts water molecules and allows them to join together, increasing in size until they become heavy enough to overcome the oil's buoyancy.

Separation Cartridge: The Final Frontier

Once the water droplets have been enlarged, they settle due to gravity into a collection sump or trough. However, not all droplets may be large enough to be separated by this gravitational force alone. This is where the separation cartridge comes into play. As the oil continues its journey through the oil purifier machine, it encounters the separation cartridge. This component is designed with a hydrophobic (water-repelling) surface that selectively separates any remaining water droplets. The oil, being lipophilic (oil-loving), adheres to the cartridge while water is repelled and further drained away.

Maintenance and Longevity

Like any filtration system, regular maintenance is essential to ensure optimal performance and extend the lifespan of the coalescence separation oil purifier machine. This includes routine inspections, cartridge replacements, and cleaning of the collection sump. Proper maintenance practices can significantly impact the system's efficiency and longevity.

Wide Application

The coalescence separation oil purifier machine is widely used in oil and water separation systems. Its applications are diverse and include the filtration of transformer oil, hydraulic oil, turbine oil, and other oils. It is also used in marine engineering, power generation plants, petrochemical plants, and other industrial applications.

Parameters

Rated pressure (MPa) : 0.6

Initial pressure loss (MPa) : ≤0.1

Filtered water content (ppm) : ≤100

Coarse filtration (μm) : 100

Pressure differentials (MPa) : 0.2

Benefits

The design of the coalescence separation oil purifier machine takes into account the physical properties of both oil and water. For instance, the flow rate and viscosity of the oil are carefully calibrated to optimize the separation process. Similarly, the size and shape of the water droplets play a significant role in determining their ability to coalesce and sink.

One of the key benefits of the coalescence separation oil purifier machine is that it prolongs the lifespan of the oil and machinery. The separation of water from oil prevents corrosion and the formation of sludge which can cause wear and damage to machinery. Regular use of the coalescing and separating oil filter can also reduce maintenance costs.

An added benefit of using the coalescence separation oil purifier machine is their positive environmental impact. By reducing water contamination in oil, the machine minimizes the need for oil changes and disposal, thus reducing waste and conserving resources.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
