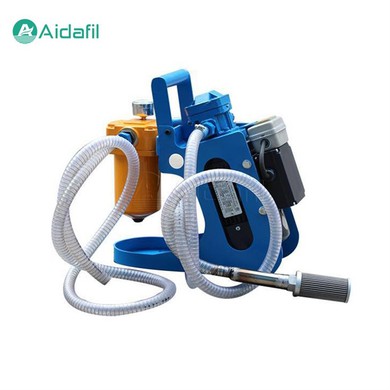

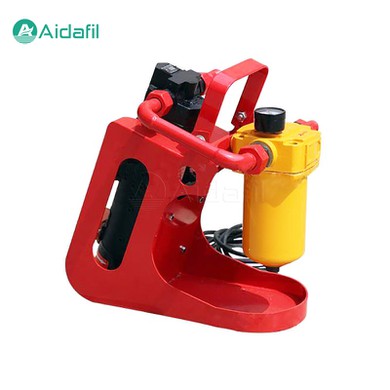

Lightweight Portable Oil Purifier
Product Details
Our AOP-P series lightweight portable oil purifier is a compact, efficient solution for on-site fluid filtration in various industrial settings. Designed for ease of use and high performance, these units are ideal for both routine maintenance and emergency situations where quick, reliable oil cleaning is necessary.
The lightweight portable oil purifier is designed with portability in mind, making it easy to transport and use in various locations. Its compact size allows it to be easily stored and transported without taking up too much space. It is user-friendly, with simple controls and an intuitive interface.
The AOP-P series portable oil purifier is equipped with advanced filtration technology that ensures efficient removal of impurities and particles from the oil. This results in cleaner, more refined oil that meets industry standards. It is constructed using high-quality materials that ensure its durability and reliability. This means that the machine can withstand harsh working conditions and continuous use without breaking down or losing its performance. Thanks to its robust design and advanced filtration technology, our oil purifier requires minimal maintenance.
Product features
1. Compact structure, small size, light weight, easy to carry and operate.
2. Filter elements are used internally for repeated use, saving money and not polluting the site.
3. Filtration accuracy and product specifications can be freely selected according to needs
4. Can be made into explosion-proof type as required.
Product parameters
|
Model |
AOP-P6 |
AOP-P10 |
AOP-P16 |
|
Rated Flow |
6 L/min |
10 L/min |
16 L/min |
|
Rated Pressure |
0.34 MPa |
0.34 MPa |
0.34 MPa |
|
Initial Pressure Loss |
≤ 0.02 MPa |
≤ 0.02 MPa |
≤ 0.02 MPa |
|
Coarse Filtering Precision |
40 meshes |
40 meshes |
40 meshes |
|
Fine Filter Precision |
3, 5, 10, 20, 40 μm |
3, 5, 10, 20, 40 μm |
3, 5, 10, 20, 40 μm |
|
Alarm Differential Pressure |
0.2 MPa |
0.2 MPa |
0.2 MPa |
|
Working Temperature |
6 - 80°C |
6 - 80°C |
6 - 80°C |
|
Recommended Viscosity |
10 - 160cSt |
10 - 160cSt |
10 - 160cSt |
|
Voltage |
AC 380V Three-phase, AC 220V Two-phase |
AC 380V Three-phase, AC 220V Two-phase |
AC 380V Three-phase, AC 220V Two-phase |
|
Motor Power |
0.18 kw |
0.25 kw |
0.35 kw |
|
Weight |
13 kg |
16 kg |
18 kg |
|
Dimensions ( L × W × H ) |
650 × 680 × 980 mm |
650 × 680 × 980 mm |
720 × 680 × 1020 mm |
Product application
1. Used for impurity filtration and oil delivery of transformer oil, hydraulic oil, lubricating oil, turbine oil and other fluids.
2. Suitable for field portable work and aerial work.
3. Work as a bypass part of hydraulic lubricating systems during the process of oiling and oil pumping
Operating procedures
Connect the power cord before operation. When turning it on, pay attention to whether the rotation direction of the motor is consistent with the direction of the arrow on the pump cover. If it is consistent, the switch can be started. The machine must be grounded when using it. When the machine is working normally, always pay attention to whether the pointer of the pressure gauge is normal. Generally, the working pressure is 0---0.39MPa. If the pressure exceeds 0.39MPa, it means that there is too much dirt and water on the filter element and the filter element should be replaced or cleaned. In order to ensure whether the filter oil is qualified during filtration, an oil sample can be taken at any time for determination. After filtering, clean the filter screen and drain the oil tank.
FAQ
1. What is an oil purifier, and how does it work?
An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.
2. What types of oils can be filtered using an oil purifier?
Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.
3. Can I dispose of the filtered oil safely?
Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.
4. Is it cost-effective to invest in an oil purifier?
Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
