High-Quality Ultra-Precision Oil Purifier
Product Details
AOP-S series ultra-precision oil purifier is responsible for filtering and purifying contaminated oil, restoring or improving the properties of the oil itself, such as cleanliness, water content, gas content, acid value, viscosity, flash point, insulation strength and color. It can effectively remove impurities in oil products and ensure the safe operation of oil equipment.
Our AOP-S series ultra-precision oil purifier functions to purify unqualified hydraulic oil and high-precision lubricating oil, filter out impurities and moisture in the oil, and thereby maintain and improve the operating efficiency and life of industrial equipment. These equipment are widely used in mining, metallurgy, petroleum, railway, machinery, chemical industry, textile, cement, power plants and instrumentation and other departments.

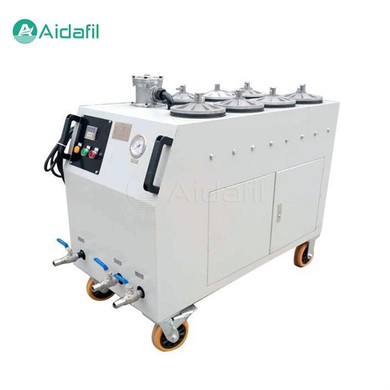

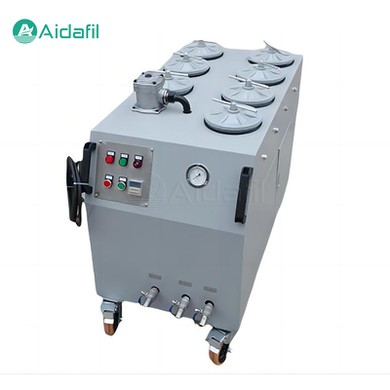

The advantage of the ultra-precision oil purifier is its high filtration accuracy and reasonable design. It can continuously purify oil, and the filtration precision can reach high grade at one time. The machine is composed of an independent oil pump, vacuum gauge, pressure gauge and multiple filter cylinders in parallel, and can provide customized solutions according to the different needs of users.
Product features
1. Large-scale and deep-seated precision filter media with strong ability to filter out impurities can remove particulate impurities and dust from oil.
2. Equipped with a filter element replacement indicator to facilitate the operator to replace the filter element.
3. Equipped with oil pumping and filtration conversion device, convenient for both oil pumping and filtration.
Product benefits
1. Prevent equipment failure due to oil contamination.
2. Increase production efficiency;
3. Extend the service life of hydraulic machines.
4. Extend the service life of the oil.
5. Reduce waste oil emissions and effectively protect the environment.
Product use
1. Our AOP-S series ultra-precision oil purifier is suitable for online or offline filtration and purification of hydraulic oil in hydraulic machinery such as injection molding machines, die-casting machines, excavators, and forklifts.
2. Our AOP-S series ultra-precision oil purifier can also be used for high-precision filtration of water glycol.
3. The purpose of ultra-precision oil purifier is to restore the physical and chemical performance indicators of oil, improve the oil quality, and ensure that the oil in the hydraulic system operates in a clean state for a long time, thus prolonging the service life of the oil, reducing the wear of mechanical equipment, improving production efficiency and reducing production costs.
Product parameters
|
Model |
AOP-S-3 |
AOP-S-6 |
AOP-S-9 |
AOP-S-12 |
AOP-S-15 |
AOP-S-18 |
AOP-S-24 |
|
Rated Flow |
3 L/min |
6 L/min |
9 L/min |
12 L/min |
15 L/min |
18 L/min |
24 L/min |
|
Rated Pressure |
1.6 MPa |
||||||
|
Initial Pressure Loss |
≤0.25 MPa |
||||||
|
Coarse Filtering Precision |
100 μm |
||||||
|
Fine Filter Precision |
NAS1638 3-6 Grade |
||||||
|
Cartridge Replacement Pressure Difference |
0.8 MPa |
||||||
|
Working Temperature |
5 -80 °C |
||||||
|
Recommended Viscosity |
10 - 180 cSt |
||||||
|
Voltage |
AC 380V Three-phase, 50Hz |
||||||
|
Motor Power |
0.2 kw |
0.2 kw |
0.4 kw |
0.4 kw |
0.55 kw |
0.75 kw |
0.75 kw |
|
Weight |
66 kg |
86 kg |
90 kg |
108 kg |
112 kg |
120 kg |
135 kg |
|
Dimensions |
380 × 500 × 680 mm |
380 × 500 × 680 mm |
600 × 500 × 680 mm |
600 × 500 × 680 mm |
860 × 500 × 1000 mm |
1100 × 500 × 1000 mm |
1100 × 500 × 1000 mm |
FAQ
1. What is an oil purifier, and how does it work?
An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.
2. What types of oils can be filtered using an oil purifier?
Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.
3. Can I dispose of the filtered oil safely?
Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.
4. Is it cost-effective to invest in an oil purifier?
Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
