Portable Oil Purifier For Hydraulic Lubrication Systems
Product Details

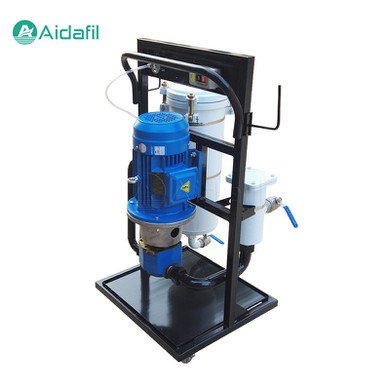

The AOP-M portable oil purifier for hydraulic lubrication systems is a compact and lightweight device used in hydraulic lubrication systems in various industries to filter out solid particles in the oil and prolong the use of hydraulic components; used for oil filtration during system refueling to improve the cleanliness of system crude oil; it is used for old oil recovery, reducing costs. This portable oil purifier can work independently of the main system as a bypass filter device. It has high precision and low noise, and is easy to use and maintain. The filter element inside the oil purifier can be selected according to user selection and requirements. (can be selected among 3μm, 5μm, 10μm, 20μm, 30μm, and 40μm.) Different filtration effects can be achieved by exchanging filter elements with different filtration accuracy.
Performance characteristics
1. The AOP-M series portable oil purifier includes a special gear pump driven by the motor, which has the characteristics of low noise, strong self-priming ability, and smooth operation.
2. The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
3. The portable oil purifier adopts the thermal relay protection to prevent motor damage caused by motor overload.
4. Coarse filter at the inlet port protects the oil pump and extends the service life of the main filter.
5. The precision filter can be selected according to the different needs of users to achieve the desired results.

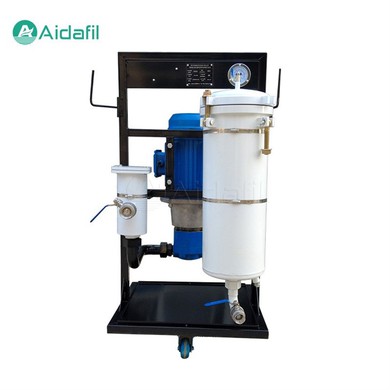

6. The oil purifier housing adopts a quick-opening structure, which can quickly and fast open the upper cover and replace the filter element without special tools. A pressure gauge is installed on the panel to continuously indicate the operating status of the system and the degree of contamination of the filter element during operation.
Product application
1. Filtration of hydraulic & lubrication systems when the oil is being added
2. Bypass filtration when the hydraulic lubrication system is working
3. Circulation filtration before the hydraulic lubrication system is put into operation
Product parameters
|
Model |
AOP-M25A |
AOP-M32A |
AOP-M40A |
AOP-M50A |
AOP-M63A |
AOP-M100A |
AOP-M150A |
|
Rated flow (L/min) |
25 |
32 |
40 |
50 |
63 |
100 |
150 |
|
Rated pressure (MPa) |
0.6 |
||||||
|
Initial pressure loss (Mpa) |
≤0.01 |
||||||
|
Coarse filtration precision (μm) |
100 |
||||||
|
Fine filtration precision (μm) |
3, 5, 10, 20, 30, 40 |
||||||
|
Pressure differentials |
0.2 MPa |
||||||
|
Working temperature (°C) |
5 - 80 |
||||||
|
Recommended viscosity (cSt) |
10 - 160 |
||||||
|
Voltage |
AC 380V Three-phase 50Hz |
||||||
|
Motor power (kw) |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
2.2 |
3.0 |
|
Weight (kg) |
35 |
64 |
75 |
80 |
85 |
100 |
135 |
|
Dimensions (mm) |
430 × 350 × 950 |
430 × 350 × 950 |
720 × 680 × 1020 |
720 × 680 × 1020 |
720 × 680 × 1020 |
720 × 750 × 1020 |
720 × 750 × 1020 |
Product benefits
1. Improved oil quality. By removing harmful substances, the portable oil purifier improves oil quality, prolonging its service life.
2. Equipment protection. By removing impurities and water from the oil, the purifier reduces equipment wear and tear, extending the equipment's lifespan.
3. On-site processing. The compact and lightweight design makes it suitable for on-site rapid oil filtration and purification.
4. Easy operation. The portable oil purifier is user-friendly and requires minimal maintenance, with an automatic control system that allows users to adjust operating parameters as needed.
FAQ
1. What is an oil purifier, and how does it work?
An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.
2. What types of oils can be filtered using an oil purifier?
Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.
3. Can I dispose of the filtered oil safely?
Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.
4. Is it cost-effective to invest in an oil purifier?
Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
