Vacuum Oil Purifier
Product Details

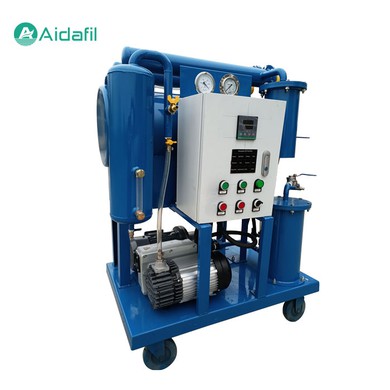

AOP Vacuum turbine oil purifier is mainly used to treat substandard turbine oil, especially suitable for severely emulsified turbine oil. It can quickly and efficiently remove water, gas and impurities from the oil, The filtered oil quality index reaches the new oil standard to ensure the safe operation of the steam turbine unit. This machine uses special high-molecular material as the filtering medium, it integrates emulsification, dehydration, and impurity removal as a whole. Combined with vacuum separation technology, it can demulsify, dehydrate, remove acid, and remove impurities online. It is the ideal equipment for on-line processing of turbine oil, low viscosity lubricating oil and hydraulic oil. This product is widely used in electric power, machinery, metallurgy, petrochemical, military, paper-making, home appliance manufacturing, hydraulic lubrication and other industrial industries to purify turbine oil, lubricating oil, hydraulic oil, refrigerating machine oil, and mechanical oil. Meet the needs of high-precision oil.
Features:
◆ The water separator uses high-molecular coalescing material as filtering medium, which integrates emulsification, dehydration and impurity removal.
◆ Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.
◆ High-efficiency vacuum dehydration and degassing: Duplex-Stereo film evaporation technology
◆ Excellent heating system: carbon fiber electric heater with long service life, low heating surface load, linear temperature rise, preventing oil cracking, keeping oil uniform heating.
◆ Automatic control to realize unattended, safe and stable working.
◆ Safety interlock protection: oil pump, vacuum pump, heater interlock protection
◆ Humanized instructions: automatic design, and there are instructions such as oil temperature gauge, pressure gauge, vacuum gauge, filter pollution alarm, operating status and so on.
◆ This machine has the advantages of low noise, easy operation, long maintenance interval, low energy consumption, low operating cost, high oil filtration efficiency, long lifetime, etc.
Optional Device:
A- Optional PLC control.
B- Oil pump set, vacuum pump set, filter element and electrical parts are selected imported brand products.
C- Flow meter, online moisture monitoring
D- Select the appropriate explosion-proof level according to the working environment (ExdII BT4 / ExdII CT4)
Technical Parameters:
|
Index |
Unit |
AOP-10 |
AOP-20 |
AOP-30 |
AOP-50 |
AOP-100 |
AOP-150 |
AOP-200 |
AOP-300 |
|
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
|
Working Vacuum |
MPa |
-0.06～-0.095 |
||||||||
|
Working Pressure |
MPa |
≤0.4 |
||||||||
|
Working Temperature |
℃ |
20 ～80 |
||||||||
|
Power Supply |
380V 50HZ,3Ph (or According to user demand) |
|||||||||
|
Working Noise |
dB(A) |
≤65～80 |
||||||||
|
Heating Power |
Kw |
18 |
18 |
18 |
24 |
48 |
72 |
96 |
120 |
|
|
Total Power |
Kw |
20.5 |
20.5 |
20.5 |
27 |
52.5 |
78 |
102 |
128.5 |
|
|
Inlet / Outlet |
mm |
25 |
25 |
25 |
32 |
40 |
50 |
50 |
65 |
|
|
Weight |
kgs |
450 |
500 |
550 |
600 |
800 |
1000 |
1200 |
1550 |
|
|
Dimension |
L |
mm |
1550 |
1550 |
1550 |
1600 |
1650 |
1700 |
1800 |
1850 |
|
W |
mm |
1150 |
1150 |
1150 |
1250 |
1350 |
1450 |
1550 |
1650 |
|
|
H |
mm |
1700 |
1700 |
1700 |
1750 |
1800 |
1800 |
1850 |
1850 |
|
|
After Purification |
||||||||||
|
Demulsification value |
min |
≤15/min(GB/F7035) |
||||||||
|
Water Content |
ppm |
≤80 |
||||||||
|
Gas Content |
% |
≤0.1 |
||||||||
|
Cleanness |
≤NAS 6 |
|||||||||
