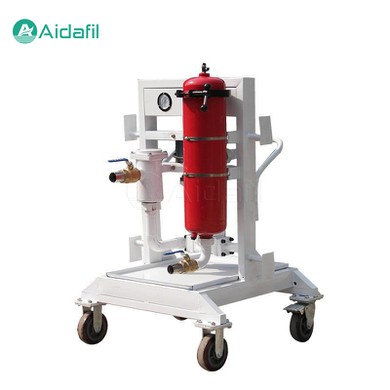

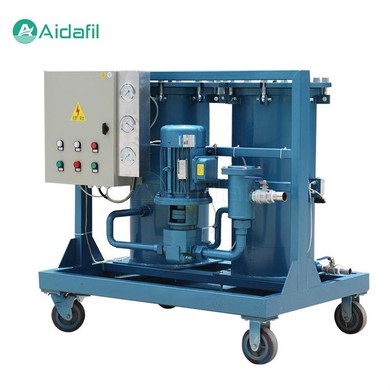

High Solid Content Oil Purifier
Product Details
Our high quality AOP-V high solid content oil purifier is particularly suitable for high solid content occasions, especially suitable for waste oil regeneration as well as hydraulic oil clarification and filtration. Special filter materials has been adopted for producing filter elements. As a result, the filter layer thickness is large, 10 to 15 times that of ordinary filter material, characterized by high filtration efficiency, leading to effectively remove suspended solids, particles, rust in the liquid, etc. With a structure with gradual change in air diameter, the filter aperture of the oil purifier is large on the outside and small on the inside, creating excellent deep filtration effect.
Product features
1. The AOP-V high solid content oil purifier adopts an appropriative pump for high viscosity oil, providing smooth fluid delivery, no pulsation, low noise, low vibration, and strong self-priming ability.
2. The AOP-V high solid content oil purifier can filter a variety of corrosive media and operate at temperatures up to 200 °C.
3. The AOP-V high solid content oil purifier is particularly suitable for the filling and filtration of high-viscosity oils.
4. The pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
5. The thermal relay protection is adopted to prevent motor damage caused by motor overload.
6. The coarse filter at the inlet port protects the oil pump and extends the service life of the main filter.
7. The fine filter can be selected with different precision according to the different needs of users to achieve the required requirements
Product advantages
1. Efficient purification. The AOP-V high solid content oil purifier can quickly and effectively remove moisture, gases, impurities and high solid content substances from the oil, improving the quality of the oil.
2. High solids handling capacity. With strong handling capacity and high solids content tolerance, the AOP-V high solid content oil purifier is specially designed to handle high solids content oils.
3. Energy saving and emission reduction. The AOP-V high solid content oil purifier can reduce the water content and gas content of the oil, improve the performance of the oil, and reduce energy consumption and environmental pollution.
4. Easy to maintain. The equipment is easy to operate, easy to maintain, and has an automatic control system that can adjust operating parameters according to actual needs.
5. Wide range of applications. The AOP-V high solid content oil purifier is suitable for various industrial fields, such as power, steel, chemical industry, mining, etc., effective filtration of various lubricating oils, hydraulic oils, transformer oils, etc.
Product parameters
|
Model |
AOP-V32 |
AOP-V50 |
AOP-V100 |
AOP-V150 |
AOP-V200 |
|
Rated flow (L/min) |
32 |
50 |
100 |
150 |
200 |
|
Rated pressure (MPa) |
0.6 |
||||
|
Initial pressure loss (Mpa) |
≤0.1 |
||||
|
Coarse filtration precision (μm) |
180, 120, 80 |
||||
|
Grade 1 filter rating (μm) |
5, 10, 15 |
||||
|
Grade 2 filter rating (μm) |
3 |
||||
|
Pressure differentials |
0.2Mpa |
||||
|
Recommended viscosity (cSt) |
10 - 160 |
||||
|
Voltage |
AC 380V Three-phase 50Hz |
||||
|
Motor power (kw) |
0.75 |
1.1 |
2.2 |
3.0 |
5.5 |
|
Weight (kg) |
220 |
250 |
360 |
480 |
600 |
|
Dimensions (mm) |
900 × 600 × 1080 |
1000 × 600 × 1080 |
1200 × 880 × 1280 |
1200 × 880 × 1520 |
1350 × 900 × 1870 |
Application field
The AOP-V high solid content oil purifier is suitable for the degassing, filtration and purification of the transformer oil, turbine oil, lubricating oil, hydraulic oil and other industrial oils in the power generation industry as well as the electrical appliance manufacturers, paper mills, electrochemical plants, industrial and mining enterprises.
FAQ
1. What is an oil purifier, and how does it work?
An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.
2. What types of oils can be filtered using an oil purifier?
Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.
3. Can I dispose of the filtered oil safely?
Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.
4. Is it cost-effective to invest in an oil purifier?
Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
Why choose us
· Professional manufacturer with many years' experience
· Good quality with competitive price
· OEM & ODM are welcome
· Various payment items are acceptable
· Good service by experienced manager
Enterprise tenet: Honest first, quality foremost
Operation belief: Establishment of AIDA brand and satisfaction of users are our persistent pursuit.
Service tenet: Responsible for every procedure; responsible for every machine; responsible for every customer.
