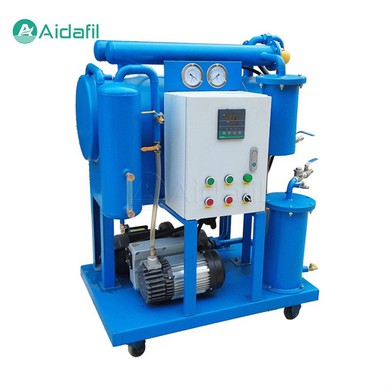

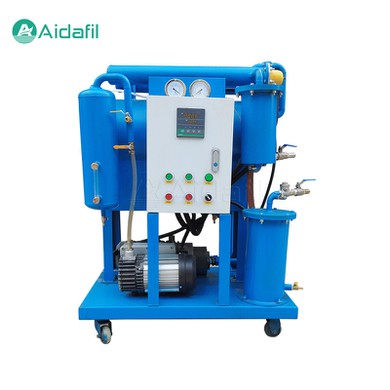

Transformer Oil High Vacuum Oil Dehydration Purifier

Transformer oil plays an important role in maintaining the lifespan and functionality of high voltage transformers. It acts as an insulator, coolant, and arc suppressant while being subjected to high voltages and currents. However, over time, transformer oil gets contaminated with moisture, gas, and other impurities which result in the breakdown of the insulation properties and mechanical strength of the oil. This leads to transformer failures, which disrupt power supply and cause financial losses. To prevent such failures, transformer oil must be periodically filtered and dehydrated to remove contaminants and maintain the oil's dielectric strength. This is where the Transformer Oil High Vacuum Oil Dehydration Purifier comes into the picture.

What is Transformer Oil High Vacuum Oil Dehydration Purifier?

The transformer oil high vacuum oil dehydration purifier is a specialized equipment that is used to purify transformer oil and remove moisture, gas, and other impurities. It employs high vacuum technology to remove moisture, impurities, and other harmful substances from transformer oil.

Parameters of Transformer Oil High Vacuum Oil Dehydration Purifier

Flow Rate : 25 - 200 L/min

Rated pressure : 0.6 Mpa

Rated vacuum : ≤-0.095

Filtered water content : 5-30 ppm

Filtered air content : ≤0.2%

Coarse filter rating : 100 μm

Fine filter rating : 3, 5, 10, 20 μm

Voltage : Three-phase AC380V, 50Hz

Transport Package : Wood Carton

Customization: Available

Why Use Transformer Oil High Vacuum Oil Dehydration Purifier?

The transformer oil in high voltage transformers is subjected to high voltages and currents, which cause it to break down and form acids, sludge, and other contaminants. These contaminants can impact the oil's dielectric strength, diminish the cooling effect, and cause mechanical wear and tear to the transformer components. This results in decreased transformer lifespan and increased transformer downtime. The transformer oil high vacuum oil dehydration purifier is used to remove these contaminants and improve the dielectric strength of the oil. The process of purifying the transformer oil with this equipment ensures that the oil stays in optimal condition and protects the transformer from any damage caused by contaminated oil. This ultimately translates to longer transformer life and lower maintenance costs.

Benefits of Using Transformer Oil High Vacuum Oil Dehydration Purifier

There are several benefits to using the transformer oil high vacuum oil dehydration purifier, including:

1. Improved dielectric strength. The removal of impurities results in improved dielectric strength, which ensures optimal insulation properties and maximizes the lifespan of the transformer.

2. Reduced transformer downtime. By using this equipment, the transformer's maintenance needs are reduced, and the transformer downtime is minimized. The result is improved power supply and lower maintenance costs.

3. Enhanced cooling effect. Dehydrated transformer oil has better cooling properties, which translates to improved transformer performance and reduced chances of overheating.

4. Increased transformer lifespan. Removing contaminants and moisture prolongs the life of the transformer by preventing mechanical wear and tear due to contaminated oil, which ultimately leads to reduced operating costs.

5. Cost-effective. The transformer oil high vacuum oil dehydration purifier requires a one-time investment and reduces transformer downtime, which saves on maintenance, repair, and replacement costs.

Applications of the Transformer Oil High Vacuum Oil Dehydration Purifier

The transformer oil high vacuum oil dehydration purifier finds applications in various industries and settings, including:

1. Power generation and distribution companies. These companies use the purifier to maintain the efficiency and reliability of their transformers and other electrical equipment.

2. Industrial plants. The purifier is employed in industrial plants to ensure the safe and efficient operation of transformers and other electrical equipment.

3. Utilities and municipalities. Utilities and municipalities use the transformer oil high vacuum oil dehydration purifier to maintain the integrity of their electrical infrastructure, reducing the risk of outages and improving system reliability.

4. Oil and gas industry. The purifier is used in the oil and gas industry to maintain the performance of transformers and other electrical equipment in harsh and corrosive environments.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
