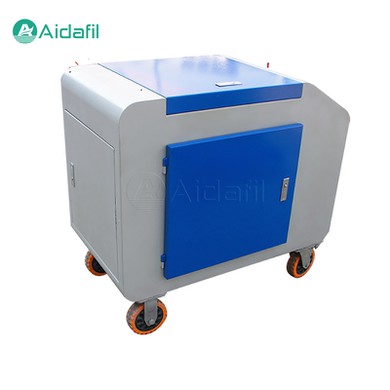

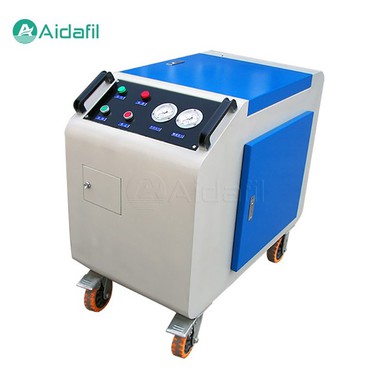

Low-Noise Box Type Mobile Oil Purifier
Product Details
A low-noise box type mobile oil purifier is a self-contained, portable unit designed to remove contaminants from lubricating oils, hydraulic fluids, and other similar liquids. Its primary function is to restore the oil's properties, prolonging the service life of machinery and reducing downtime due to oil-related issues. What sets it apart from conventional purifiers is its unique ability to operate at exceptionally low noise levels, making it ideal for use in noise-sensitive environments or during off-hours in facilities where minimizing disturbance is crucial.
The box type mobile oil purifier's effectiveness lies in its advanced filtration technology. It employs a combination of coarse and fine filters to remove solid particles, water, and other contaminants from the oil. The coarse filter captures larger debris, while the fine filter targets smaller particles, ensuring that the oil is thoroughly cleansed. The purifier's robust construction ensures durability and reliability. Built with high-quality materials, it can withstand harsh environmental conditions and heavy use. Regular maintenance, such as filter changes and cleaning, helps to maintain its peak performance over time.
Product highlights
- The top design allows quick opening of the structure for easy replacement of the filter element.
- The magnetic starter is equipped with thermal relay protection to protect the motor, making it durable.
- High quality wheels and bearings with smooth running and no noise.
- Pre-filtration plus fine filtration, bringing about double filtration area and long service life, and dewatering filter is optional.
- The housing can be made with stainless steel material.
Design and Components
The low-noise box type mobile oil purifier features a compact, modular design, enclosed within a robust, sound-insulated casing. This construction effectively dampens operational noise, ensuring minimal disturbance to the surroundings. Key components of the system include:
a) High-efficiency filtration system. Employing multi-stage filtration techniques, such as depth filtration, coalescing, and absolute-rated filters, the purifier captures particulate matter, water, gases, and other impurities down to micron-level precision. These filters can be easily replaced or cleaned as needed, ensuring continuous, effective purification.
b) Quiet-running pump. Equipped with a low-noise, high-efficiency pump, the purifier delivers a steady flow of oil through the filtration stages without generating excessive noise. The pump's design incorporates noise-reducing features, such as vibration-dampening mounts and precision-balanced components.
c) Advanced control panel. A user-friendly control panel allows for easy monitoring and adjustment of operational parameters, including flow rate, temperature, and pressure. It may also incorporate real-time contamination monitoring and automatic shutdown features for added safety and convenience.
d) Portable and maneuverable. Mounted on wheels or casters, the mobile oil purifier can be easily transported and positioned near the equipment requiring oil treatment. This versatility eliminates the need for lengthy oil transfer lines, reducing the risk of contamination during handling.
Product parameters
|
Rated flow rate |
32 L/min - 100 L/min |
|
Rated pressure |
0.6 MPa |
|
Initial pressure loss |
≤ 0.02 MPa |
|
Fine filtration rating |
3 μm, 5 μm, 10 μm, 20 μm |
|
Coarse filtration precision |
100 μm |
|
Differential pressure |
0.2 MPa |
|
Working temperature |
5°C - 80°C |
|
Recommended viscosity |
10 cSt - 160 cSt |
|
Voltage |
AC 380V Three-Phase 50Hz |
Product benefits
The key benefits of utilizing a Low-Noise Box Type Mobile Oil Purifier include:
i) Enhanced equipment reliability. By removing contaminants, the purifier maintains oil cleanliness levels that prolong the lifespan of critical components, reduce wear, and minimize the risk of system failures.
ii) Cost savings. Regular oil purification eliminates the need for frequent oil changes, reduces waste disposal costs, and lowers the likelihood of expensive equipment repairs or replacements.
iii) Environmental sustainability. Minimizing oil consumption and waste generation contributes to a reduced carbon footprint and aligns with corporate sustainability goals.
iv) Noise reduction. The low-noise operation allows for use in noise-sensitive environments, during off-hours, or in close proximity to workers without causing disturbance, enhancing workplace comfort and safety.
v) Flexibility and convenience. The mobile nature of the purifier enables quick deployment wherever needed, eliminating the need for fixed installations and facilitating on-demand oil treatment.
Product applications
The low-noise box type mobile oil purifier is mainly used in mining, metallurgy, petroleum, railway, mechanical and chemical industry, textile, cement, power plant, instrument and other departments.
Applicable oils: Hydraulic oil, turbine oil, gear oil, lubrication oil, engine oil, transformer oils, etc.
FAQ
1. What is an oil purifier, and how does it work?
An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.
2. What types of oils can be filtered using an oil purifier?
Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.
3. Can I dispose of the filtered oil safely?
Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.
4. Is it cost-effective to invest in an oil purifier?
Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
