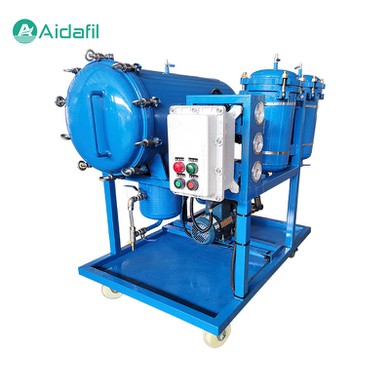

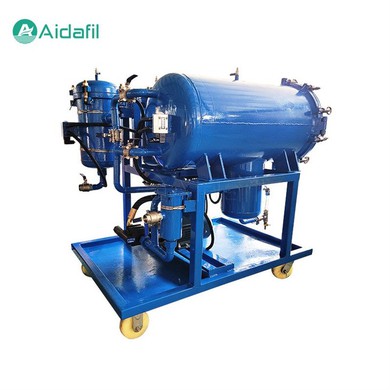

Hydraulic Oil Coalescence Dehydration Oil Purifier

Hydraulic systems are an integral part of various industrial and commercial applications, ranging from construction and manufacturing to transportation and mining. The performance and reliability of these systems depend heavily on the quality of the hydraulic oil used. Contaminants in hydraulic oil, such as water, particles, and air, can lead to system malfunctions, reduced efficiency, and premature component failure.

To ensure optimal hydraulic system performance, regular maintenance and filtration of the oil are crucial. Hydraulic oil coalescence dehydration oil purifiers play a vital role in removing these contaminants, restoring the oil's quality, and extending the lifespan of hydraulic components.

What is a Hydraulic Oil Coalescence Dehydration Oil Purifier?

A hydraulic oil coalescence dehydration oil purifier is a specialized device designed to remove water from hydraulic oil. It employs a combination of physical processes, such as coalescence and dehydration, to effectively purify the oil and restore its original properties.

How Does a Hydraulic Oil Coalescence Dehydration Oil Purifier Work?

The operation of a hydraulic oil coalescence dehydration oil purifier typically involves several stages:

- Pre-filtration. The oil is passed through a pre-filter to remove larger particles and debris.

- Coalescence. The oil enters a coalescer, where water droplets are agglomerated into larger droplets. This is achieved through the use of a coalescing media, which provides a large surface area for water droplets to adhere to.

- Dehydration. The coalesced water droplets are then separated from the oil using a dehydration unit.

- Final Filtration. The dehydrated oil is passed through a final filter to remove residual moisture.

Benefits of Using a Hydraulic Oil Coalescence Dehydration Oil Purifier

Using a hydraulic oil coalescence dehydration oil purifier offers numerous benefits for hydraulic systems:

- Improved Oil Quality. The purifier effectively removes contaminants, restoring the oil's original properties and ensuring optimal performance.

- Extended Component Life. Clean oil reduces wear and tear on hydraulic components, extending their lifespan and reducing maintenance costs.

- Enhanced System Efficiency. Contaminants can impede the flow of oil and reduce system efficiency. Purified oil ensures smooth operation and maximum efficiency.

- Reduced Downtime. Regular oil purification helps prevent system failures and minimizes unplanned downtime, improving productivity.

- Cost Savings. By extending component life and reducing downtime, oil purifiers can save significant costs in the long run.

Technical parameters

Rated flow (L/min) : 25 - 400

Rated pressure (MPa) : 0.6

Initial pressure loss (Mpa) : ≤ 0.1

Filtered water content : ≤ 100 ppm

Coarse filtration (μm) : 100

Grade 1 filter rating (μm) : 10, 20

Grade 2 filter rating (μm) : 3, 5

Pressure differentials : 0.2 Mpa

Working temperature (°C) : 25 - 80

Recommended viscosity (cSt) : 10 - 120

Voltage : AC 380V (Three-phase),50Hz

Motor power (kw) : 0.75 - 13

Weight (kg) : 150 - 2860

Applications

The hydraulic oil coalescence dehydration oil purifier finds wide-ranging applications across various industries, including:

- Manufacturing. Hydraulic systems in manufacturing plants are subject to high workloads and demanding operating conditions. The purifier ensures the continuous operation of hydraulic machinery, minimizing production disruptions and maintaining product quality.

- Construction. Construction equipment, such as excavators, cranes, and bulldozers, heavily rely on hydraulic systems. The purifier helps maintain optimum performance and reliability of these machines, even in dusty and harsh environments.

- Power Generation. Hydraulic systems are extensively used in power plants for turbine control, dam gate operation, and cooling systems. The purifier safeguards the integrity of these critical systems, reducing the risk of costly breakdowns and power outages.

- Transportation. Hydraulic systems in commercial vehicles, airplanes, and ships require clean oil to ensure smooth operation and safety. The purifier offers a reliable solution for maintaining the performance and efficiency of these hydraulic systems.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
