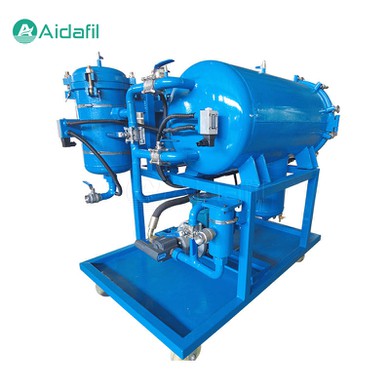

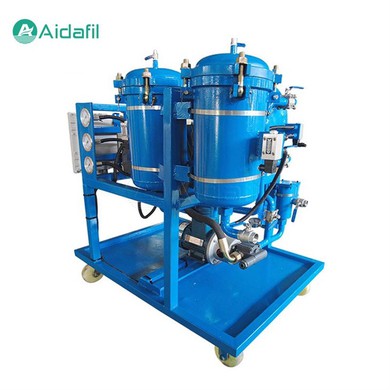

Turbine Oil Coalescing Dehydration Oil Purifier
Product Details
Turbine oil is essential for the smooth and efficient operation of turbines. However, over time, turbine oil can become contaminated with water and other impurities, which can lead to a number of problems, including:
- Reduced oil life
- Increased wear and tear on turbine components
- Increased risk of breakdowns
To prevent these problems, it is important to regularly clean and dehydrate turbine oil. One of the most effective ways to do this is to use a turbine oil coalescing dehydration oil purifier.
The turbine oil coalescing dehydration oil purifier is a device that uses a combination of coalescing and dehydration technologies to remove water and other impurities from turbine oil. It integrates two functions of precision filtration and high-efficiency dehydration.
The turbine oil coalescing dehydration oil purifier employs advanced filtration and dehydration techniques to remove contaminants from turbine oils effectively. Its primary functions include:
Coalescing Filtration: The purifier utilizes coalescing filters to capture and merge tiny water droplets suspended in the oil into larger droplets, facilitating easier removal. This process is essential for effectively separating water from the oil phase.
Dehydration: Through various dehydration methods such as vacuum dehydration or adsorption, the purifier removes dissolved water molecules from the oil. This is crucial as even small amounts of water can significantly degrade the oil's performance and lead to equipment malfunction.
Product highlights
- Strong ability to filter impurities and break emulsification.
- high-quality filter materials, with good anti-corrosion, high temperature resistance, mechanical strength
- Coalescence separation combined with vacuum dehydration
- Advanced medium condensing device
- HPM polymer absorbing material is used
- Using 3D stereoscopic evaporation technology, odor and gas in the oil can be quickly separated.
Product parameters
Flow rate : 25 - 400L/min
Rated pressure : 0.6MPa
Initial pressure loss : ≤ 0.1MPa
Filtered water content : ≤ 100ppm
Coarse filter rating : 100μm
Grade 1 fine filter rating : 10, 20μm
Grade 2 fine filter rating : 3, 5μm
Pressure differentials : 0.2Mpa
Working temperature : 25 - 80°C
Recommended viscosity : 10-120cSt
Voltage : AC 380V Three-phase 50Hz
Motor power : 0.75 - 13kw
Functions and Benefits
The primary functions of the turbine oil coalescing dehydration oil purifier are to:
1. Remove Contaminants. By combining multiple purification techniques, the purifier effectively eliminates solid particulates, water, and other impurities, ensuring that the turbine oil remains clean and within the required ISO cleanliness codes.
2. Reduce Oxidation and Corrosion. By removing water and dissolved gases, the purifier minimizes the risk of oxidative degradation, rust formation, and corrosion of metal surfaces within the turbine, prolonging the service life of both the oil and the equipment.
3. Maintain Oil Viscosity and Lubricity. Clean oil with minimal water content ensures optimal lubrication properties, reducing friction and wear between moving parts, and maintaining the efficiency and reliability of the turbine.
4. Extend Oil Drain Intervals. Regular use of the purifier can significantly extend oil drain intervals, reducing the frequency of oil changes and the associated costs, waste generation, and environmental impact.
5. Prevent System Failures. By preventing the accumulation of harmful contaminants, the purifier helps avoid catastrophic failures, unplanned downtime, and costly repairs, ultimately contributing to improved overall plant productivity and profitability.
Application
The versatility of the turbine oil coalescing dehydration oil purifiers makes them suitable for a wide range of applications across various industries, including:
1. Power Generation. Used in gas turbines, steam turbines, and hydroelectric turbines to maintain oil quality and performance.
2. Manufacturing. Employed in machinery such as compressors, pumps, and hydraulic systems to ensure smooth operation and minimize downtime.
3. Oil Refining. Utilized in refining processes to purify turbine oils used in critical equipment like pumps, motors, and generators.
4. Marine Industry. Installed on ships and offshore platforms to purify lubricating oils used in propulsion systems and auxiliary machinery.
FAQ
1. What is an oil purifier, and how does it work?
An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.
2. What types of oils can be filtered using an oil purifier?
Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.
3. Can I dispose of the filtered oil safely?
Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.
4. Is it cost-effective to invest in an oil purifier?
Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
