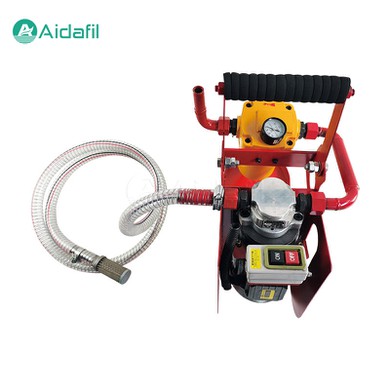

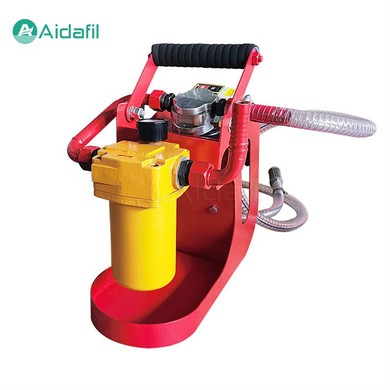

Compact Handheld Transformer Oil Filtering Machine
Product Details
The compact handheld transformer oil filtering machine is indispensable tools for removing contaminants, moisture, and dissolved gases from the oil, thereby restoring its dielectric strength and prolonging transformer life.
Transformer oil plays a crucial role in cooling and insulating transformers. Over time, contaminants such as moisture, dirt, and gases accumulate in the oil, degrading its dielectric strength and thermal conductivity. This deterioration can lead to decreased transformer efficiency and eventual failure. Oil filtration is thus indispensable for removing these contaminants and restoring oil quality.
What is a Compact Handheld Transformer Oil Filtering Machine?
A compact handheld transformer oil filtering machine is a portable, user-friendly device designed for on-site oil purification in transformers. Unlike larger, industrial-grade filtering systems, handheld machines are lightweight and compact, making them ideal for applications where space is limited or accessibility is challenging.
Despite its compact size, the handheld transformer oil filtering machine is capable of filtering oil at a rate of 10 liters per minute, ensuring efficient and timely oil purification. It is capable of removing not only solid particles but also water and other impurities, effectively restoring the oil's insulating and cooling properties.
The handheld transformer oil filtering machine is equipped with a user-friendly control panel, featuring a clear and intuitive interface. This allows operators to easily adjust the filtration parameters, such as the flow rate and pressure, according to the specific requirements of the task at hand.
Features and Functionality of a Compact Handheld Transformer Oil Filtering Machine
Compact handheld transformer oil filtering machines are innovative devices designed to streamline the oil filtration process. These machines typically feature:
1. Portability. Unlike traditional bulky filtration equipment, compact handheld machines are lightweight and portable, allowing technicians to perform filtration tasks conveniently, even in confined spaces or remote locations.
2. Ease of Use. These machines are user-friendly, requiring minimal setup and operation. Intuitive interfaces and ergonomic designs enhance usability, enabling technicians of varying skill levels to perform oil filtration efficiently.
3. Efficiency. Equipped with advanced filtration technologies, these machines offer rapid and thorough oil purification. High-performance filtration systems remove contaminants effectively, restoring oil quality and prolonging transformer lifespan.
4. Safety Features. Safety is paramount in transformer maintenance operations. Compact handheld filtering machines incorporate safety mechanisms such as overpressure protection and automatic shutdown functions, ensuring operator and equipment safety during filtration procedures.
5. Cost-effectiveness. By streamlining the oil filtration process and minimizing downtime, compact handheld machines contribute to cost savings for organizations. Reduced labor and maintenance expenses, coupled with improved transformer performance, yield significant long-term benefits.
Product Application
In terms of applications, the compact handheld transformer oil filtering machine is versatile and can be used in a wide range of industries, including power generation, transmission, and distribution, as well as in substations and other electrical installations. It is particularly useful for on-site maintenance and emergency repairs, where access to large-scale oil filtering equipment may be limited.
One of our customers implemented compact handheld transformer oil filtering machines in its maintenance operations. By integrating these innovative devices, the company achieved remarkable results:
- Reduced maintenance time. Compact handheld machines facilitated quicker oil filtration, reducing maintenance time by 30%.
- Improved transformer Reliability. Enhanced oil quality led to improved transformer reliability, reducing the frequency of unplanned downtime and service disruptions.
- Cost savings. The company realized significant cost savings through reduced labor and maintenance expenses, as well as extended transformer lifespan.
Product Parameters
|
Rated flow |
6 L/min, 10 L/min, 16 L/min |
|
Rated pressure |
0.34 MPa |
|
Original pressure loss |
≤ 0.02 MPa |
|
Coarse filtration accuracy |
40 meshes |
|
Fine filtration accuracy |
3 μm, 5 μm, 10 μm, 20 μm, 40 μm |
|
Alarm differential pressure |
0.2 MPa |
|
Use temperature |
6 - 80°C |
|
Recommended viscosity for use |
10 - 160cSt |
|
Power supply |
AC380V three-phase, AC220V three-phase |
FAQ
1. What is an oil purifier, and how does it work?
An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.
2. What types of oils can be filtered using an oil purifier?
Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.
3. Can I dispose of the filtered oil safely?
Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.
4. Is it cost-effective to invest in an oil purifier?
Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
