Efficient Vacuum Oil Purifier
Product Details

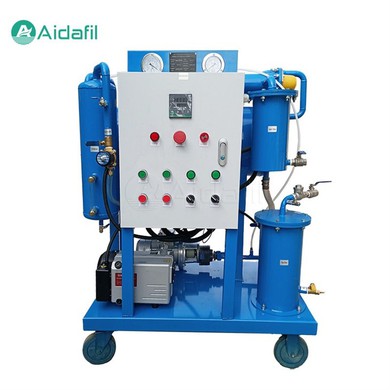

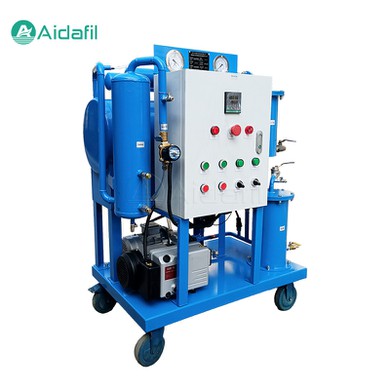

The AOP-1V efficient vacuum oil purifier is a special equipment for power sector and industrial and mining enterprises to purify and treat unqualified transformer oil, switching oil and capacitor oil. It can quickly remove moisture, particulate matter and gas in the oil, and improve the withstand voltage value of electrical insulating oil. It can handle unqualified transformer oil online, and can also dry damp electrical equipment and carry out vacuum oil injection.
The AOP-1V efficient vacuum oil purifier employs physical means to quickly remove a large amount of moisture, impurities and gases (acetylene, hydrogen, methane, etc.) contained in the oil without affecting the composition and performance of the oil; to ensure the normal operation of the unit regulation and lubrication system, and to extend the maintenance cycle of the unit.
Product features
1. High water removal and degassing efficiency. The AOP-1V efficient vacuum oil purifier adopts a three-dimensional evaporative degassing and dehydration system, plus special vacuum fillers, to increase the surface area of the oil film and quickly separate the water and gas in the oil.
2. Strong impurity removal ability. High precision filter material and multi-stage filtration to remove fine particles in the oil. The filter element is large in size and has large dirt holding capacity. It has a long service life and is equipped with an automatic detection for filter element contamination.
3. Short oil treatment time. The high vacuum and large pumping speed means that the AOP-1V efficient vacuum oil purifier can quickly and efficiently remove water vapor from the oil, so that the drying degree and breakdown voltage value of the oil can be greatly improved, and the oil treatment period can be shortened, thereby improving the performance of the oil.
4. Uniform heating. The system adopts low-density indirect circulating carbon fiber heating technology to prevent oil cracking and acetylene gas generation. Low energy consumption, uniform heating, stable oil temperature.
5. Automation control. This machine adopts high-end and sophisticated configurations such as automatic constant temperature control, automatic liquid level control, automatic defoaming control, and automatic pressure protection to ensure that the equipment does not inject oil during operation and operates safely and stably.
6. Interlock protection. The overload protection, overpressure alarm shutdown protection, oil shortage protection, oil injection protection, phase sequence protection, etc. ensure the reliable operation of the whole machine for a long time.
7. Humanized instructions. Automated design, with instructions such as oil temperature, pressure, vacuum, filter element contamination, and operating status. The labels are concise and clear.
8. Modern design. Highly automated, allowing for unattended operation. Compact equipment, flexible and convenient to move.
9. Good comprehensive performance. AOP-1V vacuum oil filter equipment has the advantages of low noise, easy operation, long maintenance interval, low energy consumption, low operating cost, and high oil filtration efficiency.
Product parameters
|
Model |
AOP-1V25 |
AOP-1V32 |
AOP-1V50 |
AOP-1V100 |
AOP-1V150 |
AOP-1V200 |
|
Flow Rate |
25 L/min |
32 L/min |
50 L/min |
100 L/min |
150 L/min |
200 L/min |
|
Working Pressure |
0.6 MPa |
0.6 MPa |
0.6 MPa |
0.6 MPa |
0.6 MPa |
0.6 MPa |
|
Rated vacuum |
≤ -0.095 MPa |
≤ -0.095 MPa |
≤ -0.095 MPa |
≤ -0.095 MPa |
≤ -0.095 MPa |
≤ -0.095 MPa |
|
Water content |
5 - 30 ppm |
5 - 30 ppm |
5 - 30 ppm |
5 - 30 ppm |
5 - 30 ppm |
5 - 30 ppm |
|
Air content |
≤ 0.2% |
≤ 0.2% |
≤ 0.2% |
≤ 0.2% |
≤ 0.2% |
≤ 0.2% |
|
Coarse filtration precision |
100 μm |
100 μm |
100 μm |
100 μm |
100 μm |
100 μm |
|
Grade 1 fine filtration accuracy |
10, 20 μm |
10, 20 μm |
10, 20 μm |
10, 20 μm |
10, 20 μm |
10, 20 μm |
|
Grade 2 fine filtration accuracy |
3, 5 μm |
3, 5 μm |
3, 5 μm |
3, 5 μm |
3, 5 μm |
3, 5 μm |
|
Pressure differentials |
0.2 MPa |
0.2 MPa |
0.2 MPa |
0.2 MPa |
0.2 MPa |
0.2 MPa |
|
Voltage |
AC 380V Three-phase, 50Hz |
AC 380V Three-phase, 50Hz |
AC 380V Three-phase, 50Hz |
AC 380V Three-phase, 50Hz |
AC 380V Three-phase, 50Hz |
AC 380V Three-phase, 50Hz |
|
Motor power |
18 kw |
26 kw |
36 kw |
65 kw |
65 kw |
135 kw |
|
Weight |
360 kg |
470 kg |
680 kg |
840 kg |
960 kg |
1500 kg |
|
Dimensions |
1250 × 920 × 1600 mm |
1350 × 980 × 1600 mm |
1500 × 1060 × 1800 mm |
1600 × 1080 × 2100 mm |
1800 × 1200 × 2200 mm |
2000 × 1200 × 2200 mm |
Application industry
It is widely used in online processing of turbine oil of steam turbines, gas turbines, water turbines in electric power, chemical industry, papermaking, metallurgy and other industries to ensure the normal operation of the unit regulation and lubrication system. It adopts new aggregation and separation technology and can also process low viscosity hydraulic oil, cooling oil and other low-viscosity lubricating oils that need to remove large amounts of water and achieve precise filtration of impurities.
FAQ
1. What is an oil purifier, and how does it work?
An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.
2. What types of oils can be filtered using an oil purifier?
Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.
3. Can I dispose of the filtered oil safely?
Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.
4. Is it cost-effective to invest in an oil purifier?
Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.
