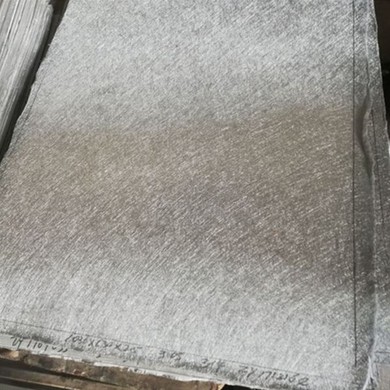

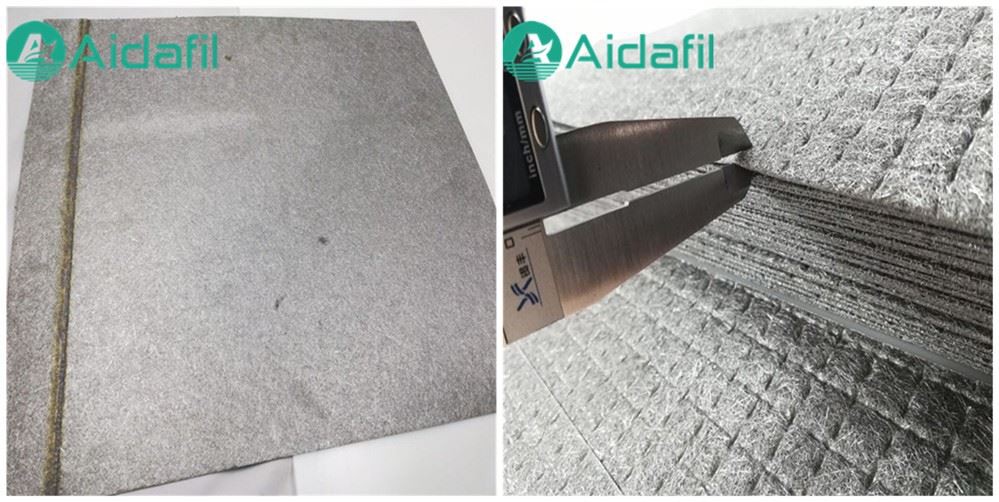

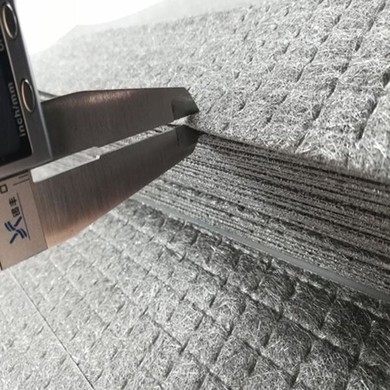

Sintered Metal Fiber Felt
Product Details
Sintered Metal Fiber Felt
Sintered metal fiber felt is also called metal sintered felt, metal fiber felt. Sintered metal fiber felt is made of extremely fine stainless steel metal fibers (with a diameter of accurate to micrometers) through non-woven laying, stacking and high temperature sintering. The stainless steel sintered felt is formed with different pore diameter layers to form a pore gradient, which can be controlled to obtain extremely high filtration accuracy and larger dirt holding capacity. It has the characteristics of three-dimensional network, porous structure, high porosity, large surface area, uniform pore size distribution, etc., which can continuously maintain the filtering effect of the filter layer.
Due to the above structure and characteristics, the stainless steel sintered felt can effectively make up for the weakness of the metal mesh that is easy to be blocked and easily damaged, and can make up for the fragile and small flow of powder filter products. It has the temperature resistance and resistance that ordinary filter paper and filter cloth cannot match. Because of its high pressure characteristics, stainless steel sintered felt is an ideal filter material with high temperature resistance, corrosion resistance and high precision.
Features
● High temperature and corrosion resistance. Can be used in 480 ℃ environment medium for a long time.
● Easy to process, shape and weld.
● High dirt holding capacity.
● High porosity and excellent permeability.
● High stain resistance capacity.
● Long replacement cycle;
● Little pressure loss and large flow.
● Can be welded and machined because of its large filter area.
● Easy to clean and can be used for a longer time.
● Can produce reinforced, thickened, protected and other specifications according to user's requirement.
Specifications
Material: 316-L stainless steel
Absolute filter rating: For liquids - 1µm to 80µm, for air and gases - below 0.1 µm is possible.
Standard size: 1000x500mm 1000x600mm 1000x1000mm 1200x1000mm
Maximum size: 1500 mm × 1200 mm.
The dimensions in the above range can be customized according to user requirements.
Application Fields
- Polymer filtration and polyester melt purification.
- Filtration of the refining process, pre-filtration of an ultrafilter.
- Electronic high-temperature gas dust removal.
- Liquid purification in pharmaceutical, petroleum, biology and beverage industries.
- Vacuum pump protection filter, filter membrane support, catalyst carrier.
- Airbags of cars and fuel filtration of aircraft and ships.
- Hydraulic system filtration.
Company Certifications
FAQ
1. Can you design filters according to the working condition?
No problem. We have a strong technical team. Please dont worry.
2. What is the production time?
About 7-10 working days usually. Will confirm again with you before production.
3. What are your advantages of the metal products?
High temperature resistance, corrosion resistance, long service life.
4. For Customs Clearance documents.Can you make special CO(certificate of Origin)?
A: Yes, If you need such documents.Please let us know in advance.
5. What is our shipping ways?
a. By sea and by air.
b. If you always import goods from different city in China, we suggest you to cooperate with a shipping agency to collect goods for you from different location. If it's necessary, we can recommend someone for you.
