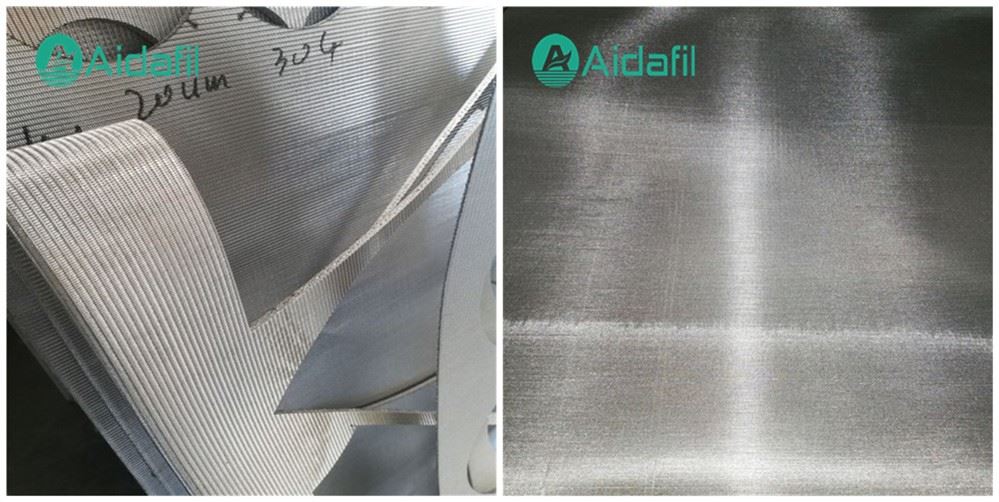

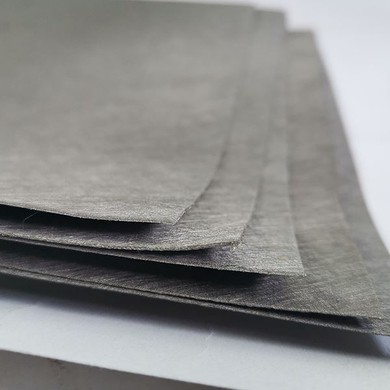

Stainless Steel Sintered Wire Mesh
Stainless Steel Sintered Wire Mesh is made of multi-layer metal braided wire mesh through special lamination and vacuum sintering. It is a new type of filter material with high mechanical strength and overall rigid structure. The interlaced filter structure of each layer of wire mesh not only overcomes the low strength, poor rigidity, and unstable mesh shape of ordinary metal wire mesh, but also can rationalize the pore size, permeability and strength characteristics of the material Matching and design, so that it has excellent filtration accuracy, filtration resistance, mechanical strength, wear resistance, heat resistance. The overall performance is significantly better than other types of filter materials such as sintered metal powder, ceramics, fibers, filter cloth, etc.
At present, the multi-layer sintered metal mesh series products developed and produced by our Aida Machinery Company are widely used in aviation, aerospace, petroleum, chemical, metallurgy, machinery, pharmaceuticals, food, synthetic fibers, film, environmental protection and other industrial fields.
Specifications of Stainless Steel Sintered Wire Mesh | |||||||
Model | Nominal Filter Rating (um) | Structure Protective Layer + Control Layer + Dispersion Layer + Reinforce Layer + Reinforce Layer | Thickness | Air Permeability (L/min/cm2) | Bubble Pressure (mm H2O) | Weight (kg/m2) | Porosity (%) |
SM5-1 | 1 | 100 + 400 × 2800 + 100 + 12 × 64 + 64 × 12 | 1.7 | 1.81 | 360-600 | 5-layer sintered wire mesh(8.4) 6-layer sintered wire mesh (14.4) | 40% |
SM5-2 | 2 | 100 + 325 × 2300 + 100 + 12 × 64 + 64 × 12 | 1.7 | 2.35 | 300-590 | ||
SM5-5 | 5 | 100 + 200 × 1400 + 100 + 12 × 64 + 64 × 12 | 1.7 | 2.42 | 260-550 | ||
SM5-10 | 10 | 100 + 165 × 1400 + 100 + 12 × 64 + 64 × 12 | 1.7 | 3.00 | 220-500 | ||
SM5-15 | 15 | 100 + 165 × 1200 + 100 + 12 × 64 + 64 × 12 | 1.7 | 3.41 | 200-480 | ||
SM5-20 | 20 | 100 + 165 × 800 + 100 + 12 × 64 + 64 × 12 | 1.7 | 4.50 | 170-450 | ||
SM5-25 | 25 | 100 + 165 × 600 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.12 | 150-410 | ||
SM5-30 | 30 | 100 + 450 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.7 | 120-390 | ||
SM5-40 | 40 | 100 + 325 + 100 + 12 × 64 + 64 × 12 | 1.7 | 6.86 | 100-350 | ||
SM5-50 | 50 | 100 + 250 + 100 + 12 × 64 + 64 × 12 | 1.7 | 8.41 | 90-300 | ||
SM5-75 | 75 | 100 + 200 + 100 + 12 × 64 + 64 × 12 | 1.7 | 8.7 | 80-250 | ||
SM5-100 | 100 | 100 + 150 + 100 + 12 × 64 + 64 × 12 | 1.7 | 9.1 | 70-190 | ||
SM5-150 | 150 | 50 + 100 + 50 + 30 + 30 + 100 + 50 | 2.0 | 25.00 | 50-150 | ||
SM5-200 | 200 | 40 + 80 + 40 + 20 + 40 + 80 + 40 | 2.0 | 26.00 | 50-150 | ||
Characteristics
Excellent strength, no inner support is required for making filter elements; no material; easily repeated cleaning; long lifespan; good anti-corrosion.
Application Fields
A. Precision filtering of various hydraulic oil lubricants in mechanical industry.
B. Filtration and purification of polymer melt in Chemical fiber film industry, petrochemical industry in various high temperature, corrosion liquid filtration, pharmaceutical industry materials filtering, washing, drying.
C. Application of Gas homogenization in Powder Industry, Sulfur plates in the steel industry.
D. Sound splitter in explosion-proof electrical appliances.
Technical Data
Filtering Fineness: 2-60micron.
Work Temperature: -20°C to 600°C.
Max. Pressure Drop: 3.2Mpa.
Max. Size: Width: 500mm; Length: 1000mm.
Layer: 2 to 6 layers.
FAQ
1. Are you a trading company or manufacturer?
XINXIANG AIDA MACHINERY EQUIPMENT CORPORATION is manufacturer.
2. What are your advantages of the metal products?
High temperature resistance, corrosion resistance, long service life.
3. How many people do you have in your company?
We have 10 technical men, 30 people in our office, 25 people in our factory.
4. Could you produce according to the samples?
A: Yes, we can produce by samples or drawing as your request. We can open new molds, but need you to bear the extra cost on new molds, when you place a bulk order. The mold fee can return back.
5. Can you design filters according to the working condition?
A: Yes. We have professional technical department and design the more suitable filters for you.
