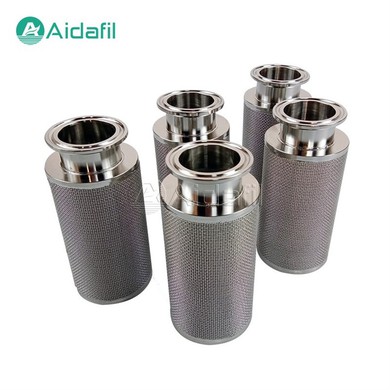

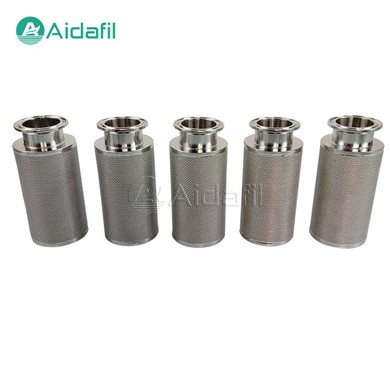

Sintered Metal Fiber Composite Filter Element

Sintered metal fiber composite filter element is a new type of filter material with high strength and overall rigidity, which is made of multi-layer metal sintered mesh pressed by special lamination and sintered by vacuum.

Product Details

Sintered metal fiber composite filter element is a new type of filter material with high strength and overall rigidity, which is made of multi-layer metal sintered mesh pressed by special lamination and sintered by vacuum. The layer number and mesh number are designed reasonably according to different service conditions and applications of the sintered metal fiber composite filter element. Because the pressure-resistant skeleton and the filter screen are actually sintered into one, it has higher mechanical strength, better backcleaning effect, and small pressure drop loss. It has been widely used in filtration equipment such as only self-cleaning equipment, intelligent pressure differential water treatment equipment as well as food and beverage filtration equipment.

Features

· Large filtration flow: large filtration flow, high strength, large dirt-hold capacity.

· Easy to clean, can be backwashed: regeneration performance is good, can be used repeatedly after chemical cleaning, high temperature and ultrasonic cleaning.

· Support customization: many product specifications, can be customized according to customer needs and requirments.

· Resistance to strong alkaline, strong acid corrosion and other working environment

· Heat esistance

Parameters

· Material: SuS304, 316L, 2205, 2507, Monel, Hastelloy

· Accuracy: 1 micron to 200 micron

· Thickness: 1.0mm 1.7mm 3.5mm or custom-made

· Standard size: 1200*1000*1.7mm

· Layers: 3/4/5/6 layers or custom-made

· Diameter: 10mm to 150mm or custom-made

· Height: 100mm-1500mm or custom-made

Applications
