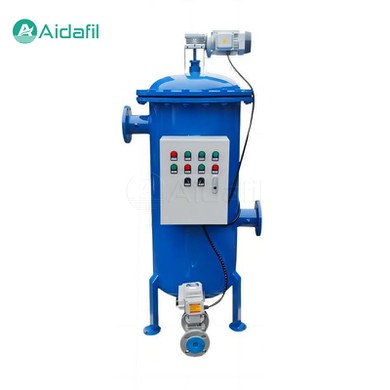

Customized Fully Automatic Brush Type Self-Cleaning Filter

The customized fully automatic brush type self-cleaning filter serves as a an advanced water treatment equipment based on the principle of physical filtration. The principle is to use a filter screen to intercept solid particles, impurities and other substances in the water, and then remove these contaminants through an automatic cleaning device to achieve filtration and purification of water quality. In the water treatment system, when the water passes through the filter screen, the larger solid particles will be intercepted by the filter screen, and the clean water will enter the system through the filter screen.

There are some properties of this fully automatic brush type self-cleaning filter

- Simple structure, easy to clean and maintain

- Automatic continuously in-line filtration, ending the heavy work of cleaning and replacing filter cartridge

- No disposable filter media consumption, saving filter media cost and environment cost

- Very low pressure drop, stable flow rate, saving energy consumption

- Close filtration, no dangerous liquid leakage, good for safe production

- High impurity concentration, recyclable, avoiding wasting high value materials

- Various modular combination and automation modes available, meeting different filtration needs

Technical parameters

Structure of the brush type self-cleaning filter

The customized fully automatic brush type self-cleaning filter typically consists of the following components:

1. Filter cartridge

The filter cartridge is the main part of the brush-type self-cleaning filter, in which a filter screen is installed to filter water quality.

2. Brush head

The brush head is a device used to clean the filter, and the cleaning frequency and time can be set according to needs.

3. Control system

The control system can control the start and stop of the cleaning device according to the actual situation to ensure the normal operation of the filter.

4. Water inlet and outlet

The water inlet introduces the water to be filtered into the filter cartridge, while the water outlet drains the filtered water out of the system.

How brush type self-cleaning filter works

The customized fully automatic brush type self-cleaning filter works as follows:

1. Water enters the filter cartridge

Water with solid particles and impurities flows into the filter cartridge through the water inlet, and the solid particles are intercepted inside the filter cartridge by the filter screen. Clean water enters the system through the filter screen.

2. Cleaning device start

When the dirt on the filter screen accumulates to a certain extent, the cleaning device automatically starts to brush off the dirt on the surface of the filter screen.

3. Dirt discharge

After cleaning, the dirt will be rinsed to the sewage outlet, so as to discharge the system, maintain the cleanliness of the filter, and ensure the normal operation of the brush self-cleaning filter.

Advantages of brush type self-cleaning filter

The customized fully automatic brush type self-cleaning filter offers the following advantages:

1. High-efficiency filtration. Through the automatic cleaning device, ensure that the filter screen is always kept clean to ensure the efficient operation of the filter.

2. Automated operation. Equipped with a control system, it can automatically sense and control the start and stop of the cleaning device without manual intervention.

3. Long lifespan. Regular cleaning can extend the lifespan of equipment and reduce maintenance costs.

4. Environmental protection and energy conservation. reduce energy consumption during water treatment and reduce waste.

Application of brush type self-cleaning filter

Water and waste water

Pulp and paper

Petro-chemical

Bio-pharmaceutical

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
