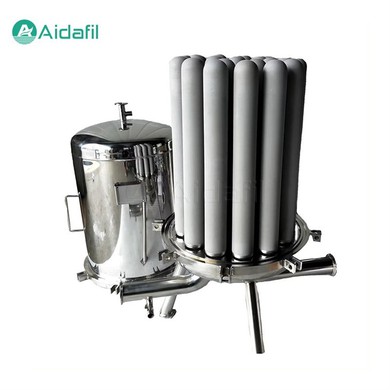

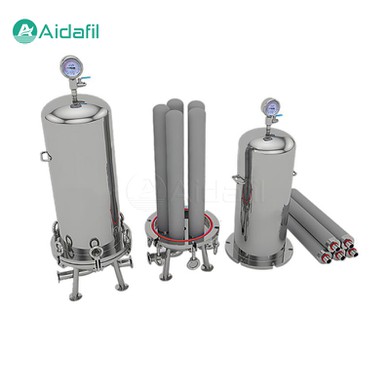

Highly-Specialized Titanium Rod Filter

The highly-specialized titanium rod filter is an efficient filtration device that uses titanium rod filter cartridge to achieve liquid-solid separation. The core component of this highly-specialized liquid filtration equipment is a hollow tubular filter cartridge made of titanium metal powder through a precision sintering process. This unique design and material choice give it many advantages, making it an ideal choice for solving complex filtration needs.

Specifications

Manufacturing technology of titanium rod filter cartridge

The production process of titanium rod filter cartridge begins with high-quality titanium metal powder. After precise metering, this powder is formed by high-pressure molding to form a preform with a certain shape and density. Subsequently, the preform is sintered at high temperature under the conditions of controlled atmosphere and temperature to achieve the purpose of densification. During this process, the contact points between the titanium powder particles are melted to form a continuous and uniform porous structure, which not only ensures the high strength and durability of the filter cartridge, but also ensures its good filtration performance. The sintered titanium rod filter cartridge has a smooth surface and uniform internal pores. The pore size can be adjusted for different filtration needs to achieve different applications from coarse filtration to fine filtration.

Characteristics and advantages

1. Strong corrosion resistance

Titanium metal has extremely high chemical stability and can resist the corrosion of most acids, alkalis, salts and organic solvents. It is especially suitable for filtration applications containing corrosive media, such as pharmaceutical preparations, electroplating solutions, chemical reagents, etc.

2. High temperature resistance

The titanium rod filter cartridge can work stably in high temperature environments, with a maximum operating temperature of hundreds of degrees Celsius, making it highly suitable for processes that require high temperature sterilization or heat treatment.

3. High precision

Filtration accuracy ranges from 0.45 microns to 100 microns, capable of effectively removing fine particles, bacteria, suspended solids, and a variety of heavy metals and harmful chemicals in water and solution, ensuring filtration results while also meeting the high standards of different industries.

4. High mechanical strength

The high strength characteristics of titanium ensure that the filter cartridge can maintain structural stability under high pressure difference, prolong service life, and reduce the risk of filtration efficiency and secondary pollution due to filter cartridge damage.

5. Reusable

Titanium rod filter cartridges can be restored through physical rinsing, backwashing, or appropriate chemical cleaning methods (such as acid-base soaking), reducing the cost of consumables and waste generation, making it more economical and environmentally friendly.

6. Compliant with GMP standards

The shell is made of 316L or 304 stainless steel, which are widely used in the pharmaceutical and food industries for their excellent corrosion resistance and hygienic properties. The overall design follows Good Manufacturing Practices (GMP) to ensure the safety of the filtration process and the purity of the product.

Application field

1. Pharmaceutical industry

In the preparation of injections, oral liquids, biological products, etc., titanium rod filters can effectively remove microorganisms and particulate matter, ensuring the quality of medicines.

2. Chemical industry

Used for solvent filtration, catalyst recovery, electroplating solution purification, etc., especially when dealing with highly corrosive materials.

3. Food and beverage

In the production of juice, beer, dairy products, etc., it is used to remove solid particles, maintain product purity and extend shelf life.

4. Water treatment

In drinking water treatment, industrial wastewater treatment and seawater desalination pre-treatment, it effectively removes heavy metals and organic pollutants and enhances water quality safety.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
