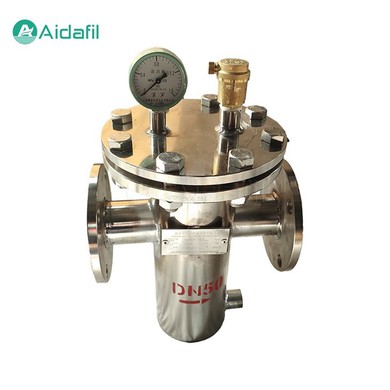

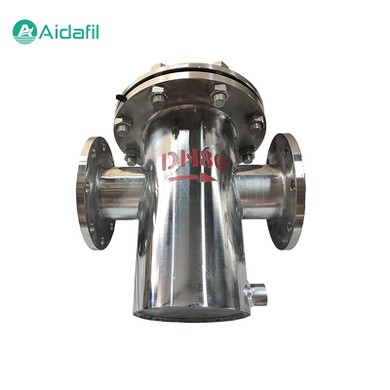

Efficient Economical Basket Filter For Ensuring Fluid Cleanliness

The efficient economical basket filter for ensuring fluid cleanliness is a mechanical filter used to remove particulate impurities from fluids. It is widely used in industrial, municipal, and commercial applications to protect equipment, improve product quality, and ensure the proper operation of fluid systems. This highly efficient and reliable filtration device plays a crucial role in maintaining fluid purity in various industrial and commercial settings.

The basket filter realizes the efficient filtration function through its unique design. When the liquid enters the filter, it first flows into the inside of the device through the inlet. Then, after being fixed through the bracket, the liquid starts to flow through the basket. During this process, due to the large filtration area of the basket-shaped filter, the solid particles are intercepted inside the basket, while the clean liquid flows out from the outlet at the top.

The basket filter has high filtration accuracy, and can effectively intercept solid particles of different particle sizes. This accuracy advantage makes the basket filter perform well in occasions where high-purity filtration is required. Also, this kind of filter can maintain good stability and pressure resistance in high-pressure environments. It is easy to disassemble and clean.

Structure and working principle

1. Filter Basket. A cylindrical or basket-shaped element with pores or gaps for trapping impurities.

2. Filter Shell. A cylindrical container that holds a filter basket and provides fluid passage.

3. Import and Export. Openings located at the top and bottom of the filter case, respectively, for the entry and exit of fluids.

4. Differential pressure gauge. Optional element for monitoring the degree of clogging of the filter basket.

After fluid enters the filter housing, it passes through the pores or slits of the filter basket. Impurities are trapped on the filter basket, while clean fluid continues to flow out of the filter. As impurities accumulate, the clogging of the filter basket increases and the fluid flow rate decreases. The reading of the differential pressure gauge rises, indicating that the filter needs to be cleaned.

Parameter

Application

The Efficient Economical Basket Filter For Ensuring Fluid Cleanliness is widely used in the following fields:

1. Industrial. Protect pumps, valves, meters, and other equipment from damage caused by particulate impurities.

2. Municipal. Purify drinking water, wastewater, and industrial wastewater.

3. Commercial. Protects cooling systems, air conditioning systems, and boilers.

4. Food and beverages. Removes impurities from beverages and foods.

5. Pharmaceuticals. Purifying pharmaceuticals and biologics.

Advantages

The Efficient Economical Basket Filter For Ensuring Fluid Cleanliness offers the following advantages:

1. High removal efficiency. Can remove particulate impurities of various sizes.

2. Low pressure drop. Filter baskets with large pores or gaps allow fluids to pass through easily, maintaining a low pressure drop.

3. Easy to maintain. The filter basket is easy to disassemble and clean, simplifying the maintenance process.

4. Durability. Made of durable materials, it can withstand harsh operating conditions.

5. Cost-effectiveness. Basket filters offer lower purchase and maintenance costs compared to other types of filters.

Selection and maintenance

The following factors should be considered when selecting and maintaining a basket filter:

1. Fluid Flow. Select the filter size that can handle the required fluid flow.

2. Particle Size. Select a filter with a basket pore or gap size that matches the particle size to be removed.

3. Differential pressure. Consider the normal differential pressure in the fluid system and choose a filter that can withstand that differential pressure.

4. Maintenance frequency. Determine the frequency of cleaning or replacing the filter basket based on fluid conditions and particle load.

5. Materials. Select materials that are compatible with fluids and operating conditions.

By following these guidelines, you can choose and maintain basket filters to ensure the reliability and efficient operation of your fluid system.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
