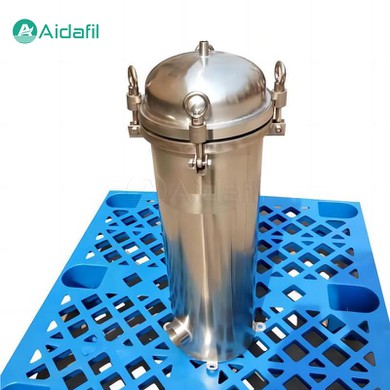

Large-Capacity Bag Filter Equipment

In the modern industrial production process, filtration technology is the key link to ensure product quality and production efficiency. As an efficient and reliable filtration equipment, the large-capacity bag filter equipment is widely used in many fields such as chemical industry, food, medicine, water treatment, etc. Its unique structural design and filtration principle make it stand out among many filters and become the first choice of many enterprises.

Parameters

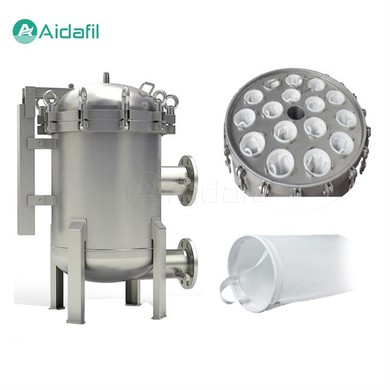

Analysis of core components: Three major components of the filtration system

1. Filter container: sturdy shell and sealing

The filter container of the large-capacity bag filter equipment is usually made of 304 or 316L stainless steel, which has excellent corrosion resistance and strength. The design of the container ensures good sealing and prevents leakage problems during the filtration process. At the same time, the shape and size of the container can be customized according to the actual application requirements to adapt to different working conditions.

2. Support basket: stable bracket and fluid guidance

The support basket is located inside the filter container, and its main function is to fix the filter bag and guide the flow of the liquid to be filtered. The basket is usually made of stainless steel, which has good corrosion resistance and strength, and can withstand a certain pressure without deformation. The design of the basket is meticulous to ensure that the liquid can be evenly distributed on the surface of the filter bag, improving the filtration efficiency.

3. Filter bags: efficient filter media

The filter bag is the core component of the large-capacity bag filter equipment, which determines the filtration accuracy and effect. The filter bag is usually made of polypropylene (PP), nylon (Nylon) or other synthetic materials, with different micron grade pore sizes to meet different filtration needs. The top of the filter bag is designed with a lifting ring or a threaded interface for easy installation and replacement. When the liquid passes through the filter bag, solid particles and impurities are trapped, while the clean liquid flows out from the bottom.

Detailed explanation of working principle: Uniform distribution and uniform flow

The working principle of the large-capacity bag filter equipment is based on the process of gravity or pressure difference driving the liquid through the filter bag. The liquid to be filtered first enters the filter container and is then evenly distributed on the surface of the filter bag through the supporting net basket. This uniform distribution helps to avoid local overloads and blockages, thus prolonging the service life of the filter bag. At the same time, since the liquid flows evenly across the entire filter surface, it can ensure a consistent filtration effect and reduce the negative effects caused by turbulent flow.

Advantage analysis: Efficiency and reliability coexist

1. High filtration efficiency

The large-capacity bag filter equipment can achieve high filtration performance due to its unique structure and working principle. Uniform liquid distribution and consistent flow ensure full utilization of the filter medium and improve filtration efficiency.

2. Easy maintenance and replacement

Filter bags are consumables and need to be replaced regularly to maintain the filtration effect. The design of stainless steel single-bag filters makes the replacement of filter bags simple and quick, eliminating the need to disassemble the entire filter, which greatly reduces maintenance costs and time.

3. Wide range of applicability

Due to its structural flexibility and customizability, the large-capacity bag filter equipment can be applied to a variety of different industrial scenarios and filtration needs. Whether it is a high-viscosity liquid or a solution containing tiny particles, effective filtration can be achieved by selecting the right filter bag.

4. Long-term stability

The stainless steel filter container and support basket ensure the long-term stable operation of the equipment. Even in harsh working environments, such as high temperature, high pressure or highly corrosive environments, the large-capacity bag filter equipment can maintain good performance and long service life.

Application cases: Extensive application in multiple fields

The large-capacity bag filter equipment has been widely used in many fields due to their excellent filtration performance and reliability. For example, in the chemical industry, it can be used to filter impurities in chemical raw materials; in the food industry, it can be used in the clarification process of fruit juices, beverages, etc.; in the pharmaceutical industry, it can be used in the purification process of pharmaceutical liquids or biological products; in the water treatment industry, it can be used to remove suspended solids and microorganisms in water, etc. These application cases fully demonstrate the diversity and practicality of the large-capacity bag filter equipment.

FAQ

1. Q: What is the function of a filter?

A: The main function of a filter is to remove solid particles, impurities, and harmful substances from liquids or gases, in order to achieve purification, clarification, and protection of equipment.

2. Q: How to choose a suitable filter?

A: When choosing a filter, factors such as the properties of the material being filtered (e.g., viscosity, temperature, corrosion), required filtration accuracy, processing capacity, operating pressure and medium, as well as the type, material, size, and installation method of the filter should be considered.

3. Q: What is the working principle of a filter?

A: The working principle of a filter mainly relies on physical screening, deep interception, absorption, or chemical reactions to remove impurities or harmful components from the material being filtered.

4. Q: How to maintain and care for a filter?

A: Maintenance of filters includes regular cleaning or replacement of filter elements, inspection of seals and fasteners, maintaining stable operating pressure, and avoiding overloading. Specific methods should be referenced from the filter's instruction manual and maintenance guides.

5. Q: What is the service life of a filter?

A: The service life of a filter depends on its working environment, processing volume, and filtration accuracy. Generally, when the filter's pressure drop reaches a certain value or the filtration effect decreases significantly, it needs to be replaced or cleaned.

6. Q: What should be paid attention to during filter installation?

A: During filter installation, attention should be paid to the directionality, ensuring that the fluid enters and exits from the correct ports. Also, the piping system should be cleaned before installation, and the filter should be securely fastened and sealed as required by the instructions.

7. Q: What is the replacement cycle for filters?

A: The replacement cycle for filters depends on their working conditions and filtration requirements, and is usually indicated by pressure difference indicators or timers. When the filter's pressure drop reaches the set value or the filtration effect decreases, it should be replaced in a timely manner.
