Wedge wire screen tubes are critical filtration components used in a variety of applications, including water treatment, food processing, mining, oil and gas production, and chemical processing.

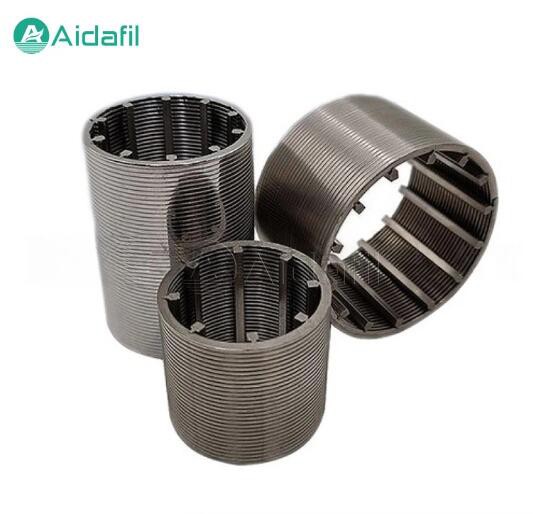

These cylindrical filters are made by wrapping V-shaped profile wire around a series of longitudinal support rods and welding them at precise intersections.
The resulting structure creates a continuous slot with excellent strength and non-clogging characteristics. Choosing the right wedge wire screen tube is essential to ensure operational efficiency, reliability, and long service life. Below is a detailed guide to help you select the most suitable wedge wire screen tube for your specific application.
1. Determine the Application Requirements
Before selecting a wedge wire screen tube, it's essential to understand the specific requirements of your application. Ask yourself the following:
What type of media is being filtered? (e.g., water, oil, slurry, pulp, chemicals)
What particle size needs to be separated?
What are the temperature and pressure of the operating environment?
Is the system subject to chemical corrosion or abrasive materials?
Identifying these parameters will help you determine the appropriate specifications for material, slot size, diameter, and structural design.
2. Choose the Right Material
Wedge wire screen tubes are commonly manufactured using stainless steel, such as SS304, SS316, or SS316L, due to their corrosion resistance and strength. The choice of material depends on the environmental conditions:
SS304: Suitable for general-purpose filtration where corrosion levels are moderate.
SS316/316L: Offers higher corrosion resistance, especially in saline or acidic environments-ideal for marine, chemical, or wastewater applications.
Duplex stainless steels or special alloys (e.g., Hastelloy): Used in highly corrosive environments such as offshore oil platforms or aggressive chemical processes.
3. Specify the Slot Size
Slot size, also known as opening size, is one of the most critical factors in selecting a wedge wire screen tube. It determines the size of particles that can pass through the screen and directly affects filtration efficiency.
Fine filtration: For applications like potable water treatment or chemical processing, slot sizes can range from 25 to 100 microns.
Coarse filtration: For applications like raw water intake or wastewater screening, slot sizes may range from 0.5 mm to several millimeters.
Accurate slot size selection ensures optimal separation and prevents either clogging (if too fine) or poor filtration (if too coarse).
4. Select the Diameter and Length
Wedge wire screen tubes are available in a range of diameters and lengths to fit various filtration systems. These dimensions affect:
Flow rate capacity: Larger diameters allow more fluid to pass through, increasing throughput.
Installation compatibility: The tube must match the specifications of your equipment or housing.
Cleaning and maintenance: Longer tubes may be more challenging to clean, depending on system access.
Make sure the dimensions are compatible with your system's design and flow requirements.
5. Consider Support Rod Type and Configuration
Support rods provide structural strength to the screen tube and help it resist collapse under pressure. There are several configurations, such as circular, triangular, or rectangular rods. The choice depends on:
Load-bearing requirements
Flow direction (from inside to outside or vice versa)
Desired open area and mechanical strength
An optimized support rod configuration will enhance both durability and flow characteristics.
6. Determine the Flow Direction
Wedge wire screen tubes can be designed for either outside-in or inside-out flow. The correct flow direction depends on your application:
Outside-in flow: Common for external filtration, where debris collects on the outer surface.
Inside-out flow: Useful in backwashing systems or when debris needs to be flushed away easily.
Clarifying flow direction helps prevent fouling and ensures easy maintenance.
