Wedge wire screen mesh, also known as profile wire screen or Johnson screen, is a specialized type of filtration and separation media used in a wide range of industries. Its unique design and construction provide several advantages over traditional mesh screens, making it a popular choice for demanding applications. Here's a detailed explanation of how it works:
Construction and Design:

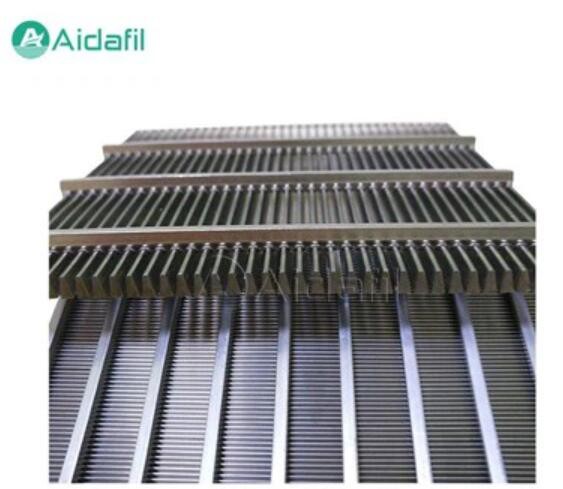

Wedge wire screen mesh is constructed from a series of specially shaped wires, typically triangular or trapezoidal in cross-section, known as profile wires. These wires are precisely spaced and welded to support rods, creating a screen with a series of narrow, closely spaced slots. The unique wedge shape of the profile wires serves a crucial purpose:
Non-clogging design: The wider opening on the underside of the wedge-shaped slot allows particles that are small enough to pass through to do so easily, while larger particles are prevented from entering. This minimizes the risk of clogging, a common problem with traditional mesh screens.
Increased flow rate: The smooth, unobstructed flow path created by the wedge-shaped slots reduces friction and allows for a higher flow rate compared to conventional screens with the same open area.
Working Principle:
The working principle of wedge wire screen mesh is based on the size and shape of the particles being separated. The liquid or gas mixture containing the particles is passed through the screen.
Particles smaller than the slot opening pass through the screen, while larger particles are retained on the surface. The wedge shape of the slots ensures that even if a particle is slightly larger than the opening, it is less likely to become lodged and block the flow.
Key Advantages:
High flow rates: The unique design of wedge wire screens allows for higher flow rates compared to traditional mesh screens with the same open area.
Non-clogging: The wedge-shaped slots and smooth surface minimize the risk of clogging, reducing maintenance requirements and downtime.
High strength and durability: Wedge wire screens are typically made from stainless steel, providing excellent strength and corrosion resistance. They can withstand high pressures and temperatures, making them suitable for demanding applications.
Precise separation: The precise spacing of the profile wires ensures accurate separation of particles based on size.
Versatility: Wedge wire screens can be manufactured in various shapes and sizes to fit specific application requirements.
Applications:
Wedge wire screen mesh is used in a wide range of industries and applications, including:
Water and wastewater treatment: For filtration and separation of solids from liquids.
Oil and gas industry: For sand control, filtration of drilling mud, and separation of oil and gas.
Mining: For mineral processing, dewatering, and classification.
Food and beverage: For filtration of liquids, separation of solids, and product purification.
Chemical processing: For filtration and separation of various chemicals and materials.
Wedge wire screen mesh is a highly efficient and versatile filtration and separation solution. Its unique design, with its wedge-shaped slots and smooth surface, provides several advantages over traditional mesh screens, including high flow rates, non-clogging properties, and high strength. These characteristics make it an ideal choice for a wide range of demanding applications across various industries.
