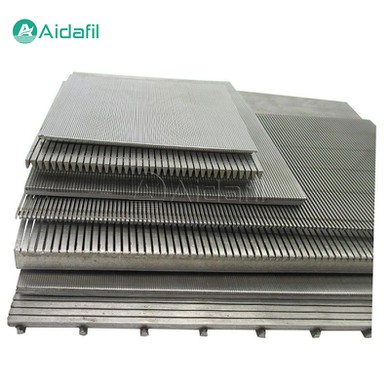

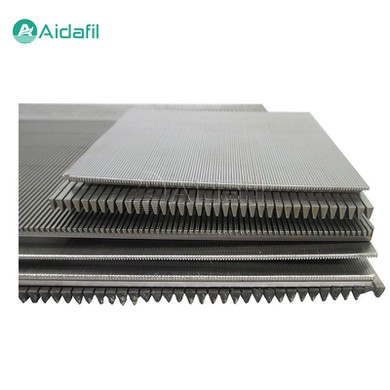

High Precision Wedge Wire Screen Mesh
Product Details
The high precision wedge wire screen mesh is a high-efficiency filter material widely used in liquid and gas filtration in industrial production. The core part of this screen mesh is wedge wire. The high precision wedge wire screen mesh not only has high filtration accuracy, but also has a strong structure and can work under high pressure and high temperature environment. In addition, its design makes cleaning and maintenance very convenient, so it has been widely used in many industries.
Structure and principle
The high precision wedge wire screen mesh is mainly composed of wedge wire and support bar. The wedge wire is wound around the support bar at a certain angle to form continuous wedge-shaped pores, which constitute the filtration channel of the wedge wire screen mesh. When the fluid passes through these wedge-shaped pores, impurities are trapped inside or on the surface of the wedge-shaped pores, thereby achieving purification of the fluid.
The working principle of the wedge wire screen mesh is based on two mechanisms: screening and deep filtration. In the screening process, the screen mesh intercepts particles larger than the aperture; while in deep filtration, some smaller particles will penetrate into the wedge-shaped pores and be intercepted by the wedge wire fibers. This composite filtration method makes the wedge wire screen mesh have higher filtration efficiency and wider filtration range.
Features
1. High filtration accuracy
The design of wedge wire makes the screen mesh have higher filtration accuracy and can effectively remove fine impurities in liquid or gas. Therefore, it is suitable for occasions requiring precision filtration.
2. Good pressure resistance
The high precision wedge wire screen mesh has a compact structure and strong pressure resistance, and is suitable for high-pressure environments. This makes it widely used in high-pressure process flows such as petroleum and chemical industries.
3. Easy to clean
Due to its special structure, the wedge wire screen mesh can be repeatedly cleaned without destroying its filtration performance, thereby extending the service life of the screen mesh. This makes it particularly suitable for occasions that require frequent cleaning, such as food processing and water treatment industries.
4. Wide range of applications
Wedge wire screen meshes are widely used in water treatment, petrochemical, pharmaceutical, papermaking, food processing and other industries. Different industries and process conditions have different requirements for the material and specifications of wedge wire screen mesh.
Parameters
|
Material |
Stainless steel 304, 316L, 904L, Hastelloy |
|
Gap |
Minimum 0.015mm |
|
Diameter |
Customized |
|
Filtering direction |
Customized (from inside to outside, or from outside to inside) |
Application
1. Water Treatment Industry
In the water treatment industry, the high precision wedge wire screen mesh is used to remove suspended matter, sediments and other impurities from water sources. This helps improve water quality and meet the requirements of industrial production and domestic water.
2. Petrochemical Industry
In the petrochemical field, the high precision wedge wire screen mesh is used to filter crude oil, refined oil and chemical solvents, etc. It can withstand high temperature and high pressure while providing efficient filtration effects.
3. Pharmaceutical Industry
In the pharmaceutical industry, the high precision wedge wire screen mesh is used to filter drug solutions and preparations to ensure the quality and safety of drugs.
4. Food Processing Industry
The food processing industry uses the high precision wedge wire screen mesh is to filter food liquids such as juices, beverages, and alcohol to ensure the purity and taste of the products.
Production process characteristics
1. Precise wedge wire manufacturing
- Advanced wire drawing technology
- Strict quality control
2. Stable wire winding process
- Automated wire winding
- Fine adjustment capability
3. Efficient welding technology
- Non-contact welding
- Perfect weld detection
4. Advanced surface treatment
- Environmentally friendly passivation
- Versatile coating technology
5. Strict quality inspection
- Comprehensive performance testing
- Precise dimensional measurement
6. Perfect production management system
- ISO certification
- Professional staff training
