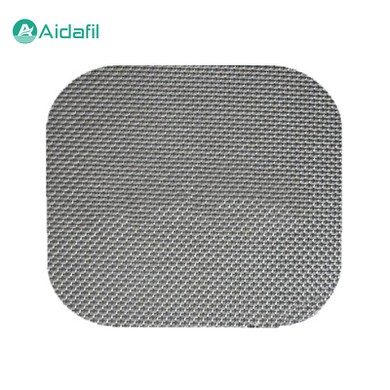

High Strength Six-Layer Metal Sintered Mesh

The high strength six-layer metal sintered mesh is a new type of filter material. It is is made of six layers of stainless steel wire mesh through special lamination pressing and then vacuum sintering. The mesh holes between each layer of wire mesh are interlaced to form a uniform and ideal filtration structure. The gap size, permeability and strength characteristics of the material are optimized. It has high strength and overall rigidity, and high compressive strength. It is widely used in food, pharmaceuticals, petrochemicals, nuclear power, synthetic fibers, films, aerospace and environmental protection industries.

Structure

- Number of layers

The high strength six-layer metal sintered mesh consists of six layers of stainless steel wire mesh, which are formed by special lamination pressing and vacuum sintering.

- Structural features

The mesh holes between the layers of wire mesh are interlaced to form a uniform and ideal filtering structure.

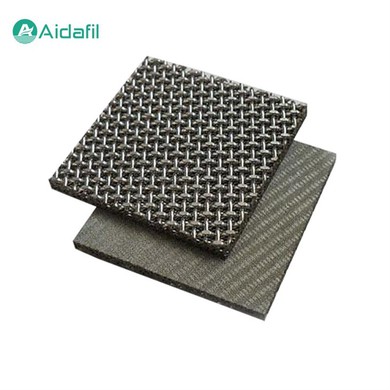

Compared with the standard five-layer mesh, the six-layer sintered mesh adds a layer of 8-mesh or 12-mesh square hole mesh on the basis of the standard five-layer mesh, thereby improving the overall strength and diversion performance.

- Specifications and dimensions

The standard material is usually stainless steel such as SUS304 and SUS316L.

Dimensions include 1000mm*500mm, 1000mm*600mm, 1000mm*1000mm, 1200mm*1000mm, 1200mm*1200mm and other options.

The filtration accuracy can reach 1~300μm to meet different filtration needs.

Advantages

1. High filtration accuracy

Due to the interlacing of the mesh between the layers of wire mesh, the six-layer metal sintered mesh can form a uniform and ideal filtration structure, with a filtration accuracy of 1-300μm.

2. Good mechanical strength

The six-layer metal sintered mesh has high mechanical strength and overall rigidity, capable of withstanding high working pressure and strength requirements.

3. Excellent wear resistance, heat resistance and cold resistance

The material can be used in a continuous filtration environment from -200°C to 650°C, and has excellent wear resistance, heat resistance, and cold resistance.

4. Excellent cleaning properties

The surface filter structure with better countercurrent cleaning effect makes the cleaning process of the six-layer metal sintered mesh simple and easy to maintain.

5. Wide range of application fields

Due to its excellent performance, the six-layer metal sintered mesh is widely used in food, pharmaceutical, petrochemical, nuclear power, and other industries.

6. Variety of sizes and materials

We offer a variety of sizes (e.g. 1000mm*500mm, 1200mm*1200mm, etc.) and materials (e.g. SUS304, SUS316L, etc.) to meet the needs of different customers.

Parameters

Application scenarios

The high strength six-layer metal sintered mesh has special application scenarios in many fields due to its unique structure and excellent performance. Here are some of its main application scenarios:

1. Pharmaceutical industry

It is widely used in pharmaceutical two-in-one and three-in-one equipment. Due to its high-precision filtration and easy-to-clean characteristics, it can ensure the purity and hygiene requirements in the pharmaceutical production process.

2. Petrochemicals

In the petrochemical industry, the six-layer metal sintered mesh can be used for liquid and gas filtration in various fluid filtration systems, such as catalytic cracking, hydrocracking, reforming, etc. It can effectively remove impurities, protect downstream equipment, and prolong the service life of equipment.

3. Environmental protection

In environmental protection projects, six-layer metal sintered mesh can be used in wastewater treatment, waste gas treatment and other scenarios. Its high temperature resistance and corrosion resistance enable it to adapt to various complex environmental conditions, effectively remove pollutants and protect the environment.

4. Food industry

In the food industry, the six-layer metal sintered mesh can be used for the filtration of liquids and gases, such as beverages, edible oils, beers and other products. It can ensure the purity and taste of the product, and meet the hygiene and quality requirements of the food industry.

5. Nuclear energy industry

In the field of nuclear energy, the six-layer metal sintered mesh can be used in scenarios such as cooling water filtration and radioactive wastewater treatment in nuclear power plants. Its high strength, high temperature resistance and corrosion resistance enable it to adapt to the special needs of the nuclear energy industry and ensure the safe operation of nuclear power plants.

6. Aerospace

In the aerospace field, the six-layer metal sintered mesh can be used to filter fuel, oxygen and other fluids in aircraft, rockets and other equipment. It can ensure the purity of the fluid and the normal operation of the system, providing an important guarantee for the safety of aerospace vehicles.

7. Precision instruments

For some precision instruments and equipment that require extremely high filtration accuracy, the six-layer metal sintered mesh can provide high-precision filtration results, ensuring the normal operation and accuracy requirements of the equipment.
