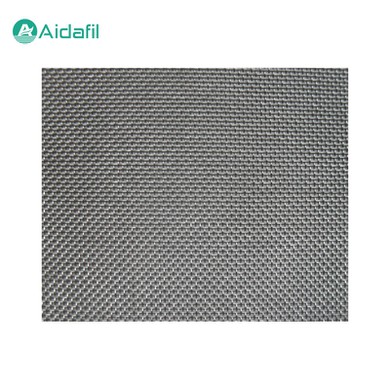

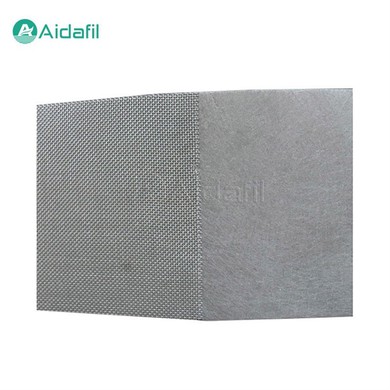

Sintered Fiber Felt With Protective Meshes

The sintered fiber felt with protective meshes is a special filter material. It has the characteristics of large pollution capacity, high filtration accuracy, slow pressure rise, and long replacement cycle. Its production process combines the basic process of sintered felt and the reinforcement of stainless steel wire mesh. It is made by laying stainless steel wire mesh on the basis of ordinary sintered felt, and then sintering it at high temperature.

The production process of sintered fiber felt includes heat treatment of powder or pressed blank at a temperature below the melting point of the main component, as well as possible steps such as filler, pre-burning, and pressure sintering.

Advantages

1. High strength and stability

By adding stainless steel wire mesh on the surface of the sintered felt as a protective net, the compressive strength and mechanical stability of the Sintered Fiber Felt With Protective Meshes are significantly improved. This enables it to maintain stable filtration performance in high pressure and high flow working environments.

2. High temperature resistance

Due to the high temperature sintering process, the Sintered Fiber Felt With Protective Meshes can be used in high temperature environments for a long time, usually withstanding high temperatures up to hundreds of degrees Celsius. This makes it a significant advantage in the field of high temperature filtration.

3. Excellent filtration performance

The Sintered Fiber Felt With Protective Meshes has the characteristics of large dirt holding capacity, high filtration accuracy, and slow pressure rise. It can effectively filter out tiny particles and impurities to ensure the cleanliness of the fluid.

4. Corrosion resistance

The Sintered Fiber Felt With Protective Meshes is usually made of corrosion-resistant materials, such as stainless steel, so it has good corrosion resistance to acid and alkali, organic solvents, drugs, etc. This makes it have a wide range of application prospects in the field of corrosive liquid filtration.

5. High penetration rate

The high porosity and excellent penetration rate of the Sintered Fiber Felt With Protective Meshes ensure that the fluid maintains a low pressure loss and a large flow rate during filtration. This helps to improve filtration efficiency and reduce energy consumption.

6. Easy to process and install

The Sintered Fiber Felt With Protective Meshes is easy to process and shape, and can be customized according to user needs. At the same time, its installation process is relatively simple, which is convenient for users to replace and maintain.

7. Long lifespan and low maintenance costs

Due to its high strength, stability and excellent filtration performance, the Sintered Fiber Felt With Protective Meshes usually has a long service life. At the same time, its maintenance and replacement costs are relatively low, which helps to reduce the operating costs of users.

8. Broad scope of application

The Sintered Fiber Felt With Protective Meshes is suitable for a variety of industrial filtration fields, such as polymer melt filtration, petroleum chemical fiber, high temperature gas dust removal, corrosive liquid filtration, etc. Its diverse specifications and materials can meet the needs of different users.

Parameters

Applications

The sintered fiber felt with protective meshes is widely used in many fields.

1. High temperature gas filtration

The sintered fiber felt with protective meshes can maintain stable filtration performance in high temperature environments, so they are often used for dust removal and filtration of high-temperature gases. For example, in industrial processes such as iron and steel smelting, non-ferrous metal smelting, and ceramic production, a large amount of high-temperature dust-containing gases will be generated, and the sintered fiber felt with protective meshes can effectively remove particles and impurities in these gases.

2. Chemical liquid filtration

In the chemical production process, it is often necessary to handle various corrosive liquids. The corrosion resistance of the sintered fiber felt with protective meshes makes them an ideal filter material, which can be used for the filtration and purification of chemical liquids, such as acids, alkalis, organic solvents, etc.

3. Polymer melt filtration

In the production process of plastic, rubber and other polymer materials, the melt needs to be filtered to remove impurities and particles. The high filtration accuracy and high temperature resistance of the sintered fiber felt with protective meshes make it an important filter material in this field.

4. Fuel filtration

In the fuel system of automobiles, airplanes, ships and other vehicles, it is necessary to filter the fuel to ensure its cleanliness. The sintered fiber felt with protective meshes can be used for pre-filtration and main filtration of fuel to remove impurities and moisture in fuel and improve fuel purity and combustion efficiency.

5. Hydraulic system filtration

In the hydraulic system of mechanical equipment, the cleanliness of the oil is crucial to the stable operation of the system. The sintered fiber felt with protective meshes can be used for filtration of hydraulic oil to remove particles and impurities in the oil and protect key components of the system from wear and damage.

6. Vacuum pump protection

In the vacuum pump system, in order to prevent solid particles from entering the pump body and causing damage, it is necessary to use filter materials to filter the gas entering the pump body. The high filtration accuracy and corrosion resistance of the sintered fiber felt with protective meshes make it an ideal choice for vacuum pump protective filter elements.

7. Catalyst support

In some chemical reactions, catalysts are required to accelerate the reaction rate. The sintered fiber felt with protective meshes has high porosity and good air permeability, which can be used as a catalyst carrier to improve the dispersion and reaction efficiency of catalysts.
