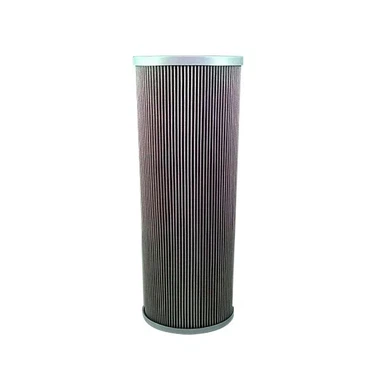

Hydraulic oil filters are an important part of hydraulic systems and are used in a variety of mechanical equipment such as construction equipment, industrial machinery and vehicles. The purpose of hydraulic oil filters is to remove contaminants and impurities from hydraulic oil to ensure smooth operation and optimum performance of the system.
Hydraulic systems rely on hydraulic fluid, often called hydraulic oil, to transmit power and control the movement of actuators such as cylinders or motors. Hydraulic fluids play a vital role in lubricating various components, reducing friction, dissipating heat and providing sealing performance. However, over time, contaminants such as dirt, metal particles, water and other impurities can find their way into hydraulic fluid.
Hydraulic oil filters are designed to capture and remove these contaminants from the oil, preventing them from circulating throughout the hydraulic system. Here's how it works:
Filtration Mechanism: Hydraulic oil filters use a filtration mechanism to capture and separate contaminants from the oil. Filter media are typically made of porous materials such as cellulose, synthetic fibers, or metal mesh, which act as a physical barrier to capture particles of various sizes.
Micron Rating: Hydraulic oil filters are rated according to their efficiency at trapping particles of a specific size. A filter's micron rating indicates the smallest particle size it can effectively remove. Common micron ratings range from 5 microns to 40 microns, depending on the application and system requirements.
Flow: Hydraulic systems require specific flow to function optimally. Hydraulic oil filters are designed to maintain the required flow while providing effective filtration. They have a specific surface area and design that allow sufficient oil flow without causing excessive pressure drop or limiting system performance.
Bypass Valve: Hydraulic oil filters usually contain a bypass valve mechanism. If the filter becomes clogged or reaches its maximum capacity, the bypass valve opens, allowing oil to bypass the filter and continue to circulate through the system. This prevents complete loss of oil flow and ensures that the system can still operate, albeit with reduced filtration efficiency. Bypass valves are usually set to activate when the differential pressure across the filter exceeds a certain threshold.
Compared with ordinary filters, hydraulic oil filters have specific functions and characteristics tailored to the demanding requirements of hydraulic systems:
High Filtration Efficiency: Hydraulic oil filters are designed to provide high filtration efficiency to remove the smallest particles. This is critical to protect sensitive components such as valves, pumps and actuators from damage, as even tiny particles can cause wear, clogging and performance degradation.
Durability: Hydraulic oil filters are built to withstand the high pressures and temperature fluctuations common in hydraulic systems. They are constructed of robust materials capable of withstanding harsh operating conditions without compromising their integrity or filtration efficiency.
Water removal: Some hydraulic oil filters have the function of water removal. Water can enter hydraulic systems through condensation or external contamination, and its presence can lead to corrosion, reduced lubrication and component failure. Specialized filters may include elements or treatments that help separate and remove water from oil.
In summary, hydraulic oil filters are specifically designed to remove contaminants from hydraulic oil, ensuring cleanliness and optimum performance of hydraulic systems. They provide high filtration efficiency, maintain flow, and are durable enough to withstand the harsh conditions encountered in hydraulic applications.
