Enhanced Strength Perforated Plate Sintered Mesh

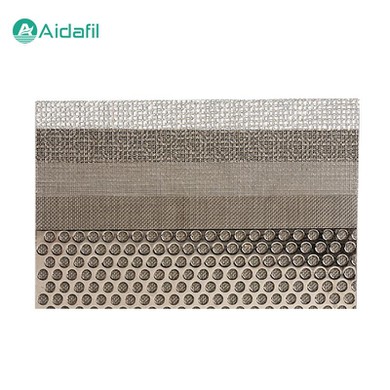

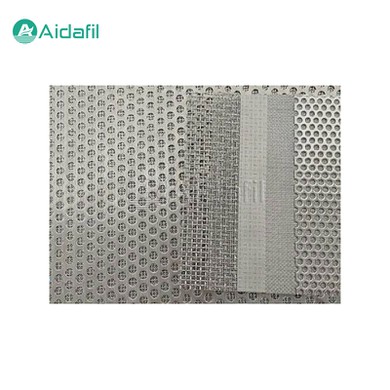

The enhanced strength perforated plate sintered mesh combines the mechanical strength of the perforated plate with the high filtration accuracy of the sintered mesh. The perforated plate acts as a support skeleton to provide sufficient mechanical strength and stability; multiple layers of square mesh or dense mesh are superimposed on it to achieve the required filtration accuracy and flux requirements.

Material selection

The basic material of enhanced strength perforated plate sintered mesh is usually stainless steel, such as 304, 316L and other models. This is because stainless steel not only has excellent corrosion resistance, but also can maintain stable physical and chemical properties over a wide temperature range. In addition, according to special application requirements, high-performance materials such as nickel-based alloys and titanium alloys may also be selected to meet the filtration challenges in extreme environments. Selecting the right material is the prerequisite for ensuring long-term stable operation and high filtration efficiency of the sintered mesh.

Structural design

1. Support frame: perforated plate

As the supporting frame of the composite sintered mesh, the perforated plate is mainly responsible for carrying the filter layer and maintaining the stability of the overall structure. Its design needs to consider factors such as hole type (circular, square, diamond, etc.), pore size, opening rate and plate thickness to meet the specific fluid passing capacity and mechanical strength requirements. The hole type and layout of the perforated plate directly affect the uniform distribution and overall filtration efficiency of the subsequent filter layer.

2. Filter layer: sintered mesh

The sintered mesh layer is the key to achieving high-precision filtration. By sintering ultrafine metal powder or metal wire mesh at high temperature, a dense and uniform porous structure is formed. The sintering process can control the pore size and distribution, thereby accurately adjusting the filtration accuracy. According to application requirements, the sintered mesh can be designed as a single-layer or multi-layer structure. Different combinations of mesh size (mesh size) and number of layers of each layer can meet a wide range of needs from coarse filtration to ultra-precision filtration.

Parameters

Performance characteristics

1. High filtration accuracy

The design of multi-layer sintered mesh enables it to effectively intercept extremely small particles and meet the needs of precision filtration.

2. High strength and stability

The support structure of the perforated plate provides excellent mechanical strength and rigidity, and can maintain stable performance even under high pressure difference or harsh working conditions.

3. Corrosion resistance and temperature resistance

The stainless steel material and its surface treatment technology ensure the long-term performance of the sintered mesh in acidic and alkaline environments and high temperature conditions.

4. Easy to clean and maintain

The porous structure of the sintered mesh is easy to clean and backwash, reducing maintenance costs and extending service life.

5. Flexibility and customization

The pore size, number of layers, materials, etc. can be adjusted according to specific application requirements to achieve customized design.

Application field

Perforated plate composite sintered mesh is widely used in water treatment, food and beverage, medicine, chemical industry, petroleum, mining, electronics, automobile manufacturing and other industries, including but not limited to:

- Water treatment system. Such as drinking water purification, wastewater treatment, seawater desalination, etc., to remove suspended matter, microorganisms and colloids in water.

- Food and beverage industry. Filter wine, juice, dairy products, etc. to ensure product purity and safety.

- Pharmaceutical manufacturing industry. Realize high-precision filtration and separation in drug purification and biological preparation production.

- Chemical and petrochemical industry. Play an important role in reaction medium filtration, gas purification, catalyst recovery, etc.

Manufacturing process

1. Pretreatment

The raw materials are cut, leveled, cleaned and other pretreatment steps to ensure a clean and flawless surface in preparation for subsequent processes.

2. Layer assembly

The perforated plate is used as the bottom layer, and metal wire meshes of different mesh sizes are laid on it in sequence according to the design requirements to form a multi-layer structure. The layers must be well aligned and leveled.

3. Sintering

The assembled multi-layer structure is placed in a sintering furnace and heated to a temperature below the melting point of the metal under vacuum or protective atmosphere. The diffusion and bonding between metal particles are used to form an integrated porous body. This process requires precise control of temperature, time and pressure to ensure uniform sintering of each layer to avoid deformation and structural damage.

4. Post-processing

The sintered composite mesh also needs to go through cutting, edge processing, surface treatment and other steps to achieve the final size requirements and surface finish. In some applications, heat treatment or chemical passivation treatment is also required to enhance its corrosion resistance.
