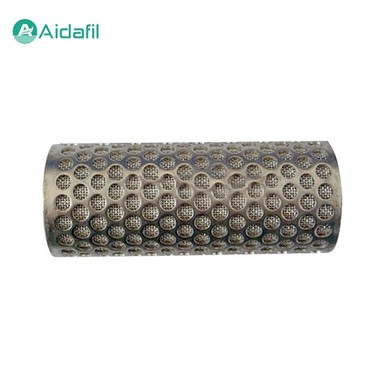

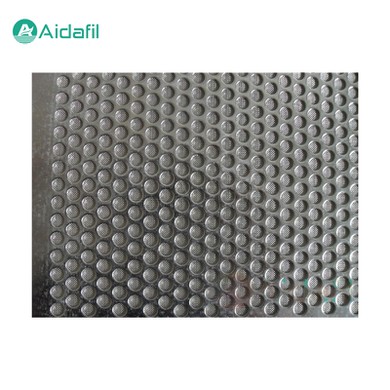

High Performance Perforated Plate Metal Sintered Mesh

The high performance perforated plate metal sintered mesh is a high-performance filter material that combines the strength of the perforated plate and the filtration performance of the flat mesh, and is made through a special sintering process. This material has a wide range of applications in many industrial fields.

Structural features

The high performance perforated plate metal sintered mesh is mainly composed of two layers: the perforated plate and the base flat woven mesh. The perforated plate is usually made of a metal plate through punching, and its aperture and hole spacing can be adjusted as needed. The perforated plate, as a supporting layer, provides the strength and stability of the sintered mesh. The base flat woven mesh is woven from metal wire, and its weaving method and wire diameter can be adjusted as needed to meet the requirements of different filtration accuracy.

During the manufacturing process, the perforated plate and the base flat woven mesh are combined together through a high-temperature sintering process. In this process, the metal wire melts at high temperature and fuses with the surface of the perforated plate to form a solid sintered layer. This structure makes the perforated plate metal sintered mesh have excellent compressive strength and mechanical strength, and can withstand greater pressure and impact.

Performance advantages

1. High compressive strength and mechanical strength

Since the perforated plate is used as the supporting layer, the perforated plate metal sintered mesh has high compressive strength and mechanical strength. This enables it to maintain stable performance in harsh working environments and is not easily deformed or damaged.

2. High filtration accuracy

The weaving method and wire diameter of the base flat weave mesh can be adjusted as needed to achieve different filtration accuracies. The filtration accuracy of the perforated plate metal sintered mesh can reach the micron level, which can effectively intercept tiny particles and impurities.

3. Good air permeability

Although the perforated plate metal sintered mesh has high filtration accuracy, its air permeability is still very good. This is because the weaving structure of the base flat weave mesh allows gas or liquid to pass through, while the perforated plate provides enough space for gas or liquid to flow.

4. Strong corrosion resistance

The perforated plate metal sintered mesh is usually made of corrosion-resistant materials such as stainless steel, so it has strong corrosion resistance. It can maintain stable performance in corrosive media such as acids and alkalis, and is not easily corroded or damaged.

5. Easy to clean and maintain

The surface of the perforated plate metal sintered mesh is flat and smooth, and it is not easy to accumulate dirt and impurities. When cleaning is required, just rinse with clean water or an appropriate cleaning agent. In addition, since the structure of the perforated plate metal sintered mesh is stable and not easy to damage, the maintenance cost is low.

Parameters

Application fields

The high performance perforated plate metal sintered mesh has a wide range of applications in many fields, including but not limited to the following aspects:

1. Gas filtration

In petrochemical, electric power, steel and other industries, perforated plate metal sintered mesh is used as a gas filtration material. It can effectively intercept tiny particles and impurities in the gas to ensure the purity and safety of the gas.

2. Liquid filtration

In food and beverage, pharmaceutical, water treatment and other industries, perforated plate metal sintered mesh is used as a liquid filtration material. It can remove suspended matter, particles and impurities in the liquid and improve the quality and purity of the liquid.

3. Catalyst support

In the chemical industry, perforated plate metal sintered mesh is used as a catalyst support material. It can provide sufficient support area and stability so that the catalyst can be evenly distributed on the mesh surface, thereby improving the reaction efficiency and product quality.

4. Gas distribution

In fluidized bed, gas dispersion and other processes, perforated plate metal sintered mesh is used as a gas distribution material. It can evenly distribute gas and prevent gas short circuit or accumulation, thereby improving the stability and efficiency of the process.

5. Other applications

Perforated plate metal sintered mesh can also be used in processes such as drying, dust removal, and demisting to meet the needs of different industries.
