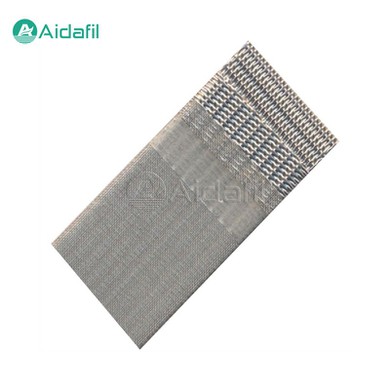

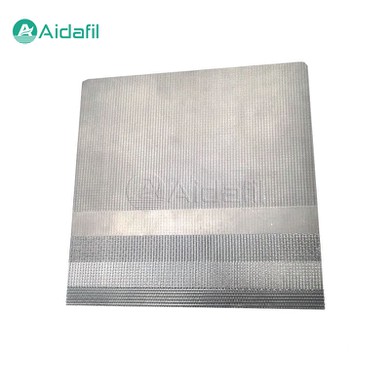

High Stability 5-Layer Sintered Mesh

The High Stability 5-Layer Sintered Mesh is a filter material made of multi-layer stainless steel woven mesh sintered at high temperature. This sintered mesh has high strength and stability, and can maintain good filtration performance in high temperature, high pressure and strong corrosion environments. It has the advantages of compact structure, high strength, corrosion resistance, high temperature resistance, wear resistance, etc., so it is widely used in chemical, petroleum, pharmaceutical, food and beverage, water treatment and other industries.

Structure and characteristics

The high stability 5-layer sintered mesh consists of such five layers of stainless steel braided mesh as protective layer, control layer, dispersion layer and support layers. Each layer of braided mesh has a different aperture and wire diameter. By high temperature sintering, the layers of braided mesh are tightly combined to form a whole. This structure makes the 5-layer sintered mesh have the following characteristics:

1. Efficient filtration performance

The 5-layer sintered mesh has uniform pore size distribution, which can effectively trap particles of different sizes. At the same time, due to the tight combination between the layers of woven mesh, particle penetration and leakage can be reduced, and filtration efficiency can be improved.

2. High strength and stability

The 5-layer sintered mesh is sintered at high temperature, so that the layers of woven mesh are tightly combined to form a whole. This structure makes the 5-layer sintered mesh have high strength and stability, and can maintain good filtration performance in high temperature, high pressure and strong corrosion environments.

3. Corrosion resistance

The 5-layer sintered mesh is made of stainless steel and has good corrosion resistance. It can resist the attack of a variety of chemicals, including acids, alkalis, salts, etc. Therefore, the 5-layer sintered mesh is suitable for handling fluids containing corrosive substances such as strong acids, alkalis, and salts.

4. High temperature resistance

The 5-layer sintered mesh can operate stably for a long time in high temperature environment. Its high temperature resistance makes it suitable for high temperature filtration applications, such as petrochemical, metallurgical and other industries.

5. Easy to clean and maintain

The surface of the 5-layer sintered mesh is smooth and flat, and it is not easy to scale. At the same time, due to the close combination between the layers of woven mesh, it can be easily cleaned and maintained. This reduces the operating and maintenance costs of the equipment.

Parameters

Application field

Due to the excellent filtration performance and corrosion resistance of high stability 5-layer sintered mesh, it is widely used in chemical, petroleum, pharmaceutical, food and beverage, water treatment and other industries. Specific applications are as follows:

1. Chemical industry

In the chemical production process, various liquids or gases containing solid particles need to be handled. The 5-layer sintered mesh can effectively remove these particles, ensuring product quality and safe production.

2. The oil industry

In the process of oil extraction and refining, crude oil containing oil sands and impurities needs to be treated. The 5-layer sintered mesh can remove these impurities and improve the quality and yield of crude oil.

3. Pharmaceutical industry

In the pharmaceutical production process, it is necessary to ensure the purity of raw materials and products. The 5-layer sintered mesh can remove impurities and bacteria from raw materials to ensure the safety and effectiveness of drugs.

4. Food and beverage industry

In the food and beverage production process, it is necessary to ensure the hygienic quality of raw materials and products. The 5-layer sintered mesh can remove impurities and microorganisms in raw materials to ensure the safety and taste of food and beverages.

5. Water treatment industry

In the process of water treatment, it is necessary to remove impurities such as suspended solids, microorganisms and organic matter in the water. The 5-layer sintered mesh can effectively remove these impurities and provide clean water sources.

Use precautions

When using a high stability 5-layer sintered mesh, the following points should be taken into account:

1. Regularly check whether the filtration performance of the sintered net is up to standard during use. If the filtration effect is found to be degraded or damaged, it should be replaced or repaired in time.

2. Use neutral detergent and a soft brush to gently wipe the surface of the sintered mesh when cleaning. Avoid cleaning with corrosive substances such as strong acids and alkalis to avoid damage to the sintered mesh structure.

3. When storing, place the sintered mesh in a dry and ventilated place to avoid humid and high temperature environments affecting its service life and performance. At the same time, pay attention to avoid contact with sharp objects to prevent scratches or deformation.
