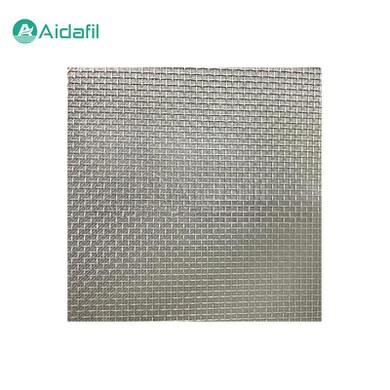

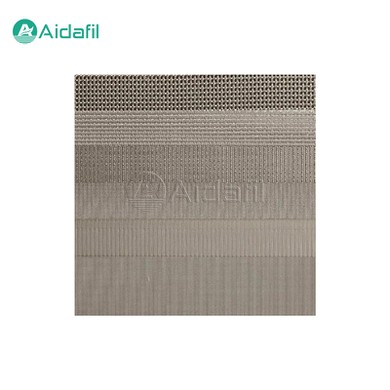

Stainless Steel Multi-Layer Sintered Mesh

The stainless steel multi-layer sintered mesh is a filter material made by stacking multi-layer stainless steel wire mesh layer by layer and sintering at high temperature through a special process.

Stainless steel multi-layer sintered mesh usually uses high-quality stainless steel such as 304 or 316L as raw materials. These materials not only have excellent corrosion resistance, but also can maintain good mechanical properties under high temperature and high pressure environment. 304 stainless steel is suitable for general corrosive environment, while 316L has better corrosion resistance for chloride solution and marine environment because of the addition of molybdenum element.

Feature Analysis

1. High-efficiency filtration performance

The filtration accuracy of stainless steel multi-layer sintered mesh can range from micron to nanometer, which can effectively remove impurities in liquid or gas, such as particles, suspended matter, microorganisms, etc., to meet the high-standard filtration requirements of different industries.

2. Strong durability

Thanks to the corrosion resistance and high-temperature stability of stainless steel, the stainless steel multi-layer sintered mesh can still maintain good performance and long service life under harsh conditions such as acid and alkali environments, high temperature and high pressure.

3. Design flexibility

The number of mesh layers, wire diameter, mesh size and other parameters can be adjusted according to specific application requirements to achieve customized filtration solutions.

4. Easy to maintain

The stainless steel multi-layer sintered mesh is easy to clean. Chemical cleaning, ultrasonic cleaning, backwashing and other methods can be used to restore filtration efficiency. Some products even support recycling, which greatly reduces operating costs.

Application Areas

Stainless steel multi-layer sintered mesh is widely used in many industries:

1. Water treatment

Drinking water purification, wastewater treatment, seawater desalination, etc., effectively remove suspended matter, bacteria and viruses in water.

2. Petrochemical

Oil and gas extraction, refining, petrochemical product filtration, improve product quality and production safety.

3. Food and beverage

Filtration of beer, beverages, and dairy products to ensure product purity and taste.

4. Medicine and health

Filtration of raw materials and solvents in the pharmaceutical process, as well as the preparation of sterile air.

5. Environmental protection

Air purification, flue gas desulfurization, waste gas treatment, and reduction of pollutant emissions.

6. Electronics industry

In high-precision manufacturing industries such as semiconductors and liquid crystal displays, it is used for chemical reagent filtration and ultrapure water preparation.

Parameters

Design and Selection Considerations

When selecting stainless steel multi-layer sintered mesh, the following key factors should be considered:

- Filtration accuracy. Determine the required mesh size based on actual filtration requirements, usually in microns (μm).

- Flow and pressure drop. Evaluate the system flow requirements and the maximum allowable pressure drop, and select the appropriate mesh structure and material to balance filtration efficiency and energy consumption.

- Working environment. Consider the chemical properties of the medium (such as acidity and alkalinity), temperature, pressure and other factors, and select the appropriate stainless steel material.

- Cleaning and maintenance. According to the characteristics of the filter medium and the operating cycle, choose a product design that is easy to clean and maintain.

Maintenance

Proper maintenance can extend the service life of stainless steel multi-layer sintered mesh:

- Regular inspection. Monitor the filtration efficiency and promptly detect and replace the filter that has reached the end of its life.

- Clean properly. Choose the appropriate cleaning method according to the degree of contamination of the sintered mesh and the characteristics of the medium, and pay attention to avoid physical damage.

- Storage conditions. Unused sintered meshes should be stored in a dry, ventilated environment without corrosive gases to avoid deformation or corrosion.
