Top Quality Robust Perforated Plate Composite Mesh

The top quality robust perforated plate composite mesh is a filter material that combines the advantages of both perforated plate and sintered mesh technologies to improve filtration efficiency, enhance mechanical strength, and adapt to more complex filtration requirements.

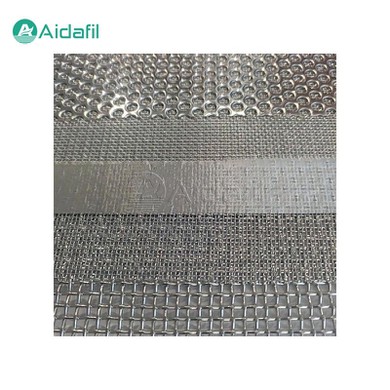

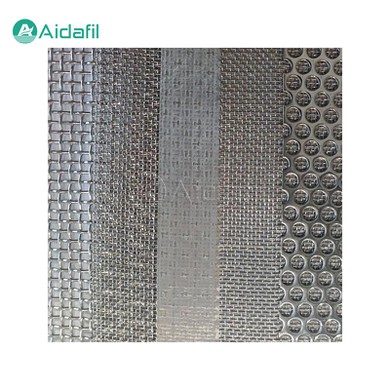

The top quality robust perforated plate composite mesh is a composite of a perforated plate of standard material (usually a round-hole or square-hole design) and a multi-layer square hole mesh or dense mesh through a sintering process. This design combines the mechanical strength of the perforated plate and the high filtration accuracy of the sintered mesh to form a filtration medium that is both strong and efficient.

1. Perforated plate

It is usually made of metal sheets (such as stainless steel, aluminum, low carbon steel, etc.) through a mechanical stamping process to form a series of regular or irregular holes. The characteristics of perforated plates are diverse hole shapes, controllable opening rates, good mechanical stability and durability, and are suitable for occasions that require certain structural support or have specific permeability characteristics.

2. Sintered mesh

It is a porous material made by processing metal fibers through a high-temperature sintering process. This process can make the material reach a state close to complete density, or form a porous body with a certain porosity. Sintered mesh has the characteristics of high precision, good filtration effect, and strong corrosion resistance, and is suitable for the field of precision filtration.

3. Perforated plate composite mesh

Combining perforated plate with sintered mesh can design a composite material that has both the high strength and structural stability of perforated plate and the high filtration accuracy and good filtration performance of sintered mesh. This composite structure can be adjusted according to specific application requirements, such as covering one or more layers of precision sintered mesh on the basis of perforated plate to achieve a finer filtration level while maintaining good mechanical strength and durability. This filter material is commonly used for liquid or gas filtration in the fields of chemical, petroleum, pharmaceutical, food processing, water treatment, etc., as well as complex working conditions that need to meet both filtration accuracy and mechanical strength requirements.

Performance characteristics

1. Air permeability and pressure difference

The filter material has good air permeability and can maintain a stable flow rate even under high pressure difference, which helps to improve filtration efficiency and reduce energy consumption.

2. Filtration accuracy

Due to the multi-layer structure design, the composite mesh can achieve extremely high filtration accuracy, is suitable for removing tiny particles, and is suitable for precision filtration needs.

3. Backwashing performance

It has excellent backwashing characteristics, is easy to maintain and reuse, and reduces operating costs.

4. Mechanical strength

Combined with the mechanical support of the perforated plate, the entire filter material can still maintain structural stability under high pressure or vibration environment.

Material selection

Common materials include stainless steel (such as 304, 316L), but special materials such as monel alloy, duplex steel, titanium alloy, etc. can also be customized according to the specific application environment to meet specific requirements such as corrosion resistance and high temperature resistance.

Parameters

Application areas

1. Water treatment

It is widely used in drinking water treatment, wastewater treatment and seawater desalination, etc., to effectively remove suspended matter, bacteria and other impurities in water.

2. Food and beverage

In the food processing and beverage industry, it is used for raw material filtration, clarification and sterilization to ensure product safety and quality.

3. Chemical and pharmaceutical

In the production of chemicals and pharmaceuticals, it is used to filter reaction liquids, protect equipment from contamination, and meet strict hygiene standards.

4. Metallurgy and mining

In the links of slurry filtration and gas purification, it provides reliable filtration solutions to improve production efficiency and product quality.

Customized service

As a manufacturer, we can design and produce perforated plate composite mesh of specific specifications according to the specific working conditions of customers, such as fluid properties, filtration accuracy requirements, working pressure and temperature, etc., to meet the personalized needs of different industries.
