Single Protective Mesh Sintered Wire Mesh

Name: Single Protective Mesh Sintered Wire Mesh
Brand: AIDA
SKU: 240468138

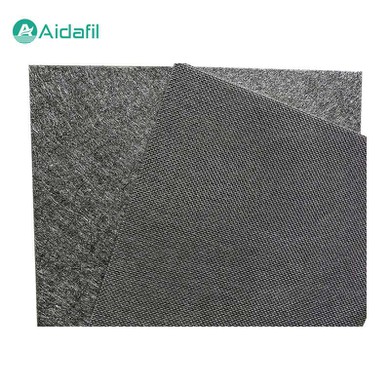

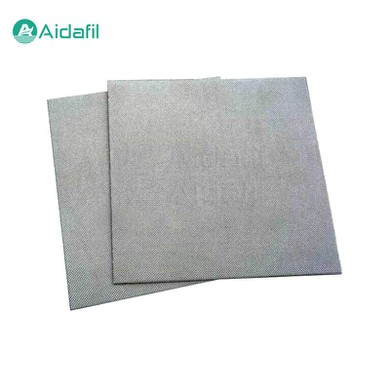

The single protective mesh sintered wire mesh uses high-quality metal fibers as the main raw material and is made by non-woven paving. After the non-woven laying is completed, a layer of stainless steel wire mesh will be laid on it, and then they will be fixed and formed together by high temperature sintering.

Product Details

The single protective mesh sintered wire mesh is a filter material made of extremely fine metal fibers after being laid on non-woven, stacked and sintered at high temperature.

Material properties

1. Material composition

The single protective mesh sintered wire mesh is usually made of a variety of metal or alloy fibers, which not only provide excellent chemical stability, but also ensure high strength and durability of the product. Common metal materials include stainless steel and titanium alloys.

2. The characteristics of the fiber

The metal fibers used to make the single protective mesh sintered wire mesh have a diameter of microns, which allows the final product to achieve high filtration accuracy while maintaining high porosity.

Production process

1. Material selection

The single protective mesh sintered wire mesh uses high-quality metal fibers as the main raw material and is made by non-woven paving. Non-woven paving is a technology different from traditional textiles, which allows metal fibers to be more evenly distributed and achieve a better pore structure at the microscopic level.

2. Sintering

After the nonwoven laying is completed, a layer of stainless steel wire mesh is laid on it, and then they are fixed and formed together by high temperature sintering. This step of high temperature sintering is the key to forming a single protective mesh sintered wire mesh, which not only ensures the physical properties of the product, but also improves its long-term durability and stability.

Product features

1. High filtration accuracy

Due to the uniform distribution and fine structure of the metal fibers in the single protective mesh sintered wire mesh, it has high filtration accuracy, capable of capturing extremely fine particles, and ensuring the purity of the filtered material.

2. Corrosion resistance

The single protective mesh sintered wire mesh has strong corrosion resistance and can be used in harsh environments such as acid and alkali and organic solvents, making it less susceptible to damage. This makes it widely used in industries that require high corrosion resistance, such as the chemical industry.

3. Penetration and toughness

The single protective mesh sintered wire mesh has high porosity and excellent penetration rate, which not only ensures a large filtration flow, but also reduces the pressure loss during material filtration. At the same time, its strong toughness and plasticity ensure adaptability and durability in different use scenarios.

4. High mechanical strength and stability

The nature of the metal gives the single protective mesh sintered wire mesh good mechanical strength, making it not easily damaged or deformed under high pressure.

Parameters

Filter precision (μm)	Bubbling point pressure (pa)	Air permeability (L/min, dm2, kpa)	Porosity (%)	Containment capacity (mg/cm²)	Thickness (mm)	Fracture strength (Mpa)
Filter precision (μm)	Basic value	Basic value	Basic value	Basic value	Basic value	Basic value
5	6800	47	75	5	0.3	32
7	5200	63	76	6.5	0.3	36
10	3700	105	75	7.8	0.37	32
15	2450	205	79	8.6	0.4	23
20	1900	280	80	15.5	0.48	23
25	1550	355	80	19	0.62	20
30	1200	520	80	26	0.63	23
40	950	670	78	29	0.68	26
60	630	1300	85	36	0.62	28
Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%	Deviation of 10%

Product application

1. Chemical industry

In the chemical industry, the single protective mesh sintered wire mesh is used to filter catalysts, raw materials, or finished products in chemical reactions to ensure the purity and quality of chemical products.

2. Food processing industry

In food processing, the single protective mesh sintered wire mesh is used to clarify and purify liquid foods, such as beverages and cooking oils, to remove impurities and ensure food safety.

3. Pharmaceutical production

In pharmaceutical production, the single protective mesh sintered wire mesh is used to ensure the high purity of pharmaceutical raw materials and to filter out insoluble particles during the production of injectable and liquid pharmaceutical products.

4. Dust prevention and dust removal field

In dust prevention and dust removal, the single protective mesh sintered wire mesh is mainly used for the filter components of air purifiers, vacuum cleaners and other equipment to effectively filter out particulate matter in the air and ensure air quality.
