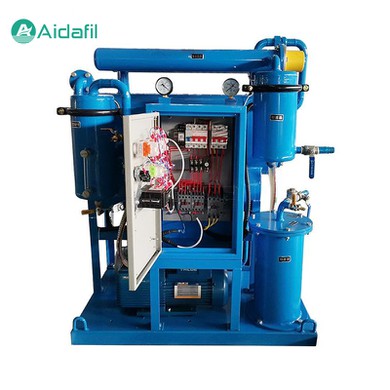

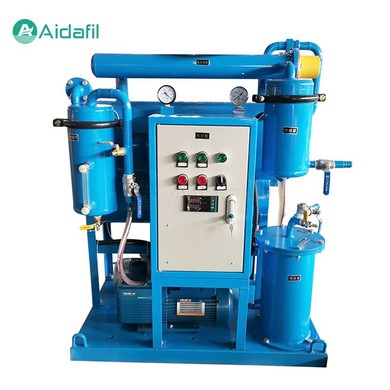

High Efficiency Vacuum Dehydration Oil Purification Machine

The high efficiency vacuum dehydration oil purification machine applies the principles of vacuum dehydration and multi-stage filtration to restore contaminated oil to its original properties. By creating a vacuum environment, the machine lowers the boiling point of water, enabling it to evaporate at significantly lower temperatures compared to atmospheric conditions.

The high efficiency vacuum dehydration oil purification machine can handle high flow rates and process large volumes of oil effectively. The machine is equipped with a highly efficient heating system that can raise oil temperature quickly to the required level for effective purification. It also has a multi-stage filter element design that ensures that the purified oil meets or exceeds industry standards for oil purity.

The high efficiency vacuum dehydration oil purification machine's design makes it easy to use and maintain. It is fully automated, and operators can easily set up the machine and monitor the oil purification process through a touch screen interface. The machine also has built-in safety features such as alarms and automatic shut-off systems that protect both the operator and the machinery.

Product Parameters

Key Components and Working Principle

1. Vacuum chamber – At the heart of the machine lies the vacuum chamber where the oil is subjected to low pressure. This reduces the boiling point of water and other impurities, facilitating their separation from the oil.

2. Heating system – Integrated heating elements gently heat the oil, further promoting the evaporation of water and other volatile contaminants while maintaining the integrity of the oil.

3. Vacuum pump – A high-efficiency vacuum pump creates and maintains the vacuum within the chamber, ensuring optimal conditions for dehydration.

4. Filtration system – Multi-stage filters, including fine and coarse filters, capture solid particles like dirt, rust, and metal shavings. Some models also include a precision filter stage for removing ultra-fine contaminants.

5. Condensate separator – Evaporated water and gases are captured by a condenser and then separated in a separator tank. Clean, dry oil is then returned to service.

6. Automatic control system – Modern machines come with intelligent control systems that monitor and regulate the purification process, ensuring consistent performance and safety.

Application

The high efficiency vacuum dehydration oil purification machine finds widespread application across various industries for treating transformer oils, turbine oils, hydraulic oils, gear oils, and engine oils.

The high efficiency vacuum dehydration oil purification machine is an excellent investment for any industry that relies on oil for production, including power plants, oil refineries, chemical industries, and many others. By using this innovative machine to maintain oil purity, industries can enjoy several benefits, including increased productivity, improved machinery performance, reduction in oil consumption, and reduced system downtime.

Maintenance Tips

To ensure the continued optimal performance of the high efficiency vacuum dehydration oil purification machine, it is essential to maintain the machine regularly. Some maintenance tips include:

1. Regular inspections – Regular inspections of the machine help identify potential issues that could affect its performance. This is particularly crucial after prolonged usage.

2. Cleaning – Cleaning the machine regularly ensures that it is free from any dirt or debris that could clog the system.

3. Lubrication – Regular lubrication of the machine's moving parts ensures that they operate smoothly and efficiently.

4. Replacement of filters – Filters in the machine should be monitored and periodically replaced to ensure that they do not become blocked.

FAQ

1. What is an oil purifier, and how does it work?

An oil purifier is a device designed to remove impurities and contaminants from used oil, making it suitable for reuse or safe disposal. It works by passing the oil through various filtering elements, which trap the particles and impurities while allowing clean oil to pass through.

2. What types of oils can be filtered using an oil purifier?

Oil purifiers can be used to filter various types of oils, including the transformer oil, turbine oil, lubricating oil, hydraulic oil.

3. Can I dispose of the filtered oil safely?

Yes, once the oil has been filtered, it can be disposed of safely, provided that it meets the local regulations and guidelines for waste oil disposal. Be sure to check with your local authorities or waste management companies to determine the proper procedures for disposing of filtered oil in your area.

4. Is it cost-effective to invest in an oil purifier?

Investing in an oil purifier can be cost-effective in the long run, as it allows you to reuse filtered oil, reducing the need for frequent oil changes and the associated costs. Moreover, maintaining clean oil helps extend the life of equipment and reduces the likelihood of costly repairs due to premature wear and tear.

Why choose us

· Professional manufacturer with many years' experience

· Good quality with competitive price

· OEM & ODM are welcome

· Various payment items are acceptable

· Good service by experienced manager

Enterprise tenet: Honest first, quality foremost

Operation belief: Establishment of AIDA brand and satisfaction of users are our persistent pursuit.

Service tenet: Responsible for every procedure; responsible for every machine; responsible for every customer.
